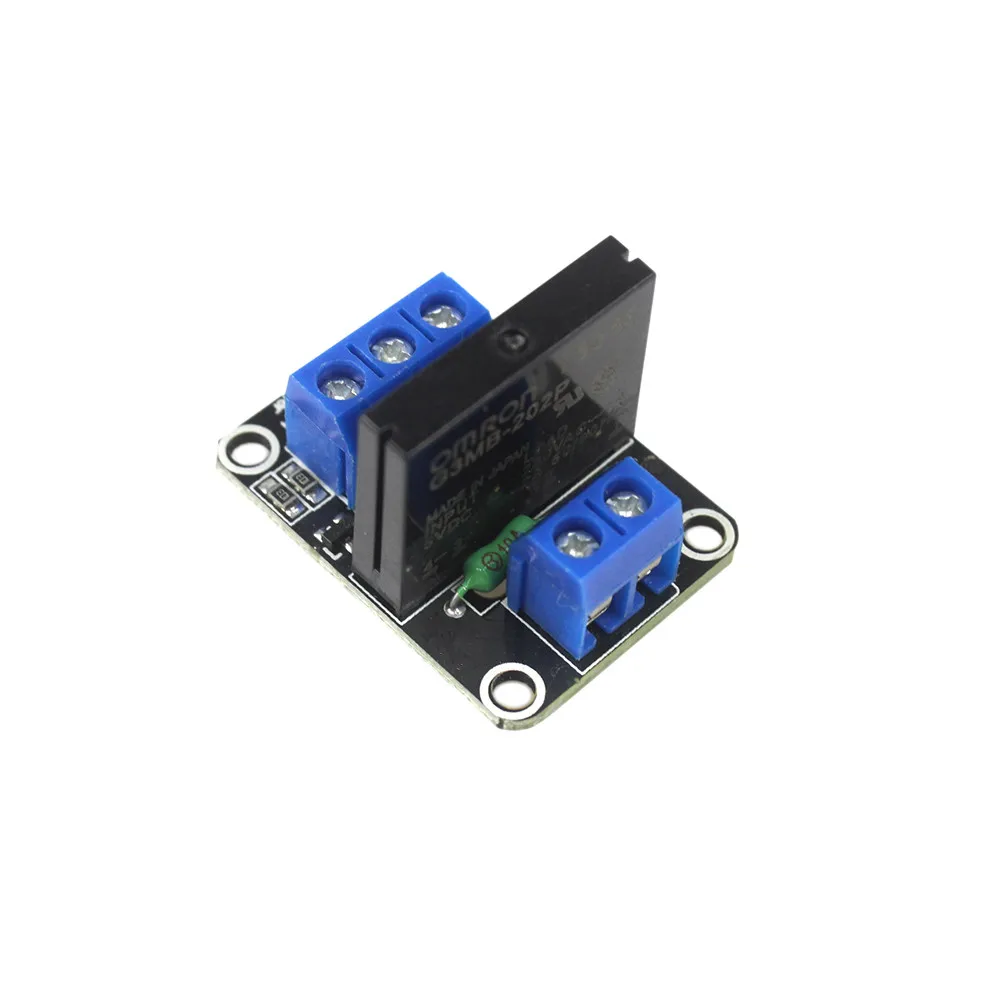

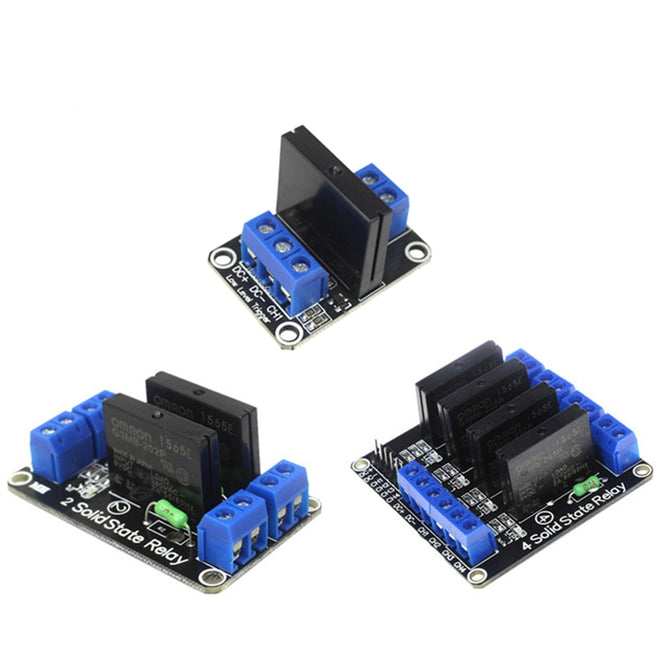

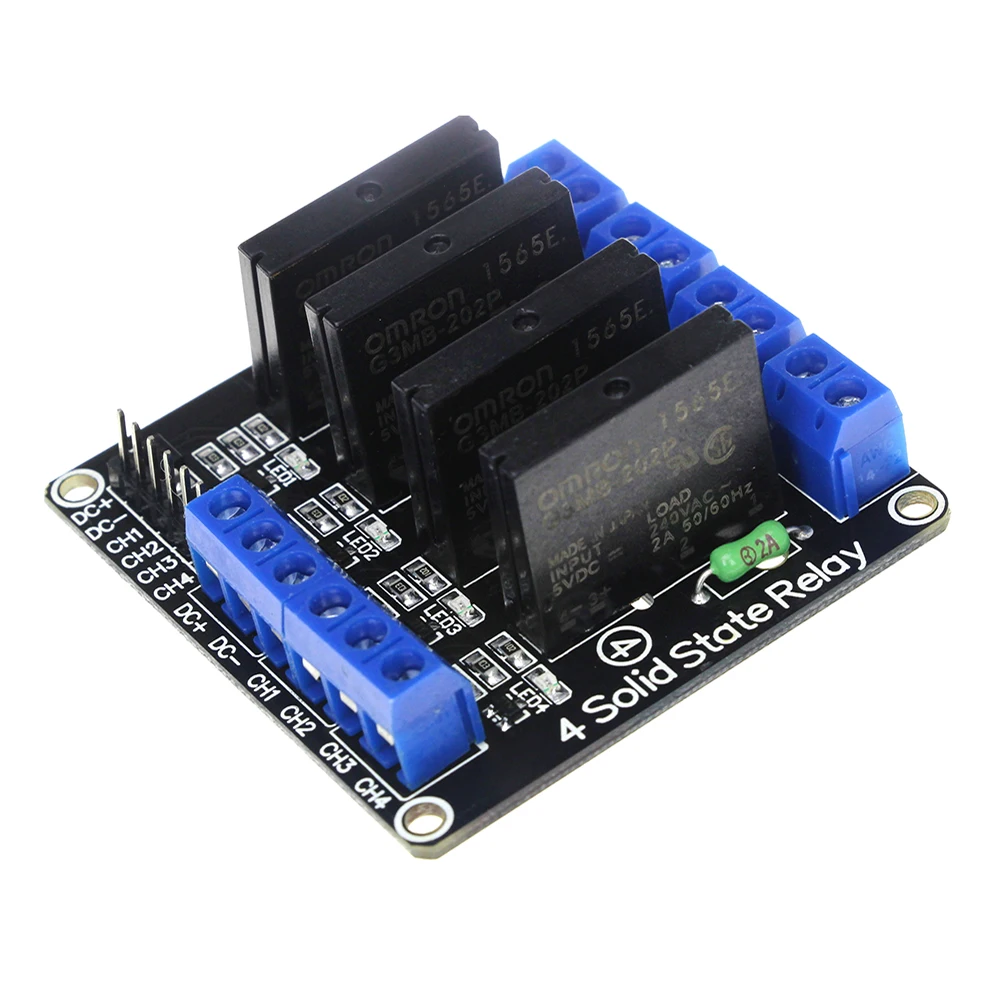

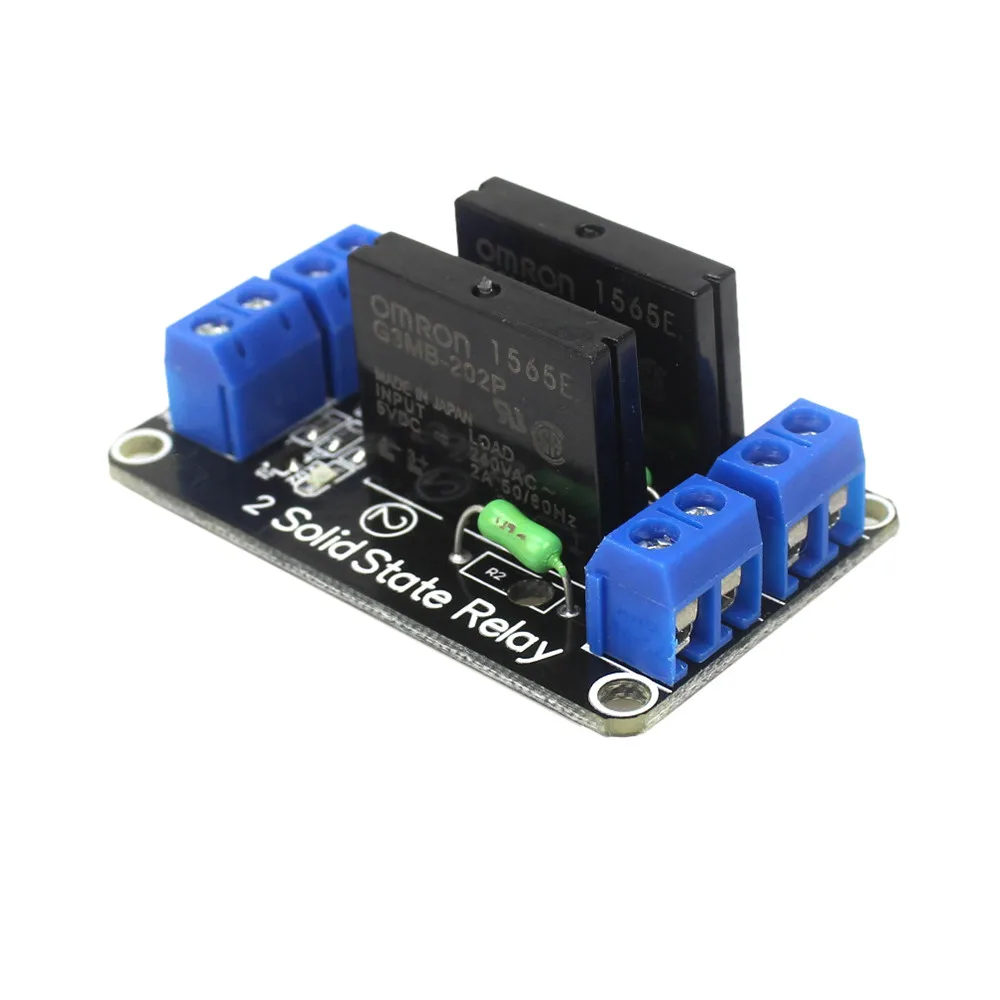

Smart Electronics 1/2/4 Channel 5V DC Relay Module Solid State Low Level G3MB-202P Relay SSR AVR DSP for arduino Diy Kit
: In stock
: ai204578rs
Purchase Notes
1. The two logistics of Yanwen Economic Air Mail and China Post Ordinary Small Packet Plus do not have tracking information, so there is no time limit. We recommend using China Post Registered Air Mail or AliExpress Standard Shipping.
2. We do not accept refunds for minor damage (pin bending, slight screen abrasion,etc.)during the transit of the material, without affecting normal use. If you mind,please do not buy.
3. Some products provide technical support, if you need help, please contact us, we will handle your message the first time.
4. If you have any questions about the product, please contact us before you open a dispute. We will give you the most satisfactory answer.
5. We provide each customer with good quality products, very favorable prices and the most sincere service. We hope to get your good feedback.
Wish you a pleasant shopping!
- 5V solid state relays 240V 2A, output with resistive fuse 240V 2A.
- Input power supply: 5V DC (160MA)
- Input control signal voltage:
- (0-2.5V low state relay OFF)
- (3.3-5V state high relay ON)
- Blue KF301 terminal connection control line is more convenient.
- Module interface:
- DC +: positive power supply (by relay voltage power supply)
- DC-: connect power negative
- CH: Relay Module signal triggering end (Low level trigger effective)
-
Note: Power must be DC voltage and need to be consistent with the voltage relay
- 1, the use of solid state relays, output with a resistive fuse 240V 2A.
- 2, Size: 55 * 33 * 25 (L * W * H)
- 3, input power: 5V DC (160MA)
- 4, the input control signal voltage:
- (0-1.5V state low level relay ON)
- (2.5-5V state high level relay OFF)
-
5, blue KF301 terminal access control line more convenient.
- 5V solid state relay 240V 2A, output with resistive fuse 240V 2A
- Size: 24*32*21mm/0.94*1.25*0.82”
- Input Power: 5V DC (160mA)
- Input control signal voltage:
- (0-2.5V state low relay OFF)
- (3-5V state high relay ON)
- Input section:
- DC +: positive power supply (by relay voltage power supply)
- DC-: connect power negative
- CH: relay module signal to trigger the end (high level trigger effective)
- Voltage version 5V
- Static current 0mA
- Working current 12.5mA
- Trigger voltage 3.3-5V
-
Trigger current 2mA
