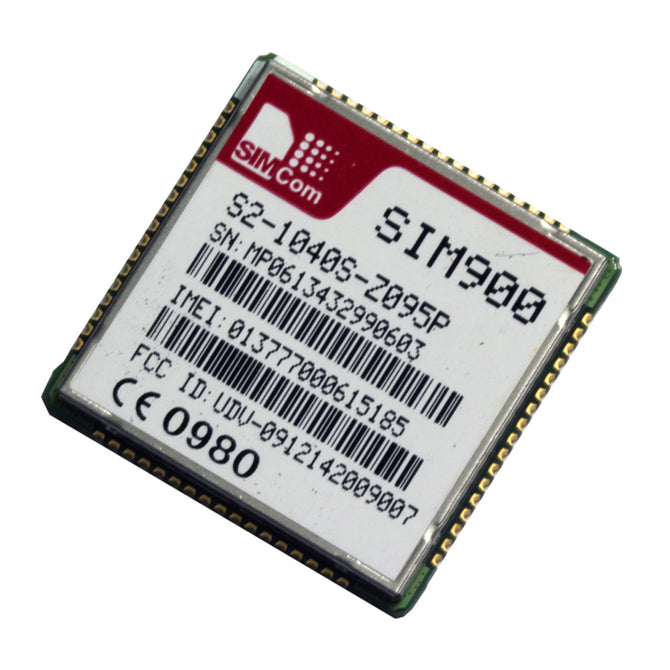

Simcom SIM900 GSM / GPRS Module Quadband 850 / 900 / 1800 / 1900 MHz for Arduino GPRS Module - Green

Simcom SIM900 GSM / GPRS Module Quadband 850 / 900 / 1800 / 1900 MHz for Arduino GPRS Module - Green

US$ 15.39 US$ 18.99

: In stock

: 297027

Brand Simcom Model SIM900 Quantity 1 Piece Color Green Material CCL + PCB board Chipset SIM900_V2.03 English Manual / Spec No Other Features Supply Voltage Range: 3.2~4.8V; Operation Temperature: -40C~+85C;...
Brand Simcom
Model SIM900
Quantity 1 Piece
Color Green
Material CCL + PCB board
Chipset SIM900_V2.03
English Manual / Spec No
Other Features Supply Voltage Range: 3.2~4.8V; Operation Temperature: -40C~+85C; Dimensions: 24mm x 24mm x 3mm; Weight: 3.4g; Module interface: 68-Pin SMD; Quad-Band: 850/ 900/ 1800/ 1900MHz; Low power consumption: 1.0mA (sleep mode); Certificates: CE / FCC / RoHS / PTCRB / GCF / IC / ICASA / REACH; Carrier Approvals: AT&T / NCC / Anatel / Rogers / Orange / Vodafone; General features: Quad-Band 850/ 900/ 1800/ 1900MHz; GPRS multi-slot class 10/8; GPRS mobile station class B; Compliant to GSM phase 2/2+; Class 4 (2 W @850/ 900MHz); Class 1 (1 W @ 1800/1900MHz); Dimensions: 24 x 24 x 3mm; Weight: 3.4g; Control via AT commands (GSM 07.07, 07.05 and SIMCOM enhanced AT Commands); SIM application toolkit; Supply voltage range: 3.2~4.8V; Low power consumption: 1.0mA (sleep mode); Operation temperature: -40C~+85C; Specifications for Fax: Group 3, class 1; Specifications for Data: GPRS class 10: max. 85.6 kbps (downlink); PBCCH support; Coding schemes CS 1, 2, 3, 4; CSD up to 14.4 kbps; USSD; Non transparent mode; PPP-stack; Specifications for SMS via GSM/GPRS; Point to point MO and MT; SMS cell broadcast; Text and PDU mode; Software features; 0710 MUX protocol; Embedded TCP/UDP protocol; FTP/HTTP; Special firmware: FOTA; MMS; Java (cooperate with Iasolution); Embedded AT; Specifications for Voice: Tricodec; Half rate (HR); Full rate (FR); Enhanced Full rate (EFR); Hands-free operation; (Echo suppression); AMR; Half rate (HR); Full rate (FR); Interfaces: Interface to external SIM 3V / 1.8V; Analog audio interface; RTC backup; SPI interface (option); Serial interface; Antenna pad; I2C; GPIO PWM; ADC; Compatibility: AT cellular command interface; Certificates: CE / FCC / RoHS / PTCRB / GCF / IC / ICASA / REACH; Carrier Approvals: AT&T / NCC / Anatel / Rogers / Orange / Vodafone
Certification RoHS
Packing List 1 x SIM900 Board
