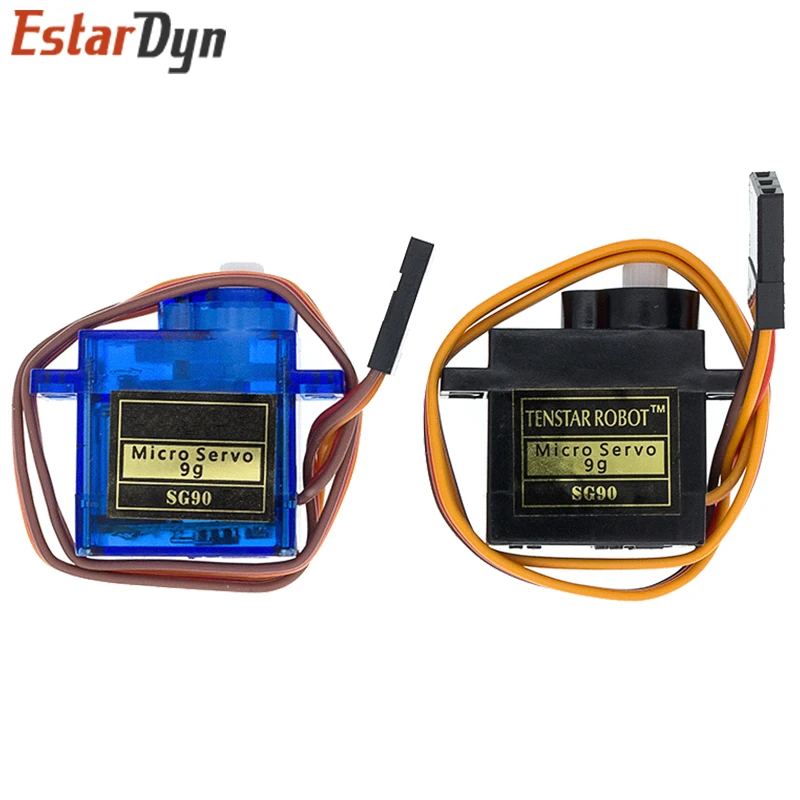

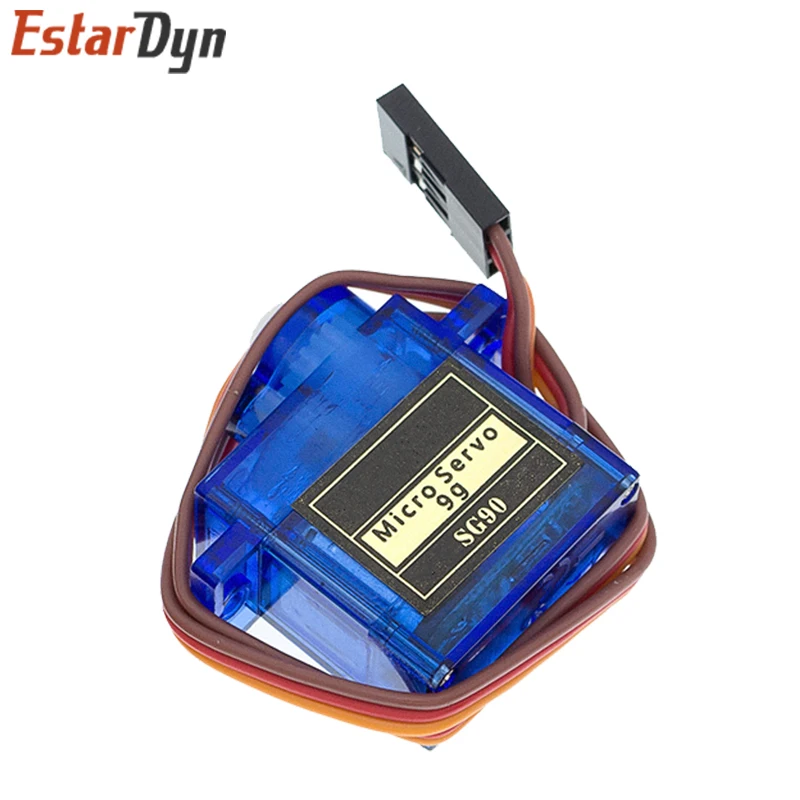

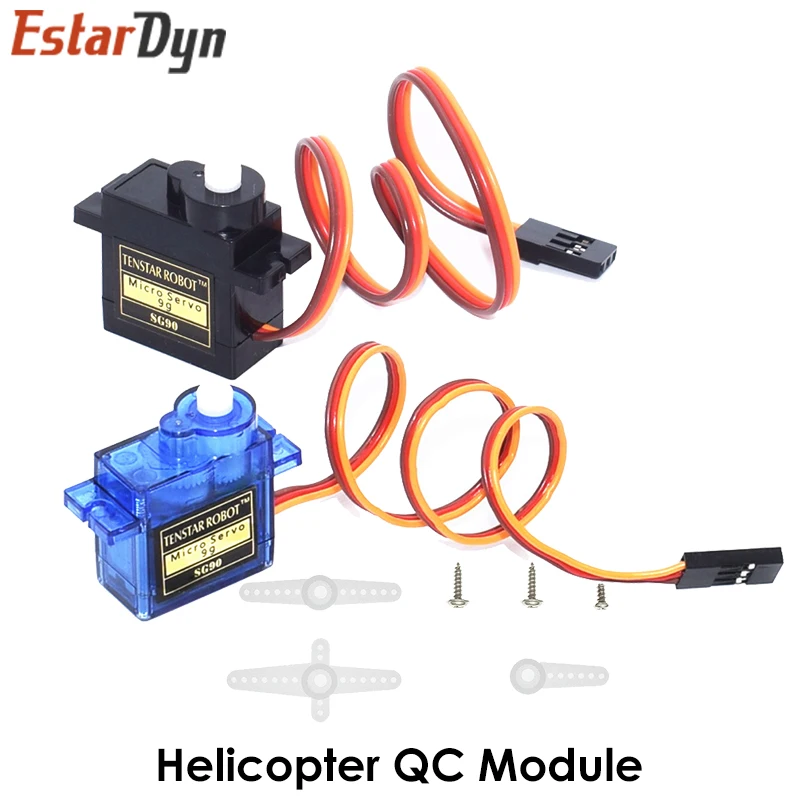

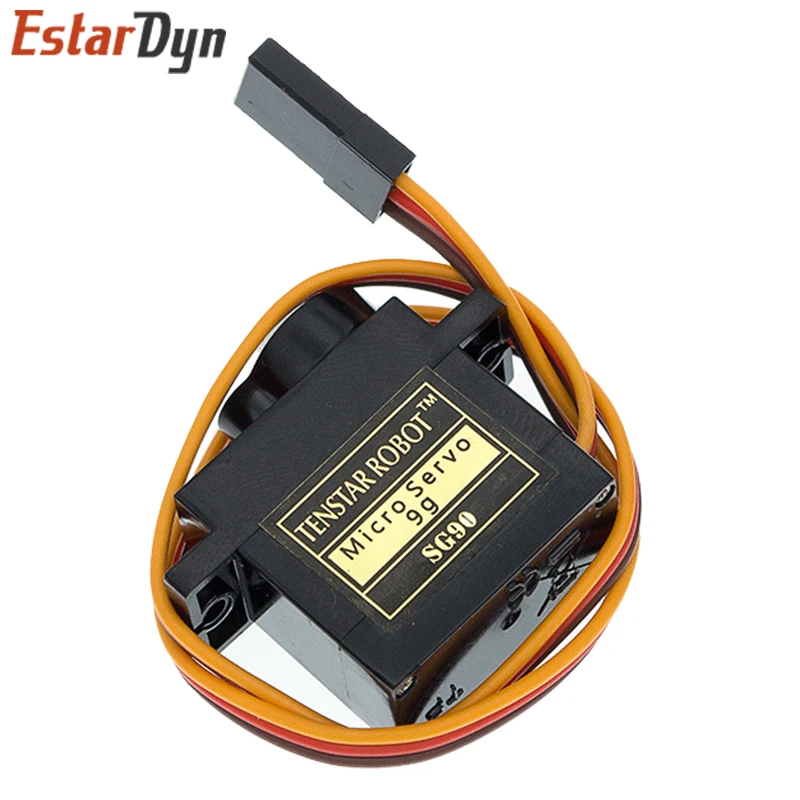

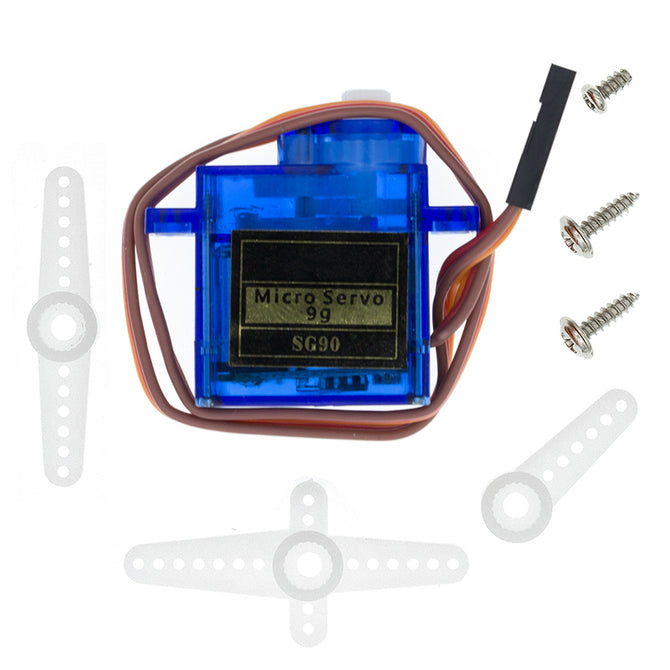

SG90 Pro 9g Micro Servo for Airplane Aeroplane 6CH rc Helcopter kds esky align Helicopter sg90

                                 Products Specifcation

Products No.

Item

Specifcation

Storage Temperature Range

-30°C～80°C

Operating Temperature Range

-25°C～70°C

Item

Specifcation

Temperature Range

-25°C～70°C

Humidity Range

65%±10%

Item

Specifcation

Size

22.4*12.5*22.8mm

Weight

10g±5%

Gear type

5 Plastic,

Limit angle

200°±5°

Bearing

NO

Horn gear spline

20T     直径:4.9mm

 Horn type

Plastic, POM

Case

Engineering plastics(PBT)

Connector wire

250mm±5mm

Motor

Carbon brush motor

Splash water resistance

No

Operat voltage

4.8V

Idle current

mA

No load speed

0.09sec/60°

Runnig current

90mA

Peak stall torque

1.3kg.cm

Stall current

750mA±10%

Item

Specifcation

Command signal

Pulse width modification

Amplifier type

Analog controller

Pulse width range

500～2500usec

Neutral position

1500usec

Running degree

180°±3°(when 500～2500usec)

Dead band width

8 usec

Rotating direction

Counterclockwise (when 1000～2000usec)
