SG90 MG90S MG945 MG946 MG995 MG996 Servo Metal Gear for Model Helicopter Boat For Arduino UNO DIY MG946R MG996R

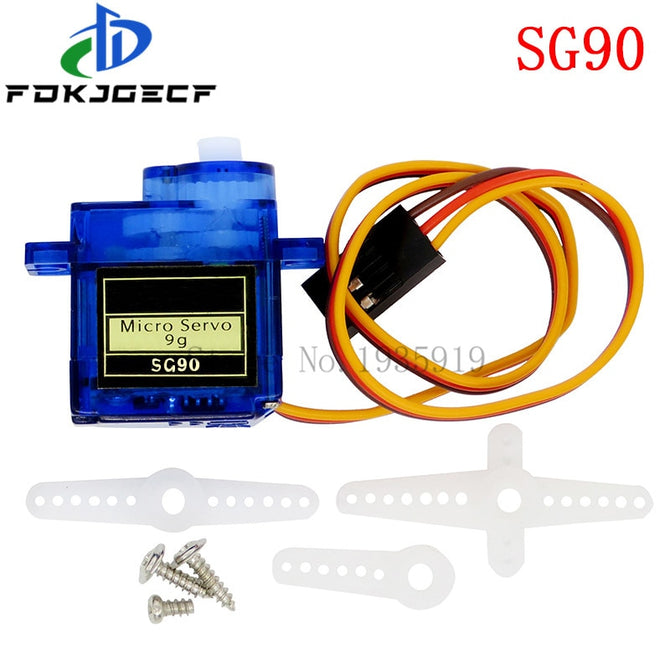

SG90

Technical data given by the manufacturers:
Size: 21.5mmX11.8mmX22.7mm
Weight: 9 grams
No-load speed: 0.12 seconds / 60 degrees (4.8V)
Stall torque of 1.2 - 1.4 kg / cm (4.8V)
Operating temperature: -30 to +60 degrees Celsius
Dead-set: 7 microseconds
Operating voltage: 4.8V-6V



MG90S

For: Mini Car / Mini Ship / Helicopter & Airplane

Weight: 12G

Speed: 4.8V&0.10sec/60 degrees; 6.0V&0.09sec/60 degree

Torque: 4.8V&1.6KG-cm; 6.0V&1.8kg-cm

Voltage: 4.8V6.0V

Connector Wire Length 250mm

Dimension: 22.6mm x 12.1mm x 22.5mm

Dead Band Width: 5 usec

Interface Specifications: JR / FP General

Accessories: Multi-arm, fixing screws

Scope: Helicopters KT, fluttering, gliding, small robots, and other models

Recommend Model: Mini Car / Mini Ship / Helicopter & Airplane



MG995

Features:

Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...

Great for truck, Boat, Racing Car, Helicopter and Airplane.

Power Supply: Through External Adapter.

Connector Wire Length 300mm



Specification:

Dimension : 40mm x 19mm x 43mm

Original box: NO

Net weight: 66g

Package weight: 76g

Color: Black

Operating Speed : 0.17sec / 60 degrees (4.8V no load)

Operating Speed : 0.13sec / 60 degrees (6.0V no load)

Stall Torque : 13 kg-cm (180.5 oz-in) at 4.8V

Stall Torque : 15 kg-cm (208.3 oz-in) at 6V

Operation Voltage : 4.8 - 7.2Volts

Gear Type: All Metal Gears

Connector Wire: Heavy Duty, 11.81\\\" (300mm)



MG996

Features:

Gear Type: All Metal Gears

Stall torque:12kg/cm(6V)

Power Supply: Through External Adapter

Operation Voltage : 4.8 - 7.2 V

Temperature range: 0'C to 55‘C

Operating Speed: 0.17sec / 60 degrees (4.8V no load)

Operating Speed: 0.13sec / 60 degrees (6.0V no load)

Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...

Stable and Shock Proof.

Connector Wire:Length 300mm

Great for truck, Boat, Racing Car, Helicopter and Airplane



Specifications:

Connector wire length:300 mm

Package Dimension: 54 x 38 x 20 mm

Net weight:66 g

Package weight:76 g

Color: Black



MG946

• Dimension: 40.7x19.7x42.9mm

• Stall torque: 10.5kg/cm(4.8V)13kg/cm(6V)

• Operating voltage: 4.8-7.2V

• Operating speed: 0.20sec/60degree(4.8v)  0.17sec/60degree(6.0v)

• Temperature range: 0 --55

• Dead band width: 10us .

• Power Supply: Through External Adapter

• Weight: 55g
