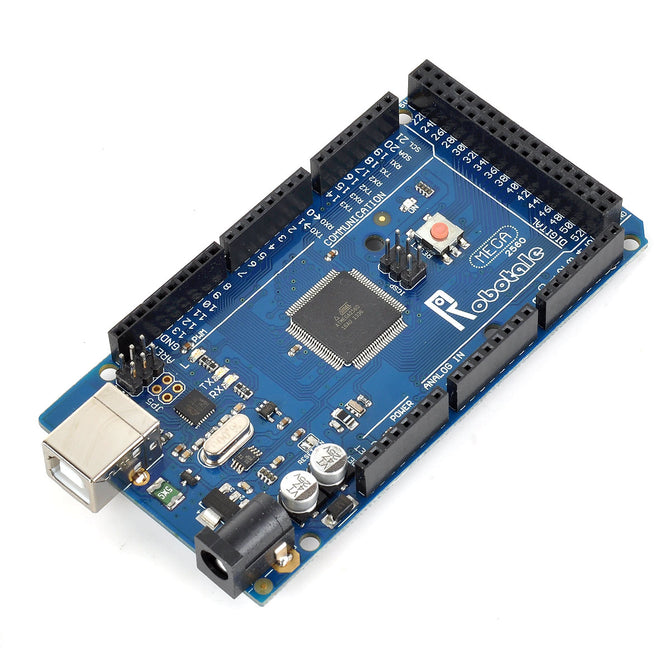

Robotale R 2560 R3 Module Compatible w/ Official Arduino Mega 2560 R3 - Deep Blue
US$ 13.70
US$ 16.90
: In stock
: 319120
Form Color Deep Blue Brand Robotale Model R 2560 R3 Quantity 1 DX.PCM.Model.AttributeModel.Unit Material FR4 English Manual / Spec Yes Download Link http://arduino.cc/en/Main/Software Other Features More powerful ATMEGA16U2 expands the...
Share:
Form Color | Deep Blue |
Brand | Robotale |
Model | R 2560 R3 |
Quantity | 1 DX.PCM.Model.AttributeModel.Unit |
Material | FR4 |
English Manual / Spec | Yes |
Download Link | http://arduino.cc/en/Main/Software |
Other Features | More powerful ATMEGA16U2 expands the ISP FLASH. Besides traditional USB to serial port, it allows users to define other functions, for example, set the USB as mouse, keyboard, rocking lever, camera, etc; Compared with the 2011 version, this module adds to it SDA, SCL; IOREF port gives shield voltage reference; One extra port space is preserved in the left of IOREF for future use. Its reset circuit is also improved and more stable; Operating voltage: 5V; Input voltage (recommended): 7~12V; Input Voltage (limits): 6~20V; Digital I/O Pins: 54 (of which 14 provide PWM output; Analog input Pins: 16; DC current per I/O Pin: 40mA; DC current for 3.3V Pin: 50mA; Flash memory: 256KB of which 4KB used by bootloader; SRAM: 8KB; EEPROM: 4KB; Clock speed: 16MHz; A product for Arduino that works with official Arduino boards. |
Packing List | 1 x Module 1 x USB cable (52cm) |
