Rich Multifunction Atmega328P Board Starter Kit w/ MP3 DS1307 RTC Temperature Touch Sensor 4-digit display Module for Arduino

Wholesale electronics best price, bulk price,wholesale accessories

Description

If you want to place the bulk order that the stock is not enough, please contact with us.

NOTE 1: Due to shipping restrictions, we donot supply the CR1220 battery in the DS1307 RTC module and the same one in the IR remote.

NOTE 2 : You can go to our google drive to watch the video tutorials and download the documents:

Google Drive: https://drive.google.com/drive/folders/0B6uNNXJ2z4CxWjcybmpFOUprRWc?usp=sharing

NOTE 3 : Because The kit Carry the Magnetic, it can only send by AliExpress Standard Shipping or DHL / UPS / Fedex, if you chose other shipping way , the package may needed to send by AliExpress Standard Shipping or DHL / UPS / Fedex , Please know.

It is a Rich Multifunction Board Kit Compatible for Arduino.

OPEN-SMART Board is an ATMEGA328P development board with rich peripherals.

Peripherals include 4 digit display, DS1307 clock, LM75 temperature sensor, infrared receiver, serial MP3 player, rotation angle sensor, 4-channel touch sensor.

Hardware resources are very rich, do not need any DuPont wires, and the usage is very simple. It is very suitable for learners.

The kit contains TF card, speaker, infrared remote control, and these are the necessary accessories for MP3,DS1307, infrared receiver.

4 digit display: 4 digit tube (0.36 inches) which can display the clock point, it needs D10/D11 pins to control and display the integer, clock, stopwatch, score and so on.

DS1307 clock: based on DS1307 high-precision real-time clock module, I2C interface, the address is 0x68.

LM75 temperature sensor: I2C interface temperature sensor, not only can measure the temperature, it can also set the temperature protection temperature, the address is 0x48.

Infrared receiver: use D2 pin,It can receive the modulated infrared signal of 38KHz that is sent by the IR transmitter module and demodulate it into logic level, and it can complete the infrared remote control with the codec program.

Serial MP3: MP3 music player module is based on high-quality MP3 music chip, use D7 / D8 pins to be software serial port, you can send commands to switch songs, change the volume and play mode and other operations.

Rotation angle sensor: 10K ohm adjustable potentiometer knob angle sensor, use A0 pin, can be used for MP3 volume adjustment, 4-digit display brightness adjustment.

4-CH touch sensor: capacitive touch switch, only when you touch the corresponding position with your fingers, the module corresponding pin (D3 / D4 / D5 / D6) will output high level, otherwise it outputs low.

Features:

- Use the Board bootloader compatible for Arduino.

- The program, expansion shields and IDE is compatible.

- Use Through Hole Mount type B USB connector, consistent for R3 Board, ruggedness and long service life.

- You can burn the program with the type A male to type B male cable.

- Onboard 500mA resettable fuse to protect power supply from the USB port and the DC jack at the same time.

- USB interface driver chip: CH340G, compatible with win7, win8, linux, MAC OS.

- Microcontroller: Atmel ATmega328P

- Working voltage: 5V

- IO logic voltage: 5V

- Working current: 500mA (Max)

- Digital I/O Pins: 14 (of which 6 provide PWM output)

- Flash Memory: 32 KB of which 2 KB used by bootloader

- SRAM: 2KB

- EEPROM: 1KB

- Clock Speed: 16 MHz

- Onboard DIP switch, you can disconnect the connection between the peripheral module on the board and the Atmega328P.

- Onboard Shield interface, can plug the compatible expansion shield.

Photos

Part List (Schematics and program can be sent , Please contact us)

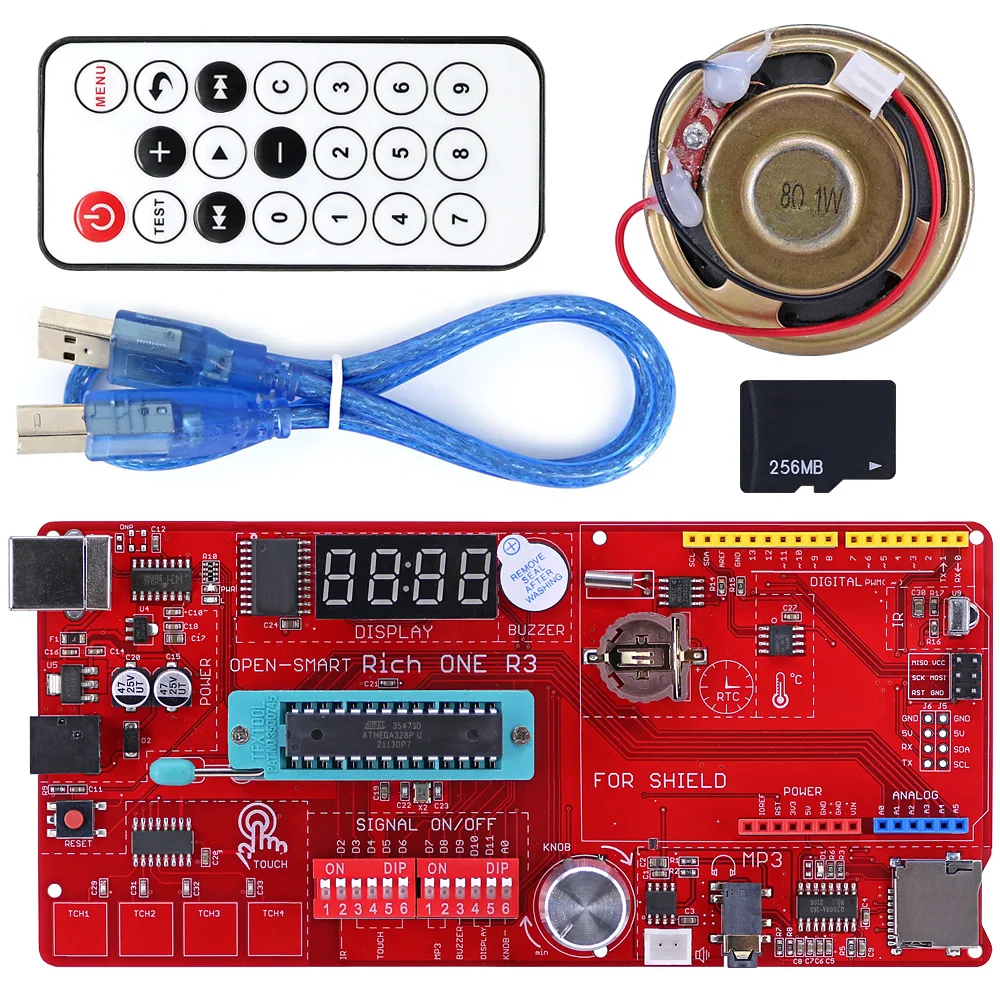

1 x Board (without CR1220 battery)

1 x USB cable (50cm)

1 x TF card (256MB)

1 x Speakers(1W or 0.5W)

1 x Infrared Remote Control (without CR1220 battery)
