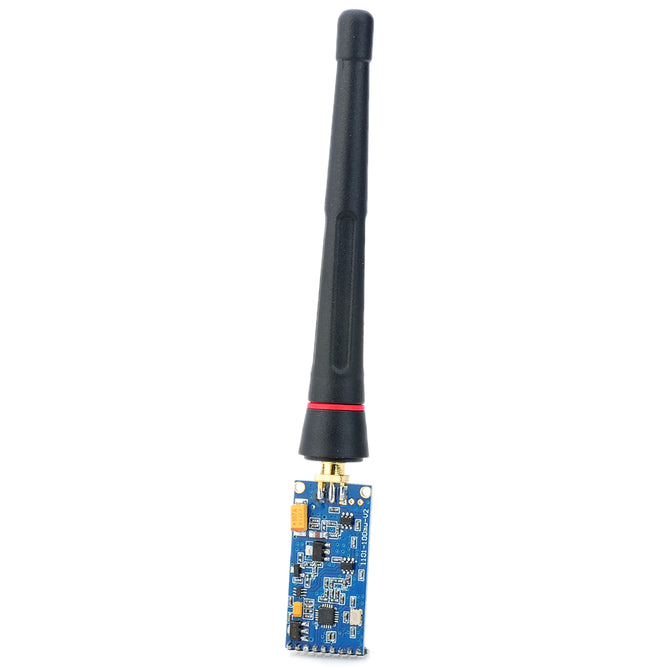

RFC-1100C Wireless RF Transceiver Module w/ Pin Header / Antenna - Blue
US$ 11.65
US$ 15.59
: In stock
: 208524
Model RFC-1100C Quantity 1 Color Blue Material PCB Features Use CC110L wireless RF chip, fully compatible with CC1100/CC1101, more simple and stable; Programmable data speed: 0.6~600kbps (recommend range: 2.4kbps~500kbps); Working...
Share:
| Model | RFC-1100C |
| Quantity | 1 |
| Color | Blue |
| Material | PCB |
| Features | Use CC110L wireless RF chip, fully compatible with CC1100/CC1101, more simple and stable; Programmable data speed: 0.6~600kbps (recommend range: 2.4kbps~500kbps); Working frequency range: 387~464MHz free ISM frequency band (recommend range: 430~436MHz); Modulation mode: 2-FSK, 4-FSK, GFSK and OOK; 64 bit receive and transmit; Can set address by software, output data when receive the module's address; Can directly connects kinds of SCM for use; Convenient software programming; Low power consumption performance, current consumption about 20uA when on sleep mode; Max transmit power: +20dBm; Quick start: 240uS; Fast switch. |
| Specification | Working temperature: 4.5~5.5V, Max. transmitted power: +20dBm, Max. data transmission: 500kbps, output power: +20dBm, working temperature: -40'C~85'C, classical sensitivity / highest sensitivity: -110/-116dBm, power down mode working current: 20uA: 65mA, receive mode working current: 12.5mA. |
| Application | Great for DIY projects. |
| English Manual/Spec | Yes |
| Packing List | 1 x Wireless RF transceiver module |
| 1 x High gain antenna |
