RED-DIY01 328P DIY Pro ATmega328P Development Board Kit with 4 Bit RGB LED / Analog Button / Sound Sensor Compatible for Arduino

Wholesale electronics best price, bulk price,wholesale accessories

Description

If you want to place the bulk order that the stock is not enough, please contact with us.

This is high quality OPEN-SMART 328P DIY board kit which is compatible for Arduino. It includes sensors / buzzer and you can start programming and projects quickly. You can use the 3pin cable to connect the modules to the 328P DIY pro board.

The development board based on ATMEGA328P.

The kit includes one 3 keys analog button module, The larger number key you press, the higher voltage it output. If you supply 5V power for it, the output voltage is:

when there is no active touch, it is about 0V.

when you press K1 button, it is about 1V.

when you press K2 button, it is about 2V.

when you press K3 button, it is about 3V.

It includes one sound sensor module, which can output analog value for the voice. The louder the sound, the higher the output voltage.

It includes 4 Bit RGB LED module, which is based on ws2812, it works perfect for Arduino products; Just write a simple program, and it can produce different colors.

It includes one rotary angle sensor module,the output will varies linearly with the rotation angle. Angle of rotation is 280 degree.

It includes one Buzzer module, high level will turn on the buzzer.

It is great for beginners, students, training institutions.

Features:

- Kit Model: RED-DIY1;

- Onboard ATmega328P-PU has been burned for compatible bootloader;

- Onboard CH340 USB to UART module that you can upload code directly after install CH340 driver for your PC, compatible with win7, win8, linux, MAC OS;

- Onboard 1 Programmable LED which connect to D13;

- Onboard 28PIN-DIP socket so you can replace the ATmega328P-PU chip;

- The program, development environment IDE is compatible for Arduino.

- Microcontroller: ATmega328P-PU

- Operating voltage: 5V;

- IO interface logic voltage: 5V;

- Operating Current: 500mA (max);

- Digital I / O pins: 14 (of which 6 can provide PWM output);

- Analog input pins: 6;

- Clock frequency: 16MHz;

- Onboard power indicator;

- Bootloader burning Interface: ICSP.

Photos

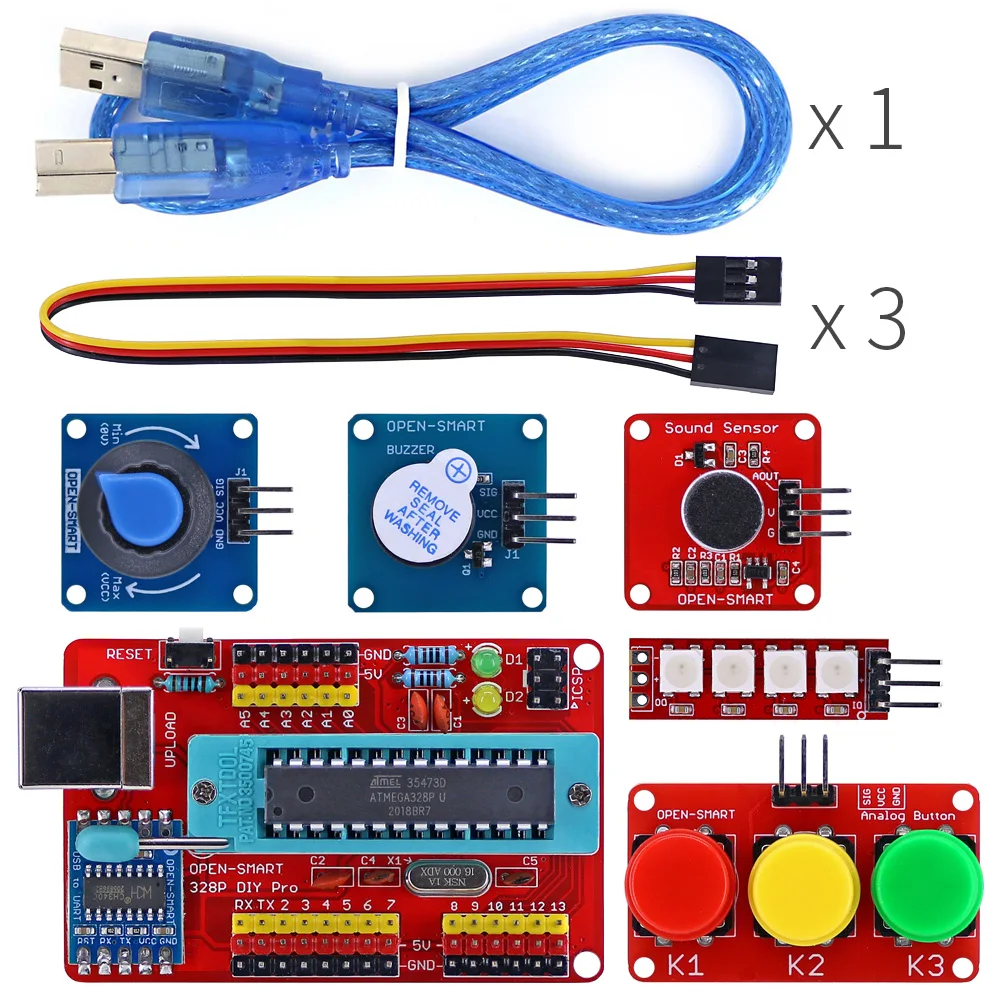

Part List(Schematics and program can be sent , Please contact us)

1 x 328P DIY Pro Board

1 x Analog Button module

1 x Sound Sensor module

1 x 4 Bit RGB LED module

1 x Rotary Angle Sensor module

1 x Buzzer module

1 x USB cable (about 50cm)

3 x 3pin cable (about 20cm)
