RD LD35 Electronic Load Resistor, USB Discharge Battery Test LED Display Fan Adjustable Current Voltage Meter 35W Black

US$ 11.25 US$ 15.71

Availability: In stock

SKU: 622816

Product Description Model Number: LD35 Dimensions: 84x41x28mm Operating Temperature: 30¡ãC Accuracy Class: - Power Supply: Other Display Type: Other DIY Supplies: Electrical LD35 (5A/25V/35W) intelligent load Instructions for USB Intelligent...

Add to wishlist

Product Description
Model Number: LD35	Dimensions: 84x41x28mm
Operating Temperature: 30¡ãC	Accuracy Class: -
Power Supply: Other	Display Type: Other
DIY Supplies: Electrical

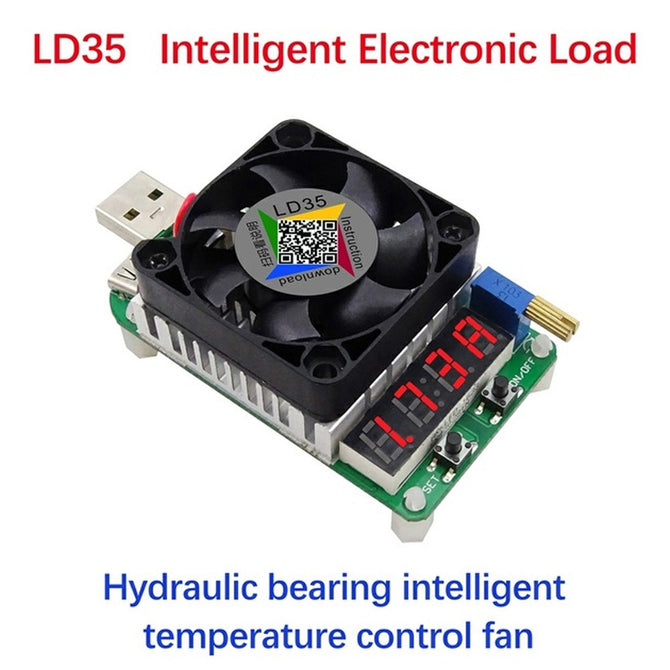

LD35 (5A/25V/35W) intelligent load

Instructions for USB Intelligent electronic load

-Model: LD35

NOTE:

This product has no reverse connection protection, the input polarity cannot be reversed, otherwise the product is permanently damaged and cannot be repaired

Product Model	LD25	LD35
Rated operational voltage	DC4-25.0V
Max discharging power	25W	35W
Rated operational current	0.25-4.00A (when fan don¡¯t work, the minimum constant current is 0.05A )	0.25-5.00A (when fan don¡¯t work, the minimum constant current is 0.05A )
Fan Speed	Oil bearing intelligent temperature control fan£¬speed 5800¡À10%RPM	Hydraulic bearing intelligent temperature control fan£¬speed 8000¡À10%RPM

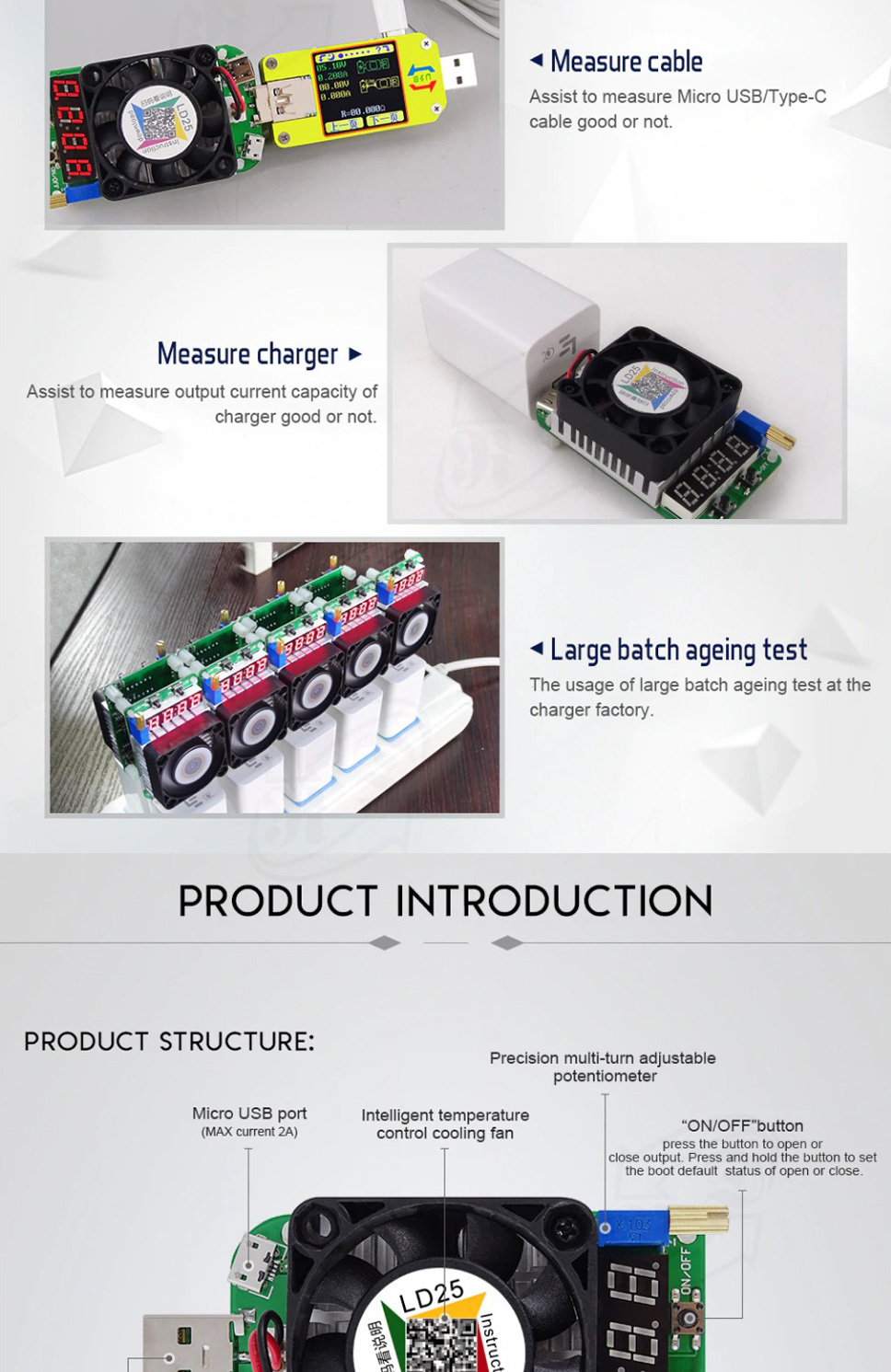

Application	Application suggestions: Charger, power supply and other device manufacturers want long-term discharge or batch aging test of products, please choose LD35 (LD25 is not applicable)
Constant current resolution	¡À£¨1£¥+3 digits£©
Heat dispatch method	Intelligent temperature control fan + All aluminum fan
Working temperature	-10¡æ-40¡æ
Adjustable potentiometer	Precision multiloop adjustable potentiometer
Display mode	4 bit LED tube
Expansion port	Micro USB port¡¢Type-C port
Product weight	About 57g
Product size	84x41x28mm
