RD LD25 Electronic Load Resistor, USB Discharge Battery Test LED Display Fan Adjustable Current Voltage Meter 25W Black

RD LD25 Electronic Load Resistor, USB Discharge Battery Test LED Display Fan Adjustable Current Voltage Meter 25W Black

US$ 9.19 US$ 47.62

: In stock

: 622815

Product Description Model Number: LD25 Dimensions: - Operating Temperature: 30¡ãC Accuracy Class: - Power Supply: DC Display Type: Other DIY Supplies: Electrical LD25 (4A/25V/25W) intelligent load NOTE: This product has...
Product Description
Model Number: LD25 Dimensions: -
Operating Temperature: 30¡ãC Accuracy Class: -
Power Supply: DC Display Type: Other
DIY Supplies: Electrical

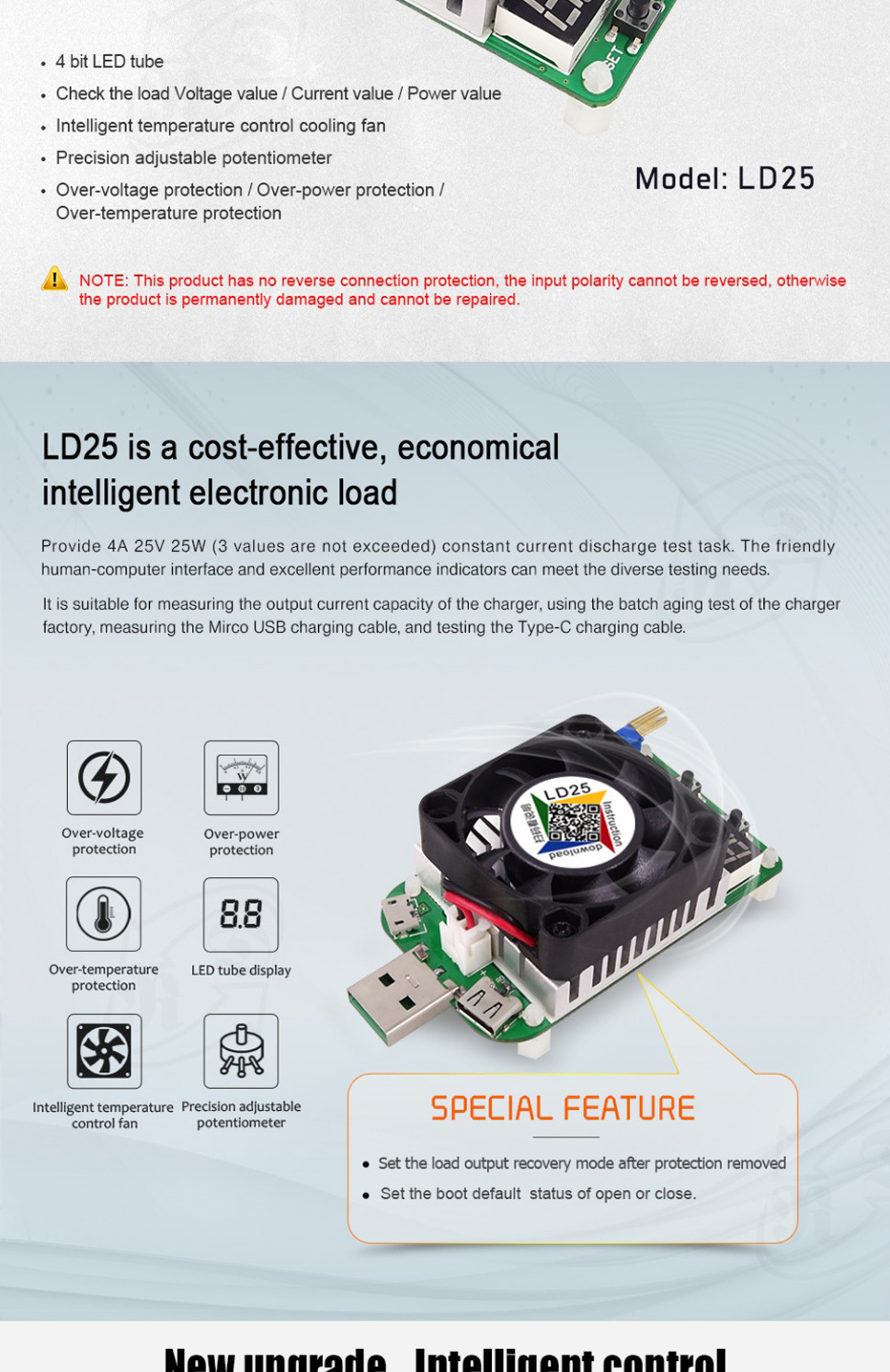

LD25 (4A/25V/25W) intelligent load

NOTE:

This product has no reverse connection protection, the input polarity cannot be reversed, otherwise the product is permanently damaged and cannot be repaired

Product Model

LD25

LD35

Rated operational voltage

DC4-25.0V

Max discharging power

25W

35W

Rated operational current

0.25-4.00A (when fan don¡¯t work, the minimum constant current is 0.05A )

0.25-5.00A (when fan don¡¯t work, the minimum constant current is 0.05A )

Fan Speed

Oil bearing intelligent temperature control fan£¬speed 5800¡À10%RPM

Hydraulic bearing intelligent temperature control fan£¬speed 8000¡À10%RPM

Application

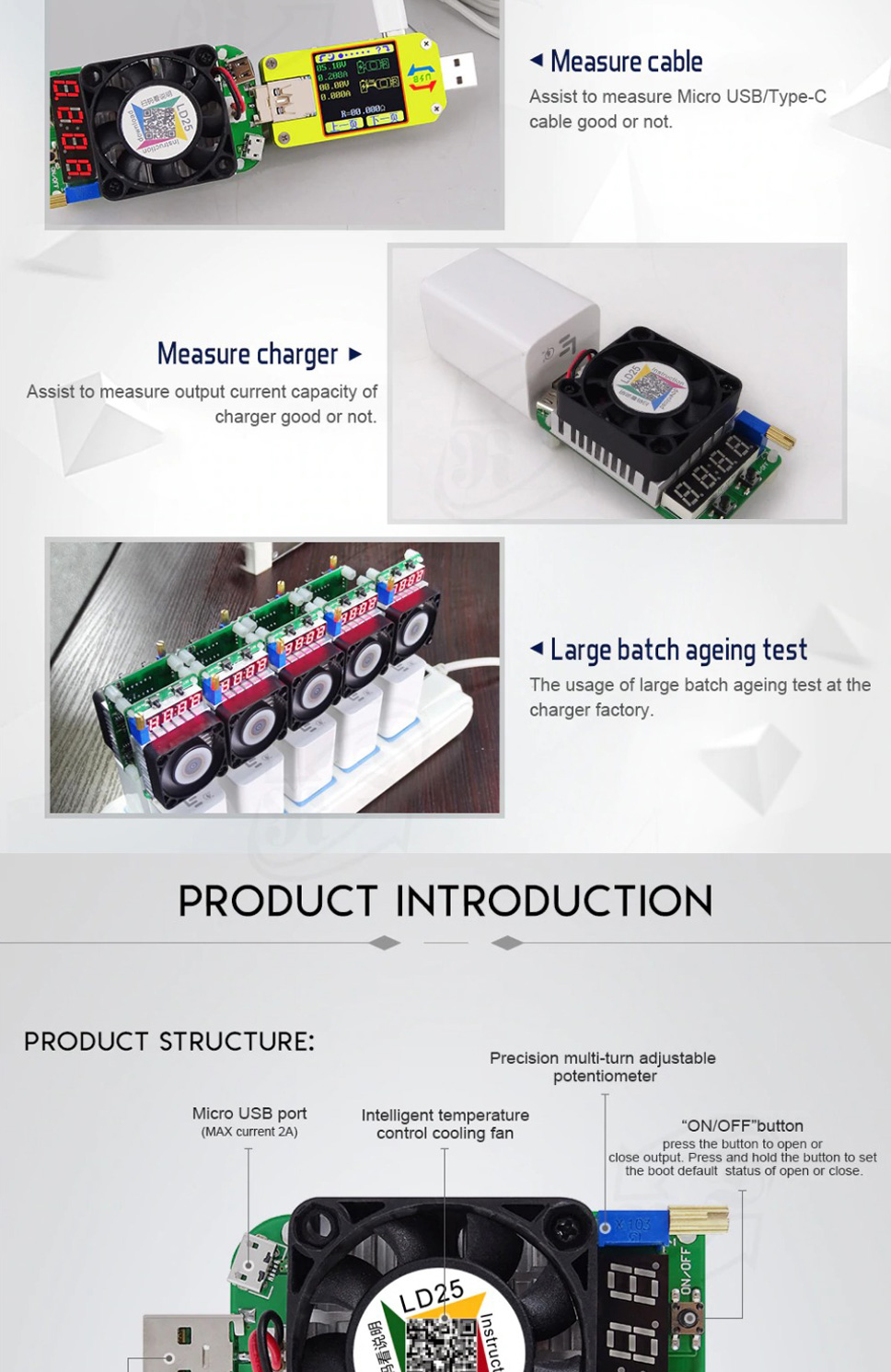

Application suggestions: Charger, power supply and other device manufacturers want long-term discharge or batch aging test of products, please choose LD35 (LD25 is not applicable)

Constant current resolution

¡À£¨1£¥+3 digits£©

Heat dispatch method

Intelligent temperature control fan + All aluminum fan

Working temperature

-10¡æ-40¡æ

Adjustable potentiometer

Precision multiloop adjustable potentiometer

Display mode

4 bit LED tube

Expansion port

Micro USB port¡¢Type-C port

Product weight

About 57g

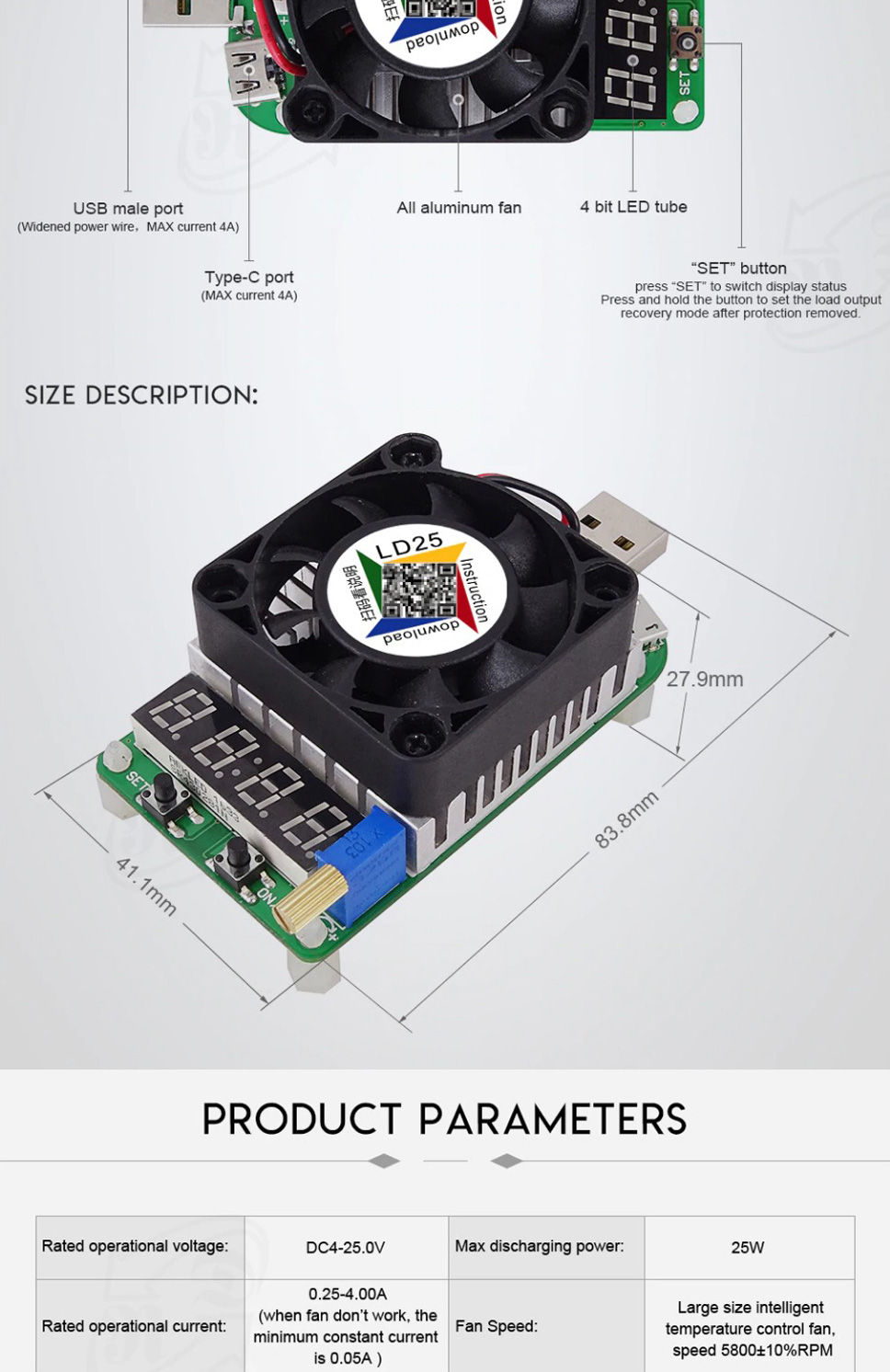

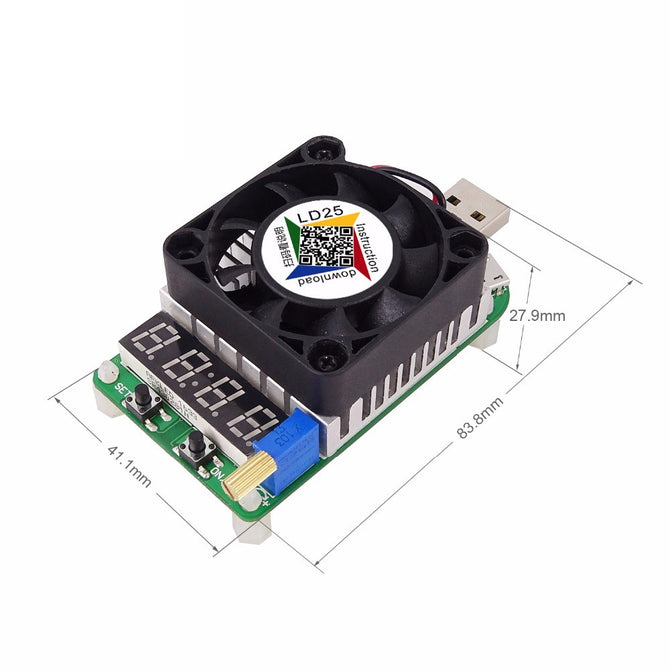

Product size

84x41x28mm


Information :

1, LD25 user manual download page :http://www.mediafire.com/folder/q2o63jc8df6qc/LD25

2, Youtube video https://youtu.be/M5gLYlfJKyg

3, Customer Feedback
