RC-113M AC 220V 2A High Precision PID Digital Thermostat Regulator Termostato Temperature Controller For Incubator Lab Black
US$ 14.67
US$ 19.09
: In stock
: 578664
Product Description Model Number: RC-113M With Backlight Or Not: Yes Display Type: Digital DIY Supplies: Electrical RC-113M AC 220V 2A PID Digital Thermostat Regulator Termostato Temperature Controller for Incubator Lab...
Share:
| Product Description | |
|---|---|
| Model Number: RC-113M | With Backlight Or Not: Yes |
| Display Type: Digital | DIY Supplies: Electrical |

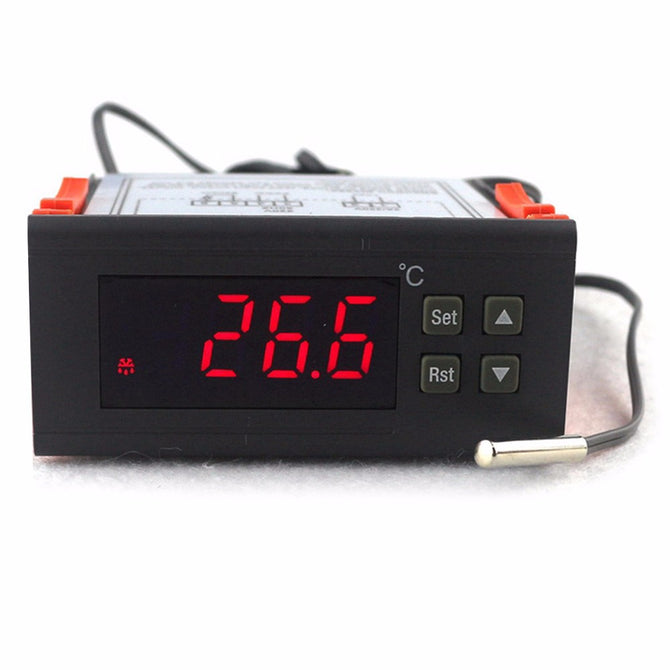

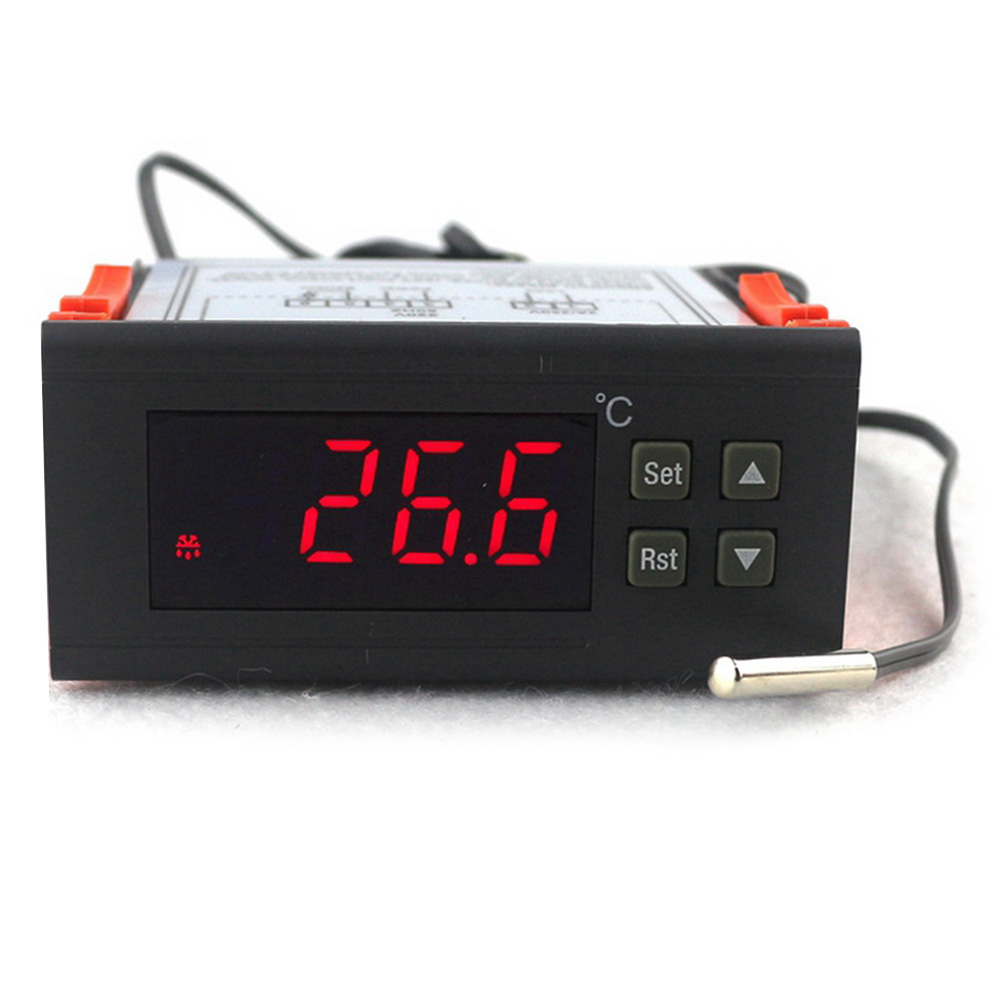

RC-113M AC 220V 2A PID Digital Thermostat Regulator Termostato Temperature Controller for Incubator Lab
Features:
- LED display
- PID control
- During 25~42¡ãC, the accuracy can be 0.1¡ãC.
- Widely applied to various equipments and places that need to control temperature accurately, such as incubator, heating equipment in the laboratory etc.
Parameters:
- Temperature measuring range: -40~110¡ãC
- Temperature controlling range: -10~100¡ãC
- Load capacity: ?¡ë¡è2A/220V/50HZ/440W
- Power options: 220VAC/50HZ
- Input: 1 NTC sensor, sensor wire: 2m(standard)
- Measure Accuracy: ¡À0.1¡ãC (during 25~42¡ãC), ¡À0.5¡ãC(other range 25~42¡ãC),
- Control Accuracy: ¡À 1¡ãC
- Resolution: 0.1¡ãC
- Consumption: ?¡ë¡è3W

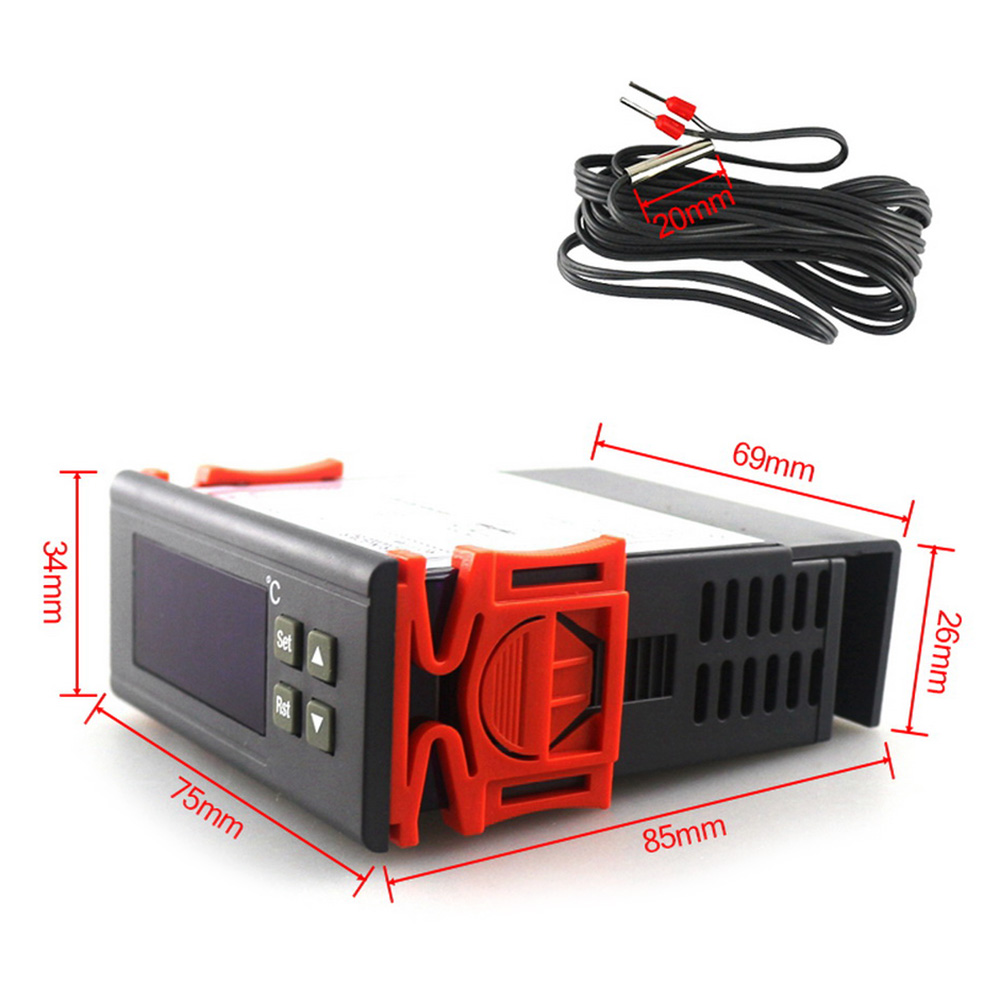

- Cut-out size: 71¡Á29(mm)
- Ambient requirements: temperature: -10~60¡ãC, humidity: 20~85% (No condensate)
Function Menu:
| Code | Function | Setting Range | Default | Unit |
| F01 | Set low limit | -10~set temp. | -10 | ¡ãC |
| F02 | Set high limit | Set temp.~100 | 100 | ¡ãC |
| F03 | Calibration | -7~7 | 0 | ¡ãC |
Applications:
- Refrigeration industry(freezers, refrigerators, , Cold stores, cold chain, iceboxes, cooling towers, water coolers, oil coolers, cold water chillers, water chilling units etc.)
- HVAC industry (Heating Ventilation Air Conditioning)
- Pet industrial: Aquariums, fish tanks, terrariums, seafood machines, Vivariums, Paludariums, Incubators etc.
- Medical thermostatic equipment (for blood, drugs, Pharmaceutical etc.)
- Food processing (Brewing, Abattoirs etc.), Food Wholesale, Food Retail (Hypermarkets, Supermarkets, Convenience Stores, Food Shops, Charcuteries, Delicatessens etc.)
- Solar water-heating system central controller
- Sauna room, foot bath, foot sauna, foot massager etc.
- Wine production, wine cabinet, display cabinet etc.
- Catering (Hotels, Restaurants, etc.)
- Agriculture
- Automobile
- Photography
- Process control
- Laboratory, Chemical
- Greenhouses, cultivating-houses
- Ice-skating rinks
- Energy management
- Other industries need temperature measuring and controlling
Package Includes:
- 1 * Temperature Controller ( no including retail box )
- 1 * 2m Temperature sensor
- 1 * Instruction Manual
Note:
There has two type of sensor, they will be sent by random
