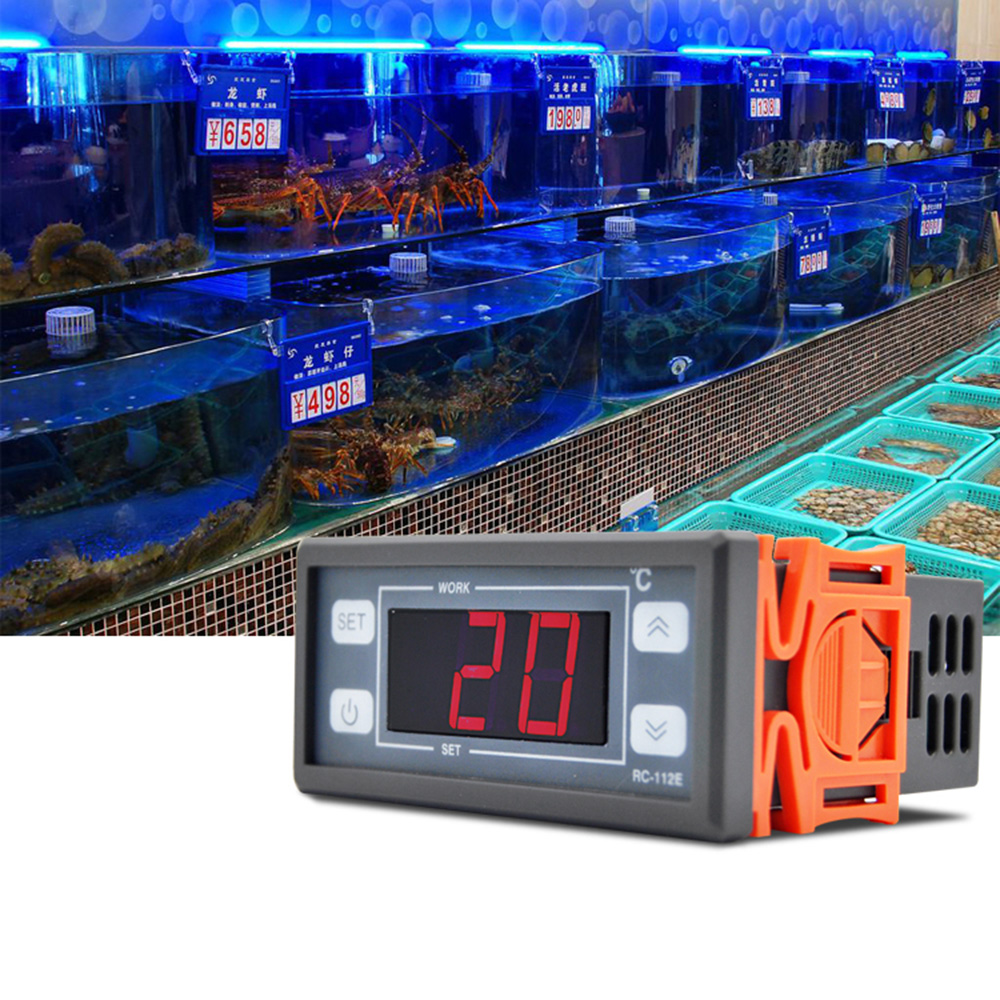

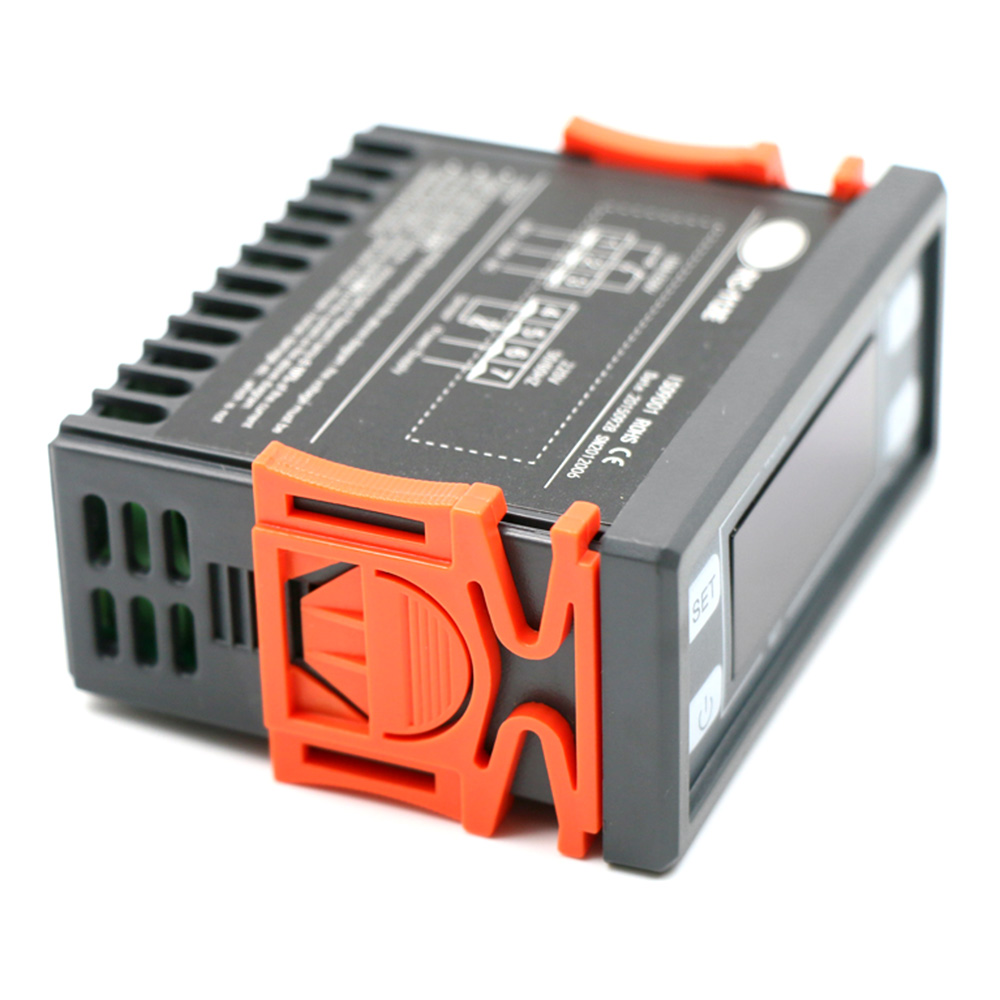

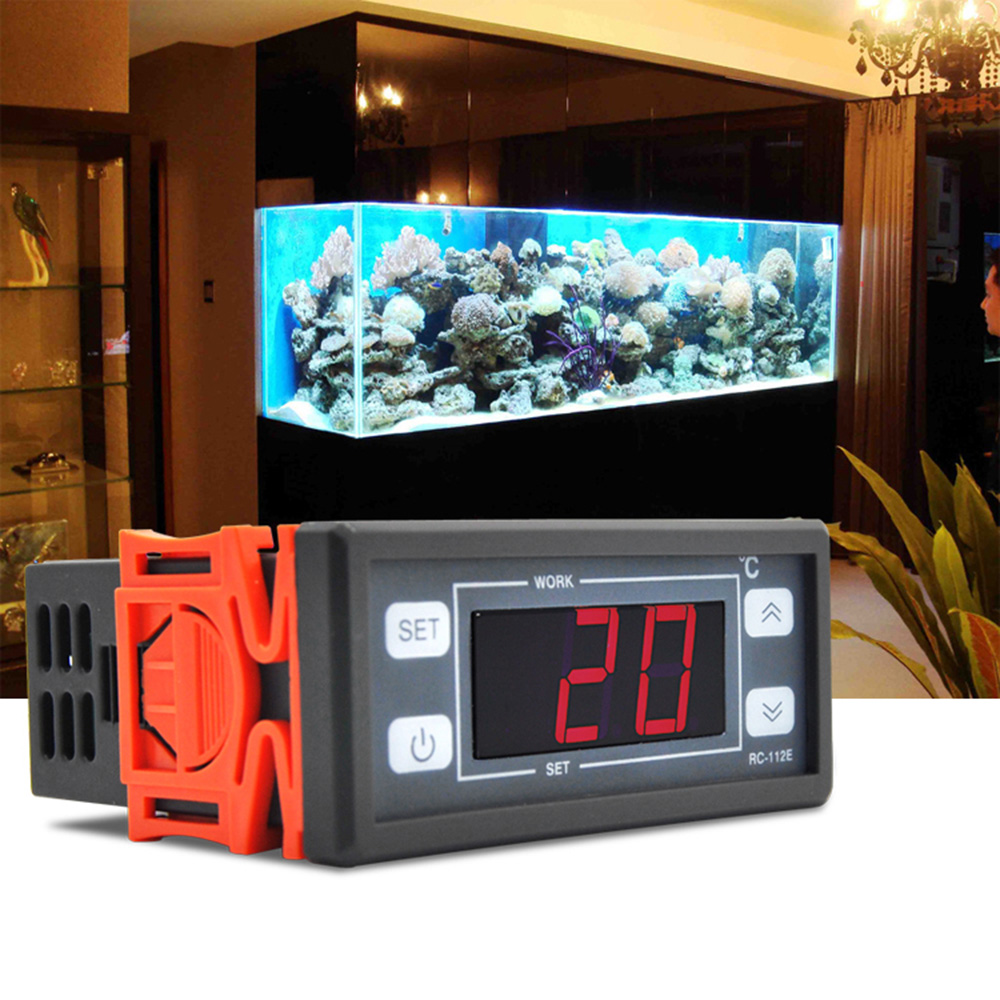

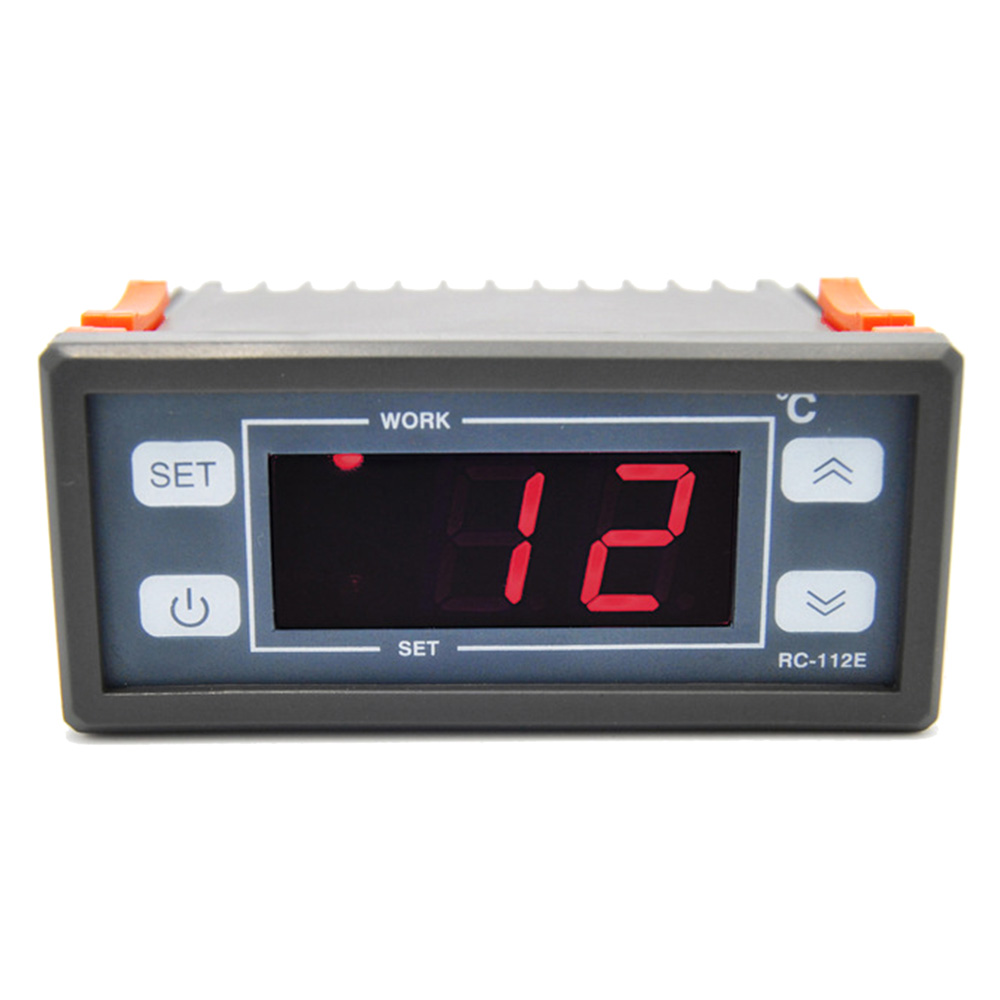

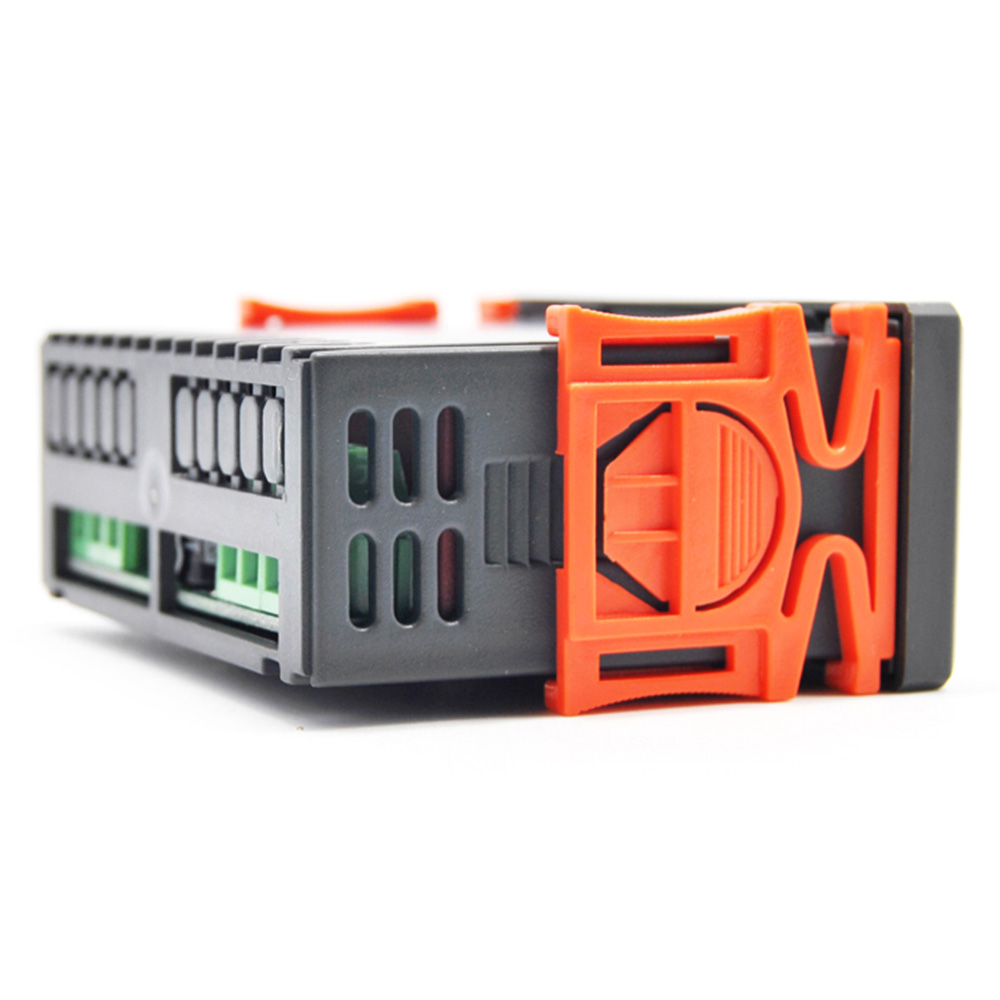

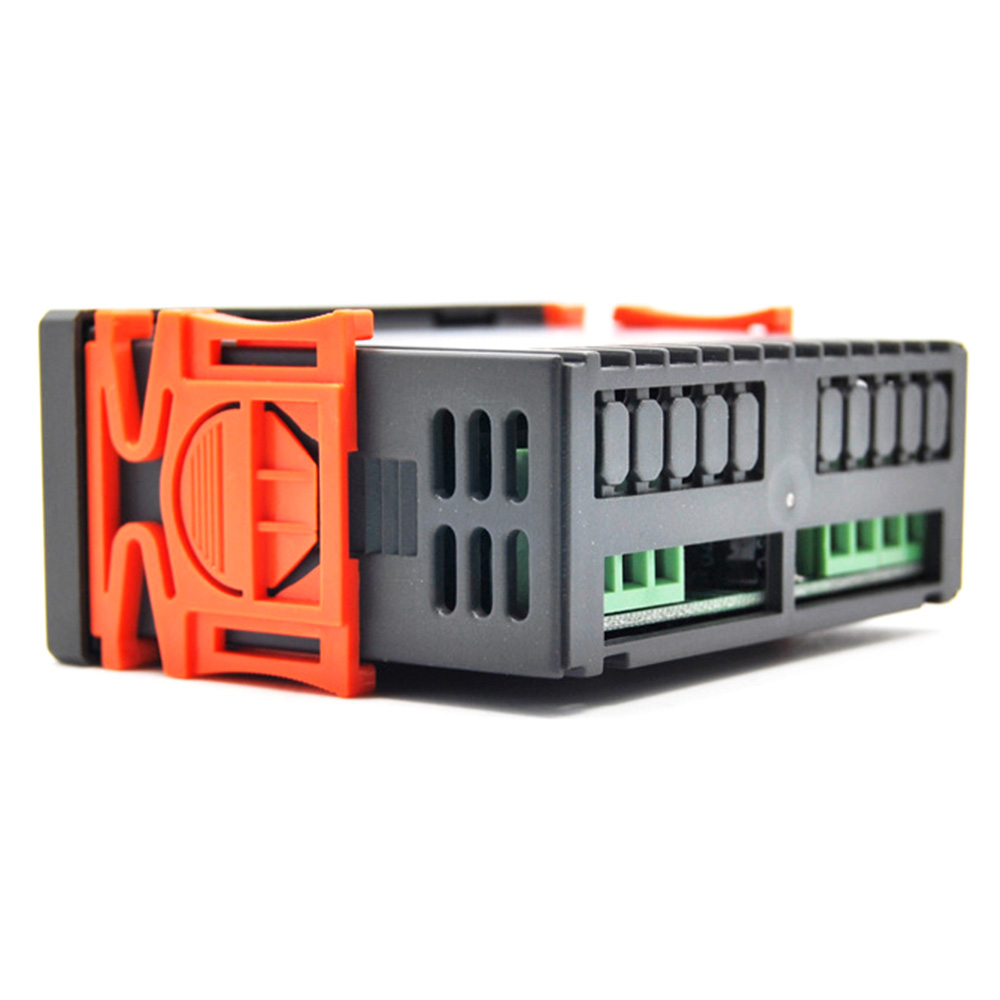

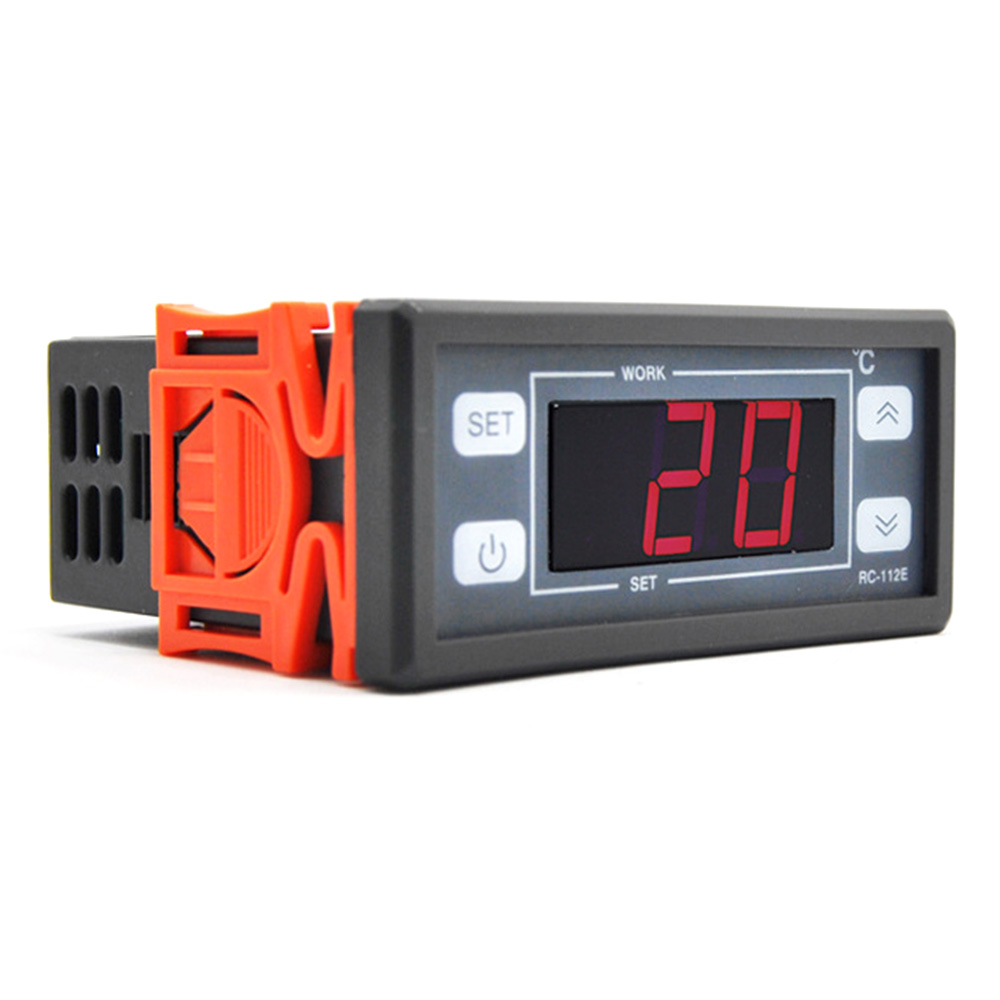

RC-112E 220V30A Hot / Cold ON / OFF Relay Switch Digital Temperature Controller Regulator Family Thermostat
US$ 11.19
US$ 14.06
: In stock
: 582743
Product Description Model Number: RC-112E With Backlight Or Not: Yes Display Type: Digital DIY Supplies: Electrical Features: LED display Best cost-effective Traditional design Parameters: Temperature measuring and controlling range: -40~99¡ãC...
Share:
| Product Description | |
|---|---|
| Model Number: RC-112E | With Backlight Or Not: Yes |
| Display Type: Digital | DIY Supplies: Electrical |
Features:
- LED display
- Best cost-effective
- Traditional design
Parameters:
- Temperature measuring and controlling range: -40~99¡ãC
- Relay capacity:30A/250V
- Power supply: 220VAC¡À15%
- Input: 1 NTC sensor, sensor wire: 2m(standard)
- Accuracy: ¡À1¡ãC, Resolution: 1¡ãC
- Consumption: ?¡ë¡è3W
- Cut-out size: 71¡Á29(mm)
- Ambient requirements: temperature: -10~60¡ãC, humidity: 20~85% (No condensate)
- Output: resistive load?¡ë¡è2200W/220V, inductive load?¡ë¡è825W/220V, filament lamp?¡ë¡è660W/220V
Function Menu:
| Code | Function | Setting range | Default | Unit |
| HC | Mode option | C: refrigeration H:heating | C | / |
| D | Controlling-temp. differential | 1~15 | 3 | ¡ãC |
| LS | Lower Temp. limit | -40~setting Temp. | -40 | ¡ãC |
| HS | Upper Temp. limit | Setting Temp.~99 | 99 | ¡ãC |
| CA | Temp. calibration | -5~5 | 0 | ¡ãC |
| PT | Compressor delay | 0~15 | 3 | Min. |
Package Includes:

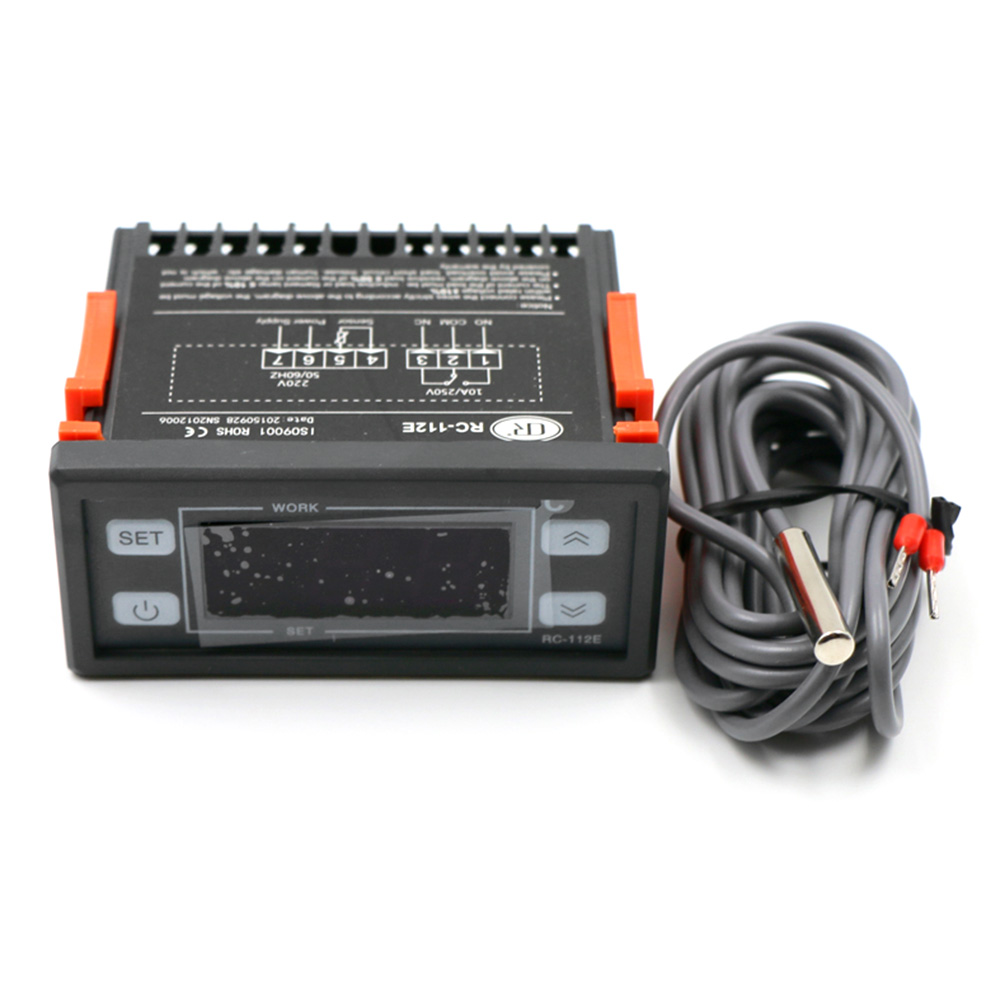

1 * Temperature Controller
1 * Temperature sensor
1 * Instruction Manual
