PEAKMETER PM18C Digital Multimeter, Measuring Voltage Current Resistance Capacitance Frequency Temperature Line Tester Orange
: In stock
: 602343
| Product Description | |
|---|---|
| DC Current: - | AC Current: - |
| DC Voltage: - | AC Voltage: - |
| Operating Mode: Manual Range | Measuring Capacitance Range: 6NF-100MF |
| Measuring Resistance Range: 60hm-60mohm | Model Number: PM18C |

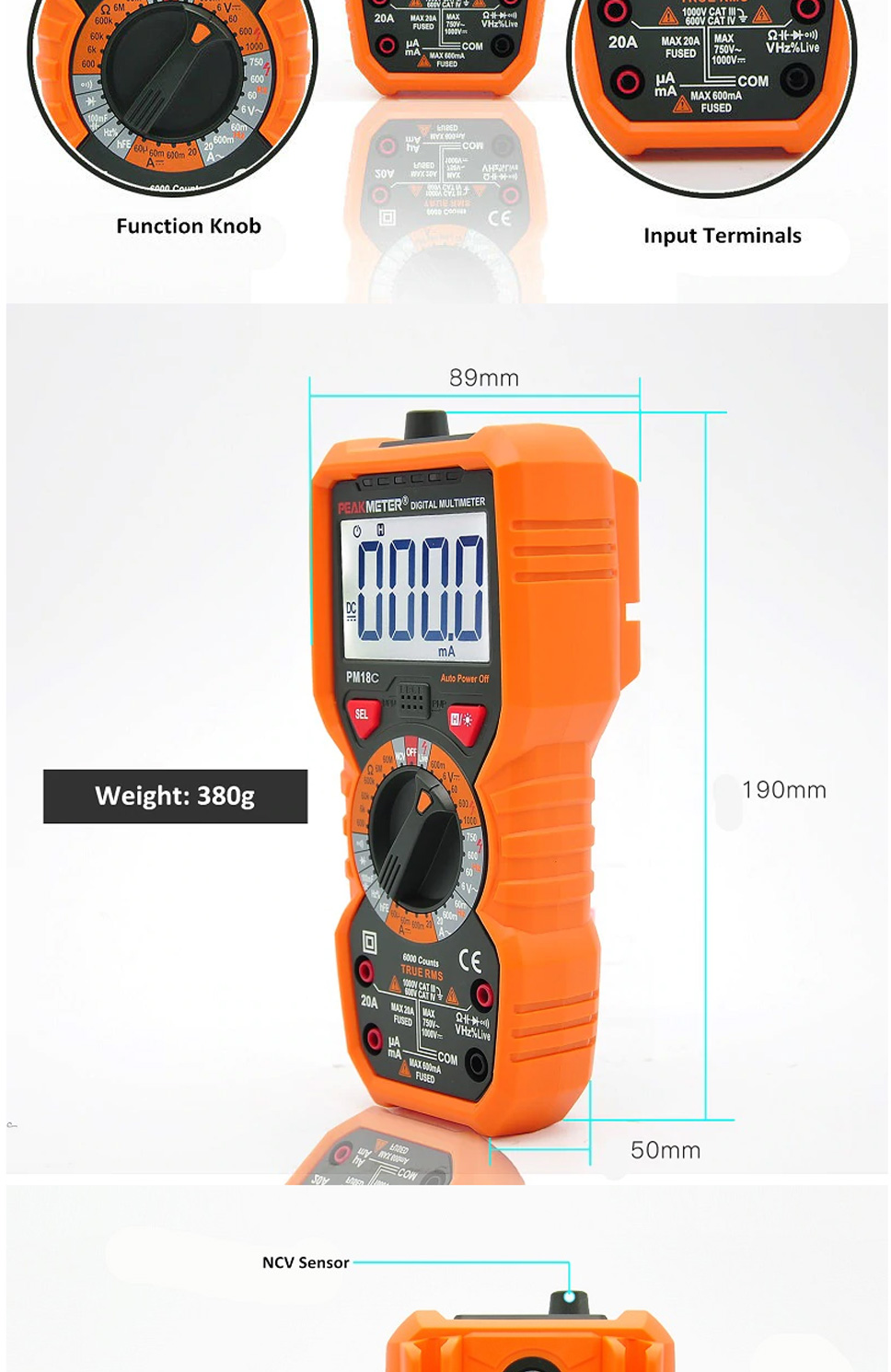

| Dimensions: 190*89*50 | Measuring Inductance Range: - |
| Operating Temperature: 0 - 40 ??? | Display Type: Digital Display |
| DIY Supplies: Electrical |
Products Properties:
Brand: Peakmeter
Display Type:Digital Display
DIY Supplies:Electrical
Model: PM18/PM18C
Power by: 4*1.5V AA battery
DC voltage measurement: 600mV / 6V / 60V / 600V / 1000V ¡À (0.5% + 2)
AC voltage measurement: 6V / 60V / 600V ¡À (0.8% + 3) 750V ¡À (1.0% + 10)
DC current measurement: 60??A / 60mA / 600mA ¡À (0.8% + 3) 20A ¡À (1.2% + 3)
AC current measurement: 60mA / 600mA ¡À (1.0% + 3)
20A ¡À (1.5% + 3)
Capacitance measurement: 6nF/ 60nF / 600nF / 6uF / 60uF / 600uF / 6000uF/100mF (Max 100000uF)
Resistance Measurement: 600?? / 6k?? / 60k?? / 600k?? / 6M?? ¡À (0.8% + 3) 60M?? ¡À (1.2% + 3)
Frequency Measurement(PM18): 10Hz ~ 10MHz ¡À (1.0% + 3)
Duty cycle measurements: 1% ~ 99% ¡À (2.0% + 2)
Temperature Measurement (PM18C): -20 C -1000C¡À (1.0% + 3), -4 F -1832 F ¡À (1.0% + 3)
Display: 6000 count
Package included:
1 x Multimeter
2 x test probs
1 x thermocouple (just for PM18C)
1 x user manual
Features:
- Overload protection and battery voltage indication
- Ideal for professions, factories, schools, amateur and home use
- Manual range, data hold, non-contact detector, diode test, transistor and continuity

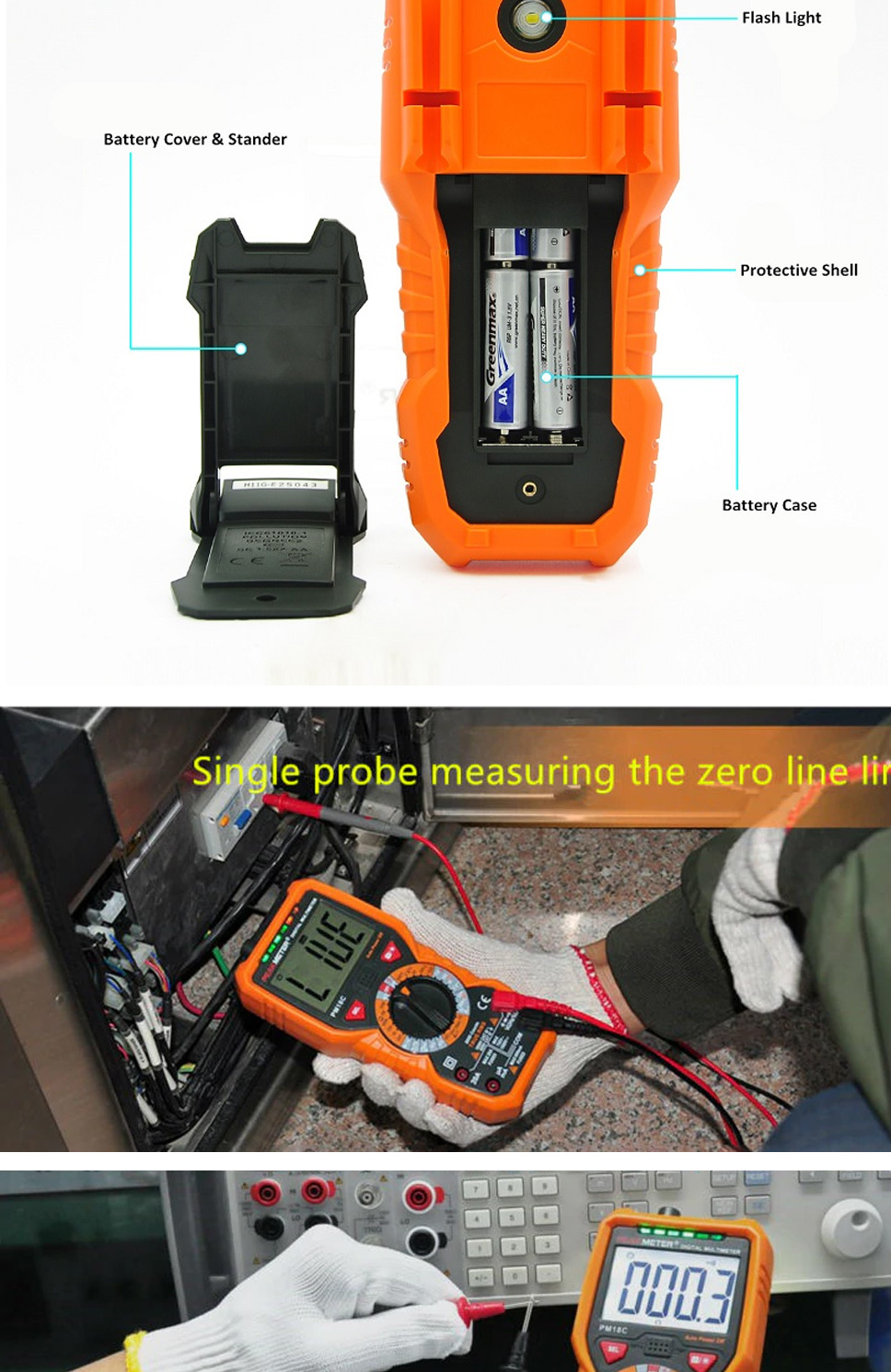

- Inbuilt flashlight, convenient lighting tool
- Powered by 4 x 1.5V AA batteries ( not included )
