OUTEST Digital Infrared Thermometer Non Contact Pyrometer IR Laser Point Gun Temperature Meter Industial Use GM320 Backlight

US$ 8.25

: In stock

:

OUTEST Digital Infrared Thermometer Non Contact Pyrometer IR Laser Point Gun Temperature Meter Industial Use GM320 Backlight Features:Laser pointer for accurate target aimingSimple one-handed operationLCD with back lightLaser ON/OFF SwitchLow...
color
GM321
GM530
GM270
GM320
GM900
GM550E
GM700
GM300E
GM550
GM531
GM300

OUTEST Digital Infrared Thermometer Non Contact Pyrometer IR Laser Point Gun Temperature Meter Industial Use GM320 Backlight

1 (1)

Features:
Laser pointer for accurate target aiming
Simple one-handed operation
LCD with back light
Laser ON/OFF Switch
Low battery indication
LED back light system for operation under poor illumination
C/F temperature unit conversion
Automatic Power off in 7 seconds without any operation
Display hold, Scan function
Specifications:

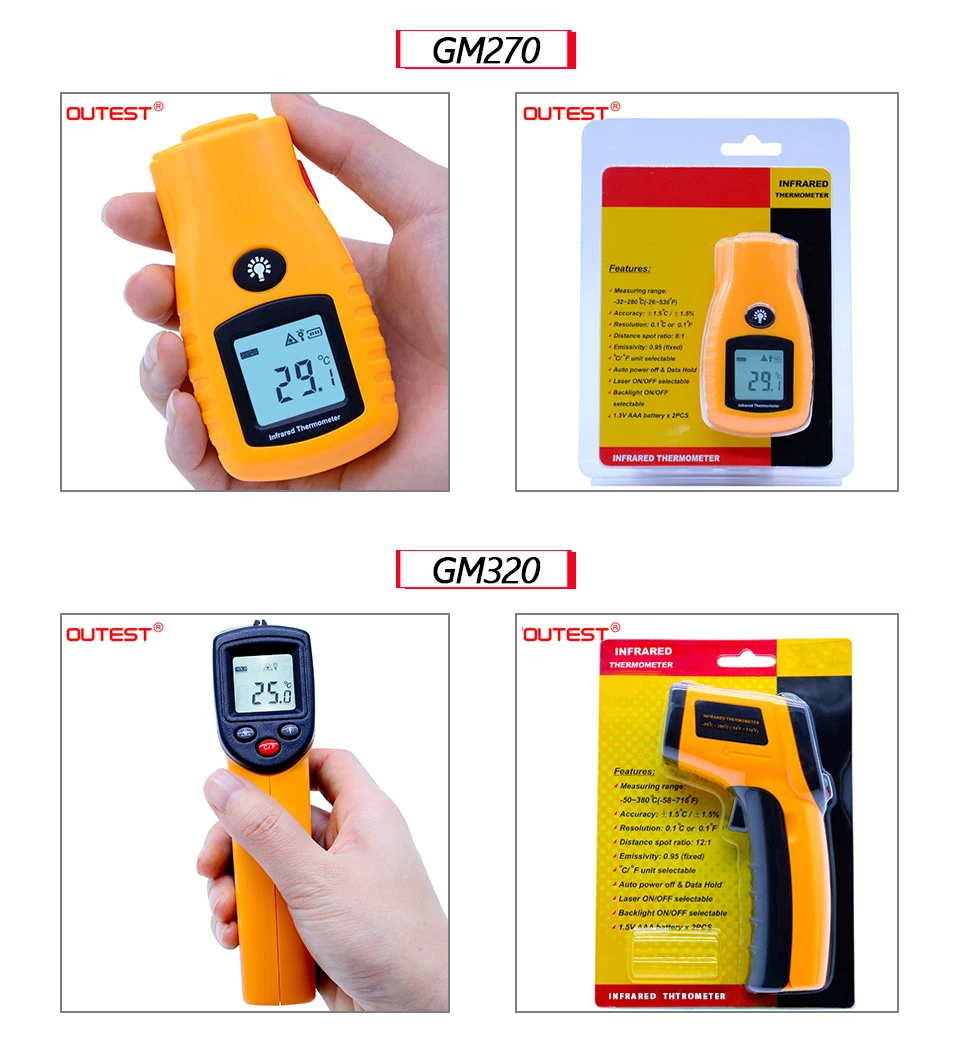

GM270 measurement range: -32~280 C (-26~536 F)

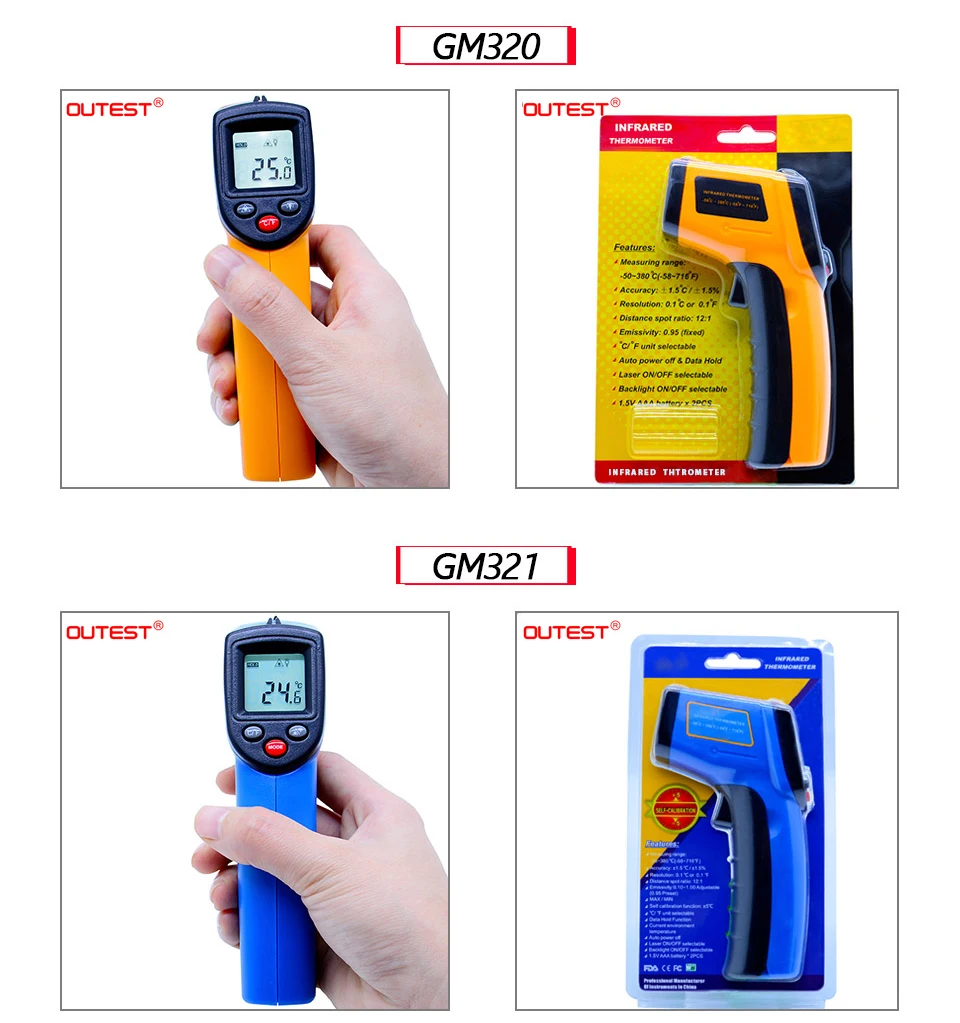

GM320 measurement range: -50~380 C (-58~716 F) Update

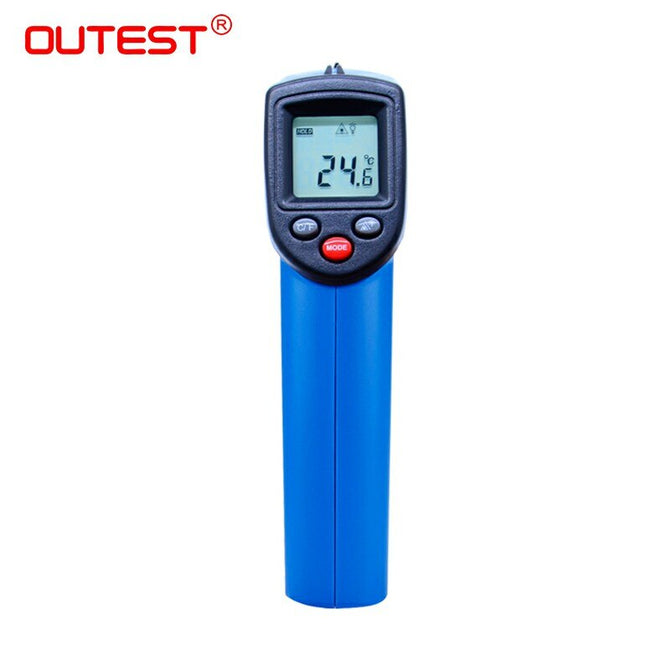

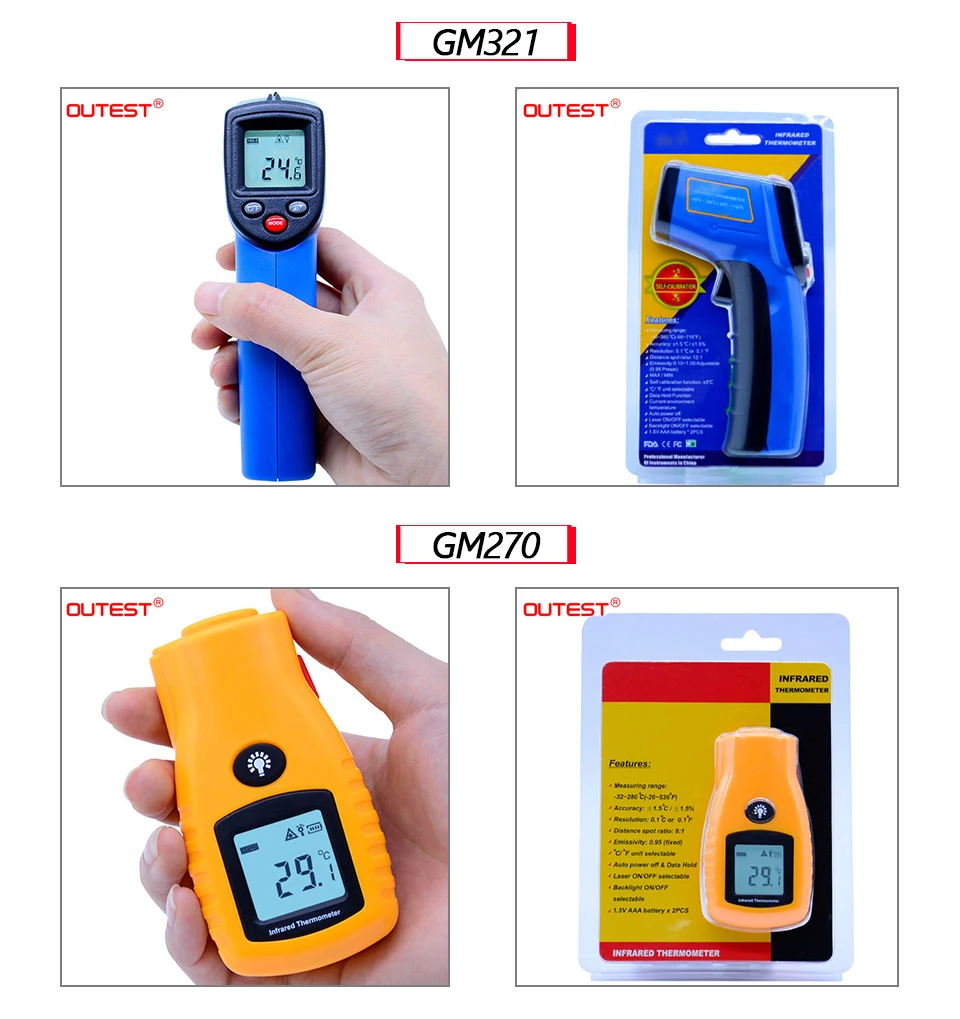

GM321 measurement range: -50~380 C (-58~716 F)
GM530 measurement range: -50~530 C (-58~986 F)
GM531 measurement range: -50~530 C (-58~986 F)
GM300 measurement range: -50~420 C (-58~788 F)

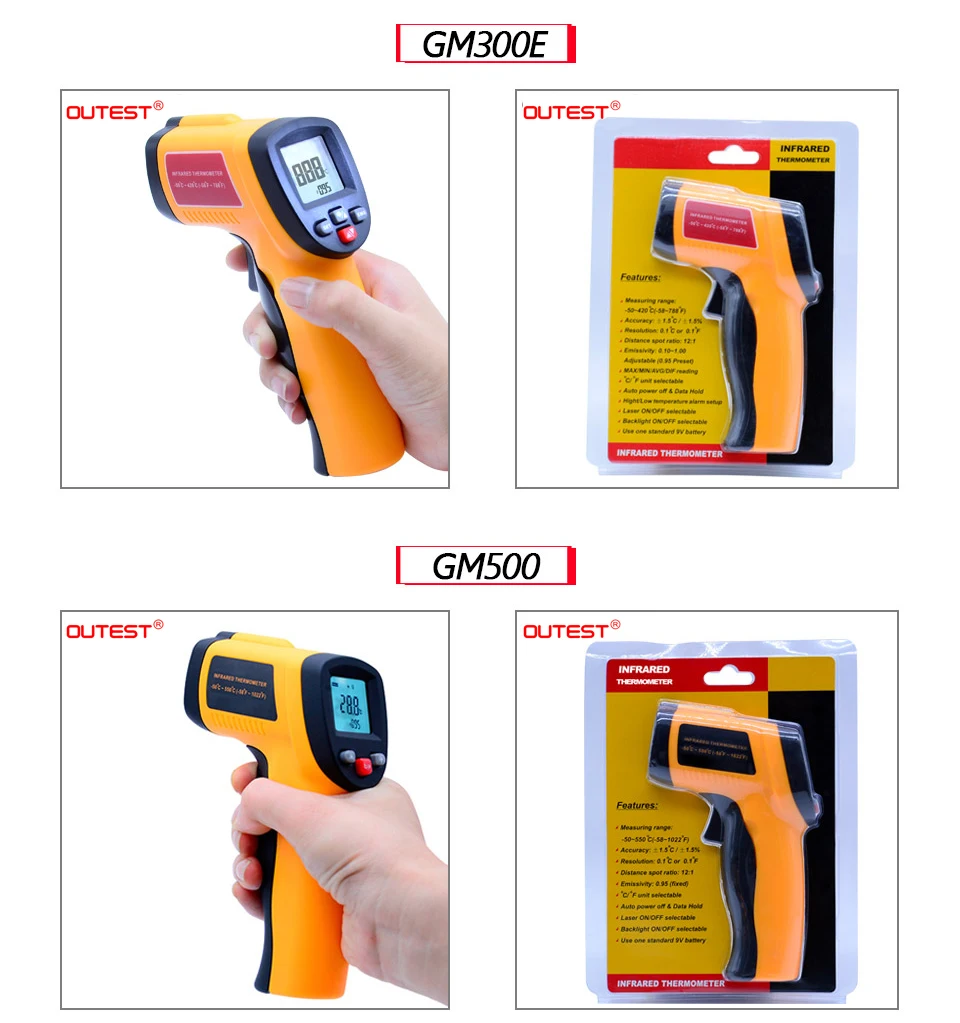

GM300E measurement range: -50~420 C (-58~788 F)
GM550 measurement range: -50~550 C (-58~1022 F)
GM550E measurement range: -50~550 C (-58~1022 F)

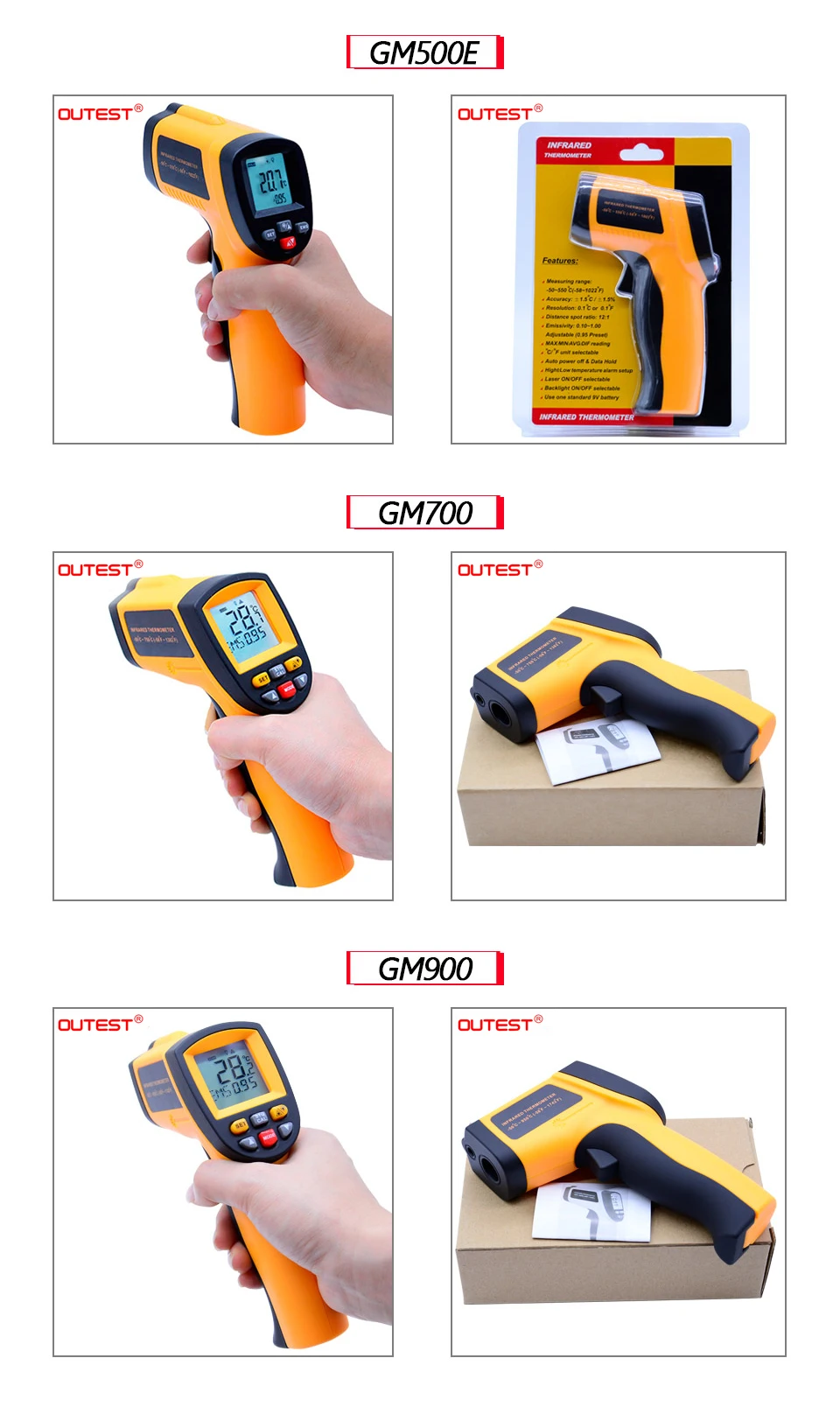

GM700 measurement range: -50~750 C (-58~1382 F) Update
GM900 measurement range: -50~950 C (-58~1742 F) Update
Accuracy: -50 C ~ 0 C ( ± 3 C), 0 C ~360 C (±1.5%)
Emissivity: GM270 / GM320 / GM530 / GM300 / GM550 (0.95 Preset),
GM321 / GM531 / GM300E / GM550E / GM700 / GM900 (0.1 - 1.0 Adjustable)
Repeatability: 1 C or 1% of reading
Resolution: 0.1 C or 0.1 F
Response Time: 500 m / sec, 95% response
Distance to Spot Ration: 12:1 / 8:1 (GM270)
Spectral response: 8~14 μm
Storage Temperature: -20 C ~ 60 C (-4 F ~140 F)
Operating Temperature: 0 C ~ 40°C (32 F ~104 F)
Operating Humidity:10-95% RH non-condensing, up to 30 C (86 F)
2 x AAA 1.5V battery (Not included)

Note:

1.Batteries are not included.
2.We are always in stock.
3.All packages send by AliExpress Standard Shipping and have a tracking number.
4.All products have a 1-year guarantee.
5.This product is not made to be used on humans or animals.

Model N0 Measure Accuracy Resolution Repeatability Response  Spectral Emissivity Distance to  Operating  Power  Dimension
 Range time  response Spot size Temperature Supply
GM270 -32~280C  ±1.5C 0.1C or 0.1F 1% of reading or 1C 500mSec 8-14um 0.95 Preset 8:01 0~40C  1.5V AAA *2 144*93*38
 (-26~536F) 95% response (32~104F)  battery
GM320 -50~380C   ±1.5C 0.1C or 0.1F 1% of reading or 1C 500mSec 8-14um 0.95 Preset 12:01 0~40C  1.5V AAA *2 144*93*38
 (-58~716F)   95% response (32~104F)  battery
Update
GM321 -50~380C   ±1.5C 0.1C or 0.1F 1% of reading or 1C 500mSec 8-14um 0.1-1.0 12:01 0~40C  1.5V AAA *2  144*93*38
(-58~716F) 95% response  Adjustable (32~104F) battery
GM530 -50~530C   ±1.5C 0.1C or 0.1F 1% of reading or 1C 500mSec 8-14um 0.95 Preset 12:01 0~40C  1.5V AAA *2 144*93*38
(-58~986F) 95% response (32~104F)  battery
GM531 -50~530C   ±1.5C 0.1C or 0.1F 1% of reading or 1C 500mSec 8-14um 0.1-1.0  12:01 0~40C  1.5V AAA *2 144*93*38
(-58~986F) 95% response Adjustable (32~104F)  battery
GM300 -50~420C  ±1.5C 0.1C or 0.1F 1% of reading or 1C 500mSec 8-14um 0.95 Preset 12:01 0~40C  9V(6F22) 153*101*43
 (-58~788F) 95% response (32~104F)  battery)
GM300E -50~420C  ±1.5C 0.1C or 0.1F 1% of reading or 1C 500mSec 8-14um 0.1-1.0  12:01 0~40C 9V(6F22) 153*101*43
 (-58~788F) 95% response Adjustable  (32~104F)  battery)
GM550 -50~550C   ±1.5C 0.1C or 0.1F 1% of reading or 1C 500mSec 8-14um 0.95 Preset 12:01 0~40C  9V(6F22) 153*101*43
(-58~1022F) 95% response (32~104F)  battery)
GM550E -50~550C  ±1.5C 0.1C or 0.1F 1% of reading or 1C 500mSec 8-14um 0.1-1.0  12:01 0~40C 9V(6F22)  153*101*43
 (-58~1022F) 95% response Adjustable  (32~104F) battery)
GM700 -50~750C   ±1.5C 0.1C or 0.1F 1% of reading or 1C 500mSec 8-14um 0.1-1.0  12:01 0~40C 9V(6F22) 172*111*50
(-58~1382F)   95% response Adjustable  (32~104F)  battery)
Update
GM900 -50~950C   ±1.5C 0.1C or 0.1F 1% of reading or 1C 500mSec 8-14um 0.1-1.0  12:01 0~40C  9V(6F22)  172*111*50
(-58~1742F)  95% response Adjustable (32~104F) battery)
Update
