OPEN-SMART With Backlight LED 3.3V 1.8 Inch 128 * 64 Serial SPI Monochrome LCD Shield Breakout Board Module for Arduino
US$ 4.47
US$ 6.84
: In stock
:
Wholesale electronics best price, bulk price,wholesale accessories Features Note: If you want to place the bulk order that the stock is not enough, please contact with us. This is a...
Share:
Wholesale electronics best price, bulk price,wholesale accessories
We are a foreign trade technology company headquartered in Shenzhen, specialized in serving Southeast Asian customers, providing customers with one-stop services such as electronic materials, electronic products, computers and peripheral equipment, crafts, electronic watches, wearables, overall solutions, etc. We can also help Southeast Asian customers to purchase a variety of goods from China, providing high quality products.
Find the right supplier for customers in China, grow together with customers, create miracles and the future.
The founder of the company has served in the electronics industry for more than 20 years, has rich experience and technology, has its own professional electronics factory and rich supply chain.
Features
Note: If you want to place the bulk order that the stock is not enough, please contact with us.

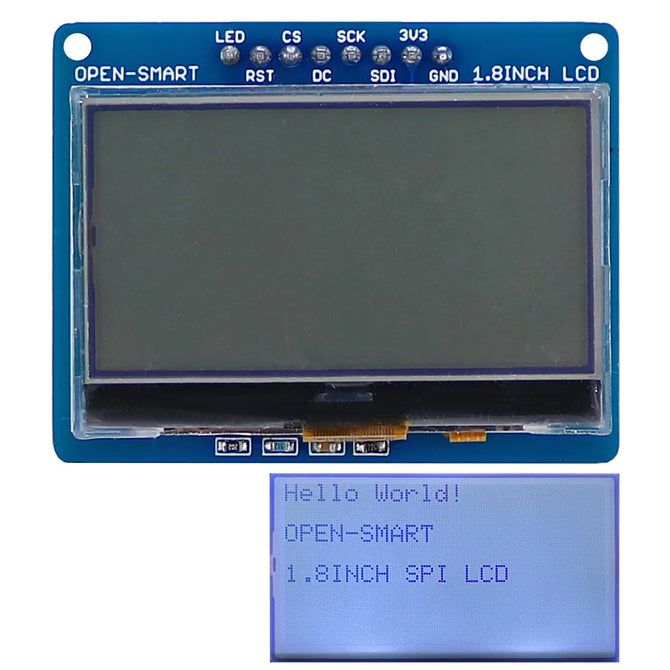

This is a 1.8 inch LCD expansion board with serial SPI interface. This display has a controller built into it with RAM buffering, so that it is easy to control by MCU.
It leads out the pins of the TFT and breakout pins pitch is 2.54mm, so the secondary development is easy.
It leads out PAD pins so that you can plug it onto the breadboard or use cable to connect it for Arduino.
- Can use it to display characters, graphics and BMP format images.
- Compatibility: Because the logic level is 3.3V, it is compatible with 3.3V board, you can connect to it OPEN-SMART Board with 5V/3.3V power switch. You need to add a level conversion circuit if you use for Arduino.
You can also connect it to other 3.3V MCU directly.
- Resolution: 128*64, monochrome
- Display size: 1.8 inch;
- Active area: 38.8x19mm
- PCB size: 47.6x37mm
- Drive IC: ST7567
- Operating voltage: 3.3V;
- Logic level: 3.3V;
- Operating current: the maximum is 5mA
- IO Port Package: PAD is available, the pin pitch is 2.54mm.
- Backlight: LED pin can connect to external backlight control circuit to control the brightness of backlight. You can connect it to GND to turn on the backlight all day.
- Great for DIY.
Photos
Part List (Schematics and program can be sent , Please contact us)
1 x Module
