OPEN-SMART Rich Sensor Module Kit C with Atmega328P Board MP3 RTC NTC LCD IR Temperature Touch Module Compatible for Arduino

Wholesale electronics best price, bulk price,wholesale accessories

If you want to place the bulk order that the stock is not enough, please contact with us.

NOTE: Due to shipping restrictions, we donot supply the CR1220 battery in the DS1307 RTC module and the same one in the IR remote.

NOTE: You can go to our google drive to watch the video and download the documents.

This is a rich multifunctional kit compatible for Arduino.

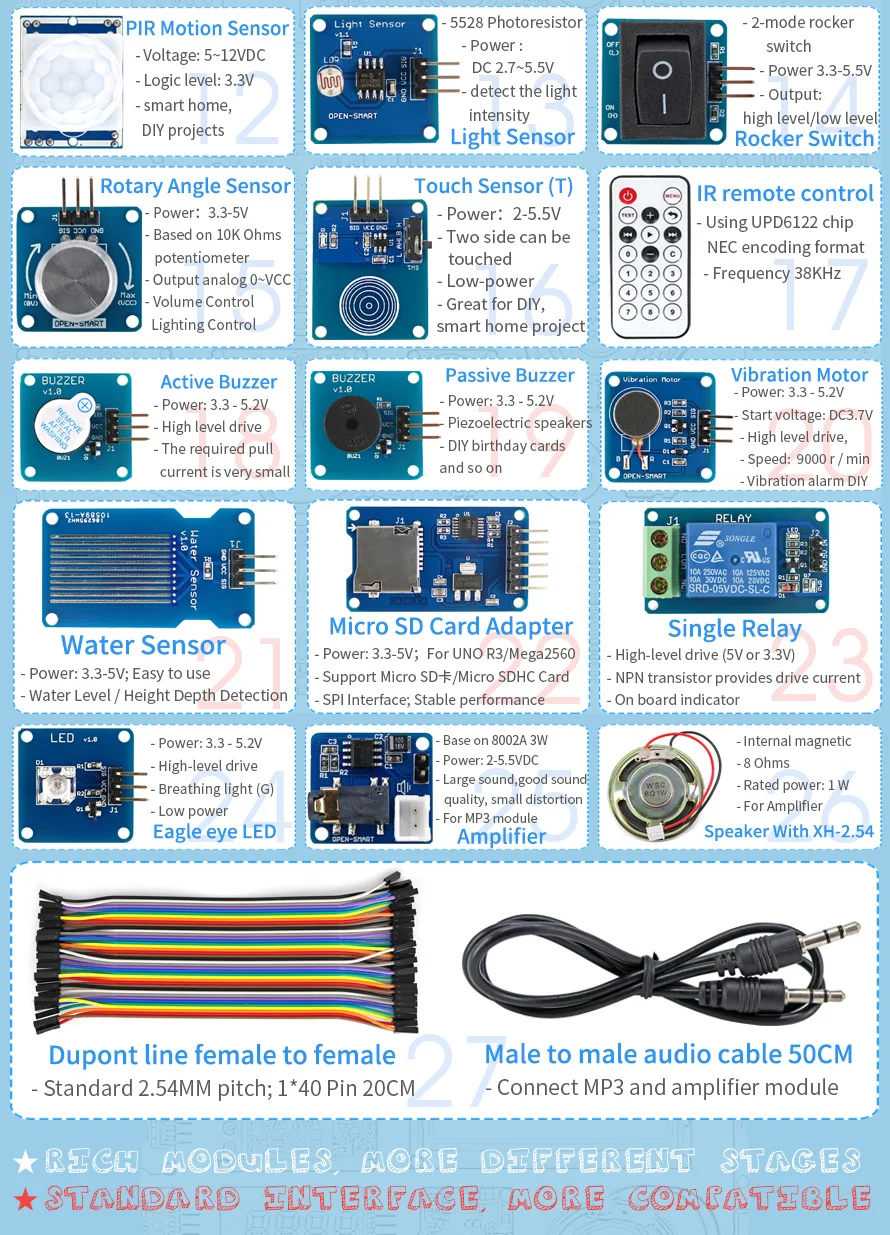

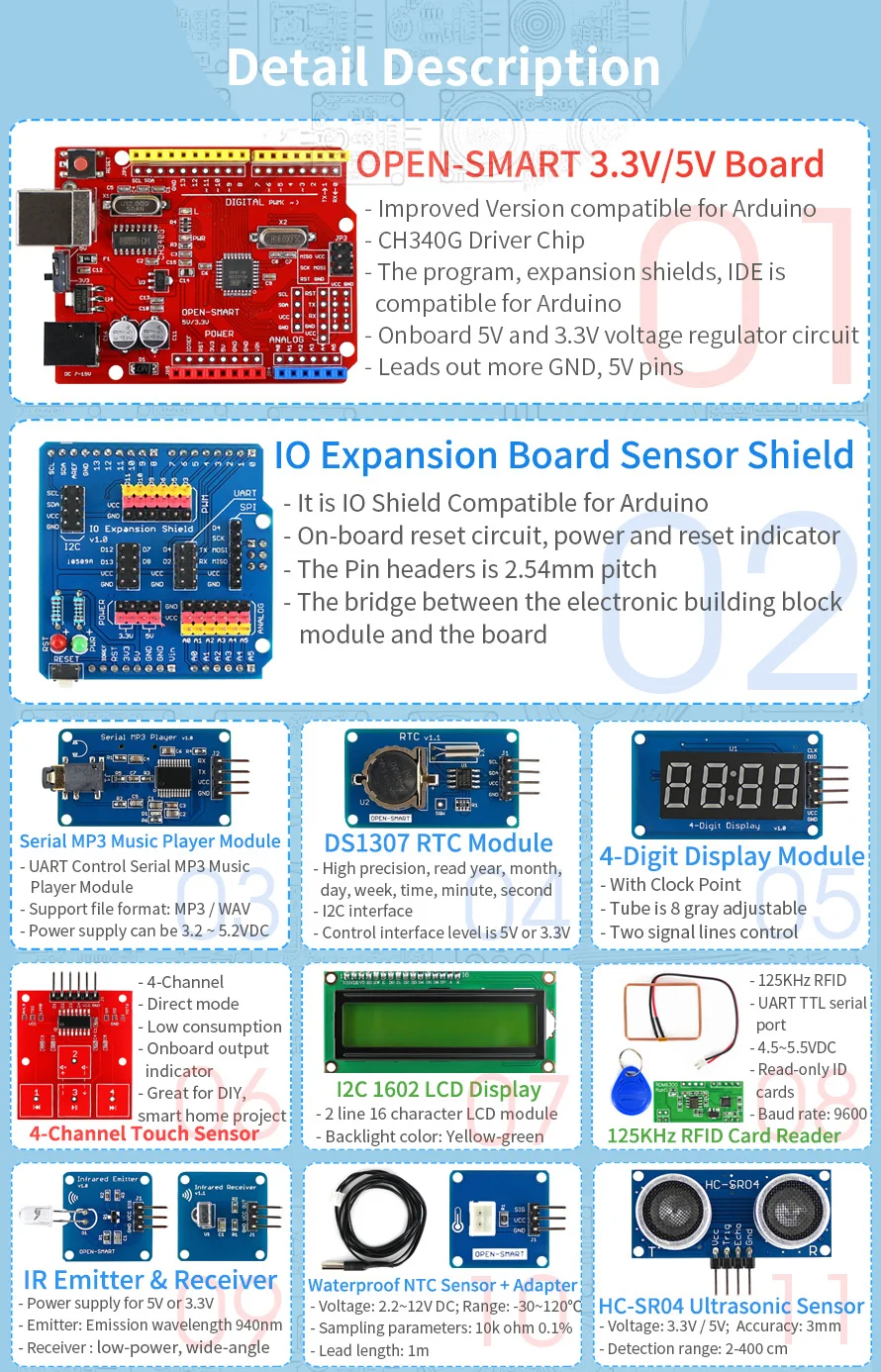

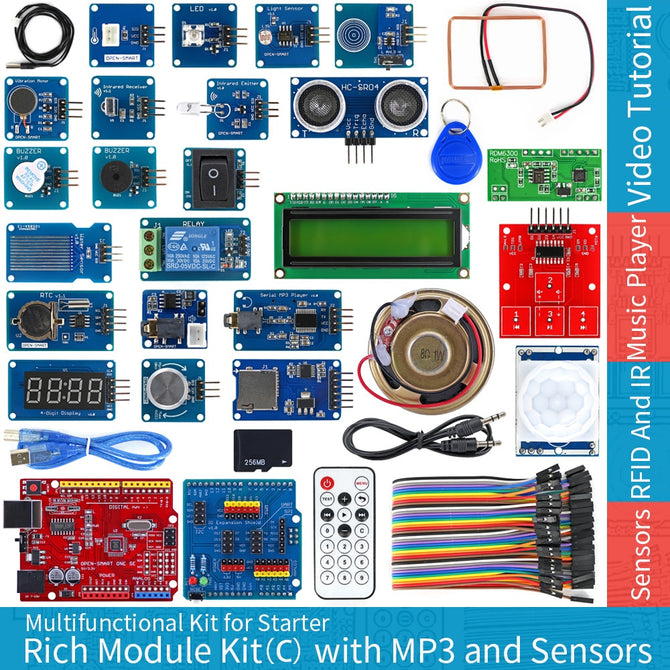

The kit include a Rich OPEN-SMART board and 9 sensor module, 3 display module and other accessories.

You can use the kit to do many projects such as Speak Clock / Speak Temperature / Clock display / Infrared Remote Control / Touch Control MP3 / MP3 Player / Ultrasonic Distance Measurement.

Features:

- Use the compatible bootloader.

- The program, expansion shields, IDE is compatible for Arduino.

- Peripheral modules are rich in type, rich library, simple sketch codes, easy functions to use.

- Use through hole mount type B USB connector, consistent for Board, ruggedness and long service life.

- You can burn the program with the type A male to type B male cable.

- Onboard 500mA resettable fuse to protect power supply from the USB port and the DC jack at the same time.

- USB interface driver chip: CH340G, compatible with win7, win8, linux, MAC OS.

- Microcontroller: Atmel ATmega328P

- Working voltage: 5V

- IO logic voltage: 5V

- Working current: 500mA (Max)

- Digital I/O Pins: 14 (of which 6 provide PWM output)

- Flash Memory: 32 KB of which 2 KB used by bootloader

- SRAM: 2KB

- EEPROM: 1KB

- Clock Speed: 16 MHz.
