OPEN-SMART R3 DIY Module ATmega328P Programmer Development Board Built in Bootloader Compatible for 328P Board

Wholesale electronics best price, bulk price,wholesale accessories

Description

Note: If you want to place the bulk order that the stock is not enough, please contact with us.

- It has been burned bootloader compatible for 328P Board.
- It uses a locking seat, so it is easy to replace the chip.
- You can use FT232 USB to TTL module, CH340G module, to burn the program. The USB port onboard is only for supplying power but not uploading code.
- The program, expansion shields, development environment IDE is compatible for 328P Board.
- Microcontrollers: ATmega328P-PU
- Operating voltage: 5V
- IO interface logic voltage: 5V
- Operating Current: 500mA (max)
- Digital I / O pins: 14 (of which 6 can provide PWM output)
- Analog input pins: 6
- Clock frequency: 16MHz
- On-board test indicator LED, and the beginners can program to control it.
- Onboard power indicator.
- Bootloader burning Interface: ICSP
- Programming Interface: GND, 5V, RX, TX, DTR

Can upload codes by CH340G Debugger (link):

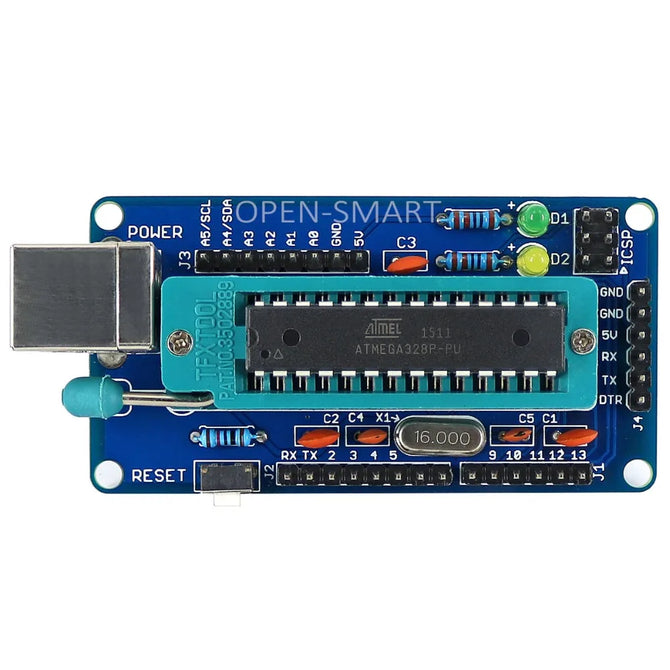

Photos

Part List (Schematics and program can be sent via e-mail,Please contact us)

1 x  Board
