OPEN-SMART Easy IO Shield for Pro Mini Easy-plug Colorful XH 2.54mm Socket Sensor Module Expansion Board for Arduino Pro Mini

Wholesale electronics best price, bulk price,wholesale accessories

Description

If you want to place the bulk order that the stock is not enough, please contact with us.

This Easy IO Expansion Shield is compatible for Arduino Pro Mini board.

It is a connection bridge between the electronic building block module and the board.

It extends SPI port, UART, I2C, PWM and analog INPUT pins ch the modules to the board and accelerate project development progress.

Easy to plug OPEN-SMART products with XH cable to this shield and do not need to pay attention to the connection. So it is great for Training institutions and visual programming education.

-------------You can also buy the Easy IO Shield for Pro Mini Kit Here （Link）:-----------------

-----------------------------------------------------------------------------------------------------------------------------

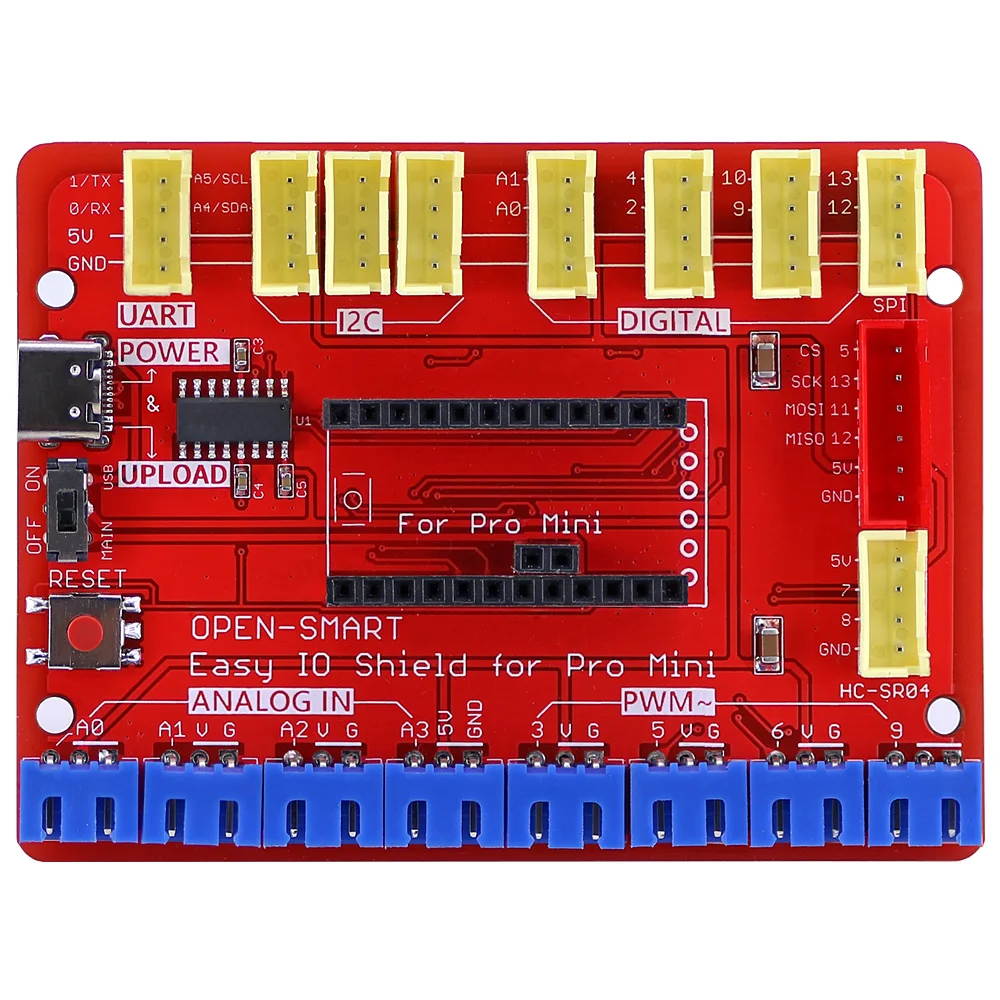

Features:

- Compatible for Arduino Pro Mini;

- Onboard CH340C USB to UART IC;

- Onboard typeC USB: can supply power and upload code to pro mini;

- Onboard switch to select whether the power is from the typeC USB or the board.

- Onboard suitable reset button.

- All sockets onboard are XH 2.54mm pitch;

- I2C socket number: 3;

- UART socket number: 1;

- Hardware SPI socket: 1,for TF card module to store some information;

- 3PIN socket number: 8;

- 4PIN socket number: 9;

- Onboard 4PIN socket for HC-SR04 ultrasonic sensor module;

- Analog input socket number: 4(A0, A1, A2, A3),also can be digital input / output;

- PWM output socket number: 4(D3, D5, D6, D9).

- Colorful socket: 3pin is blue, 4pin is yellow, 6pin is red.

Dimensions for the Easy IO Shield:

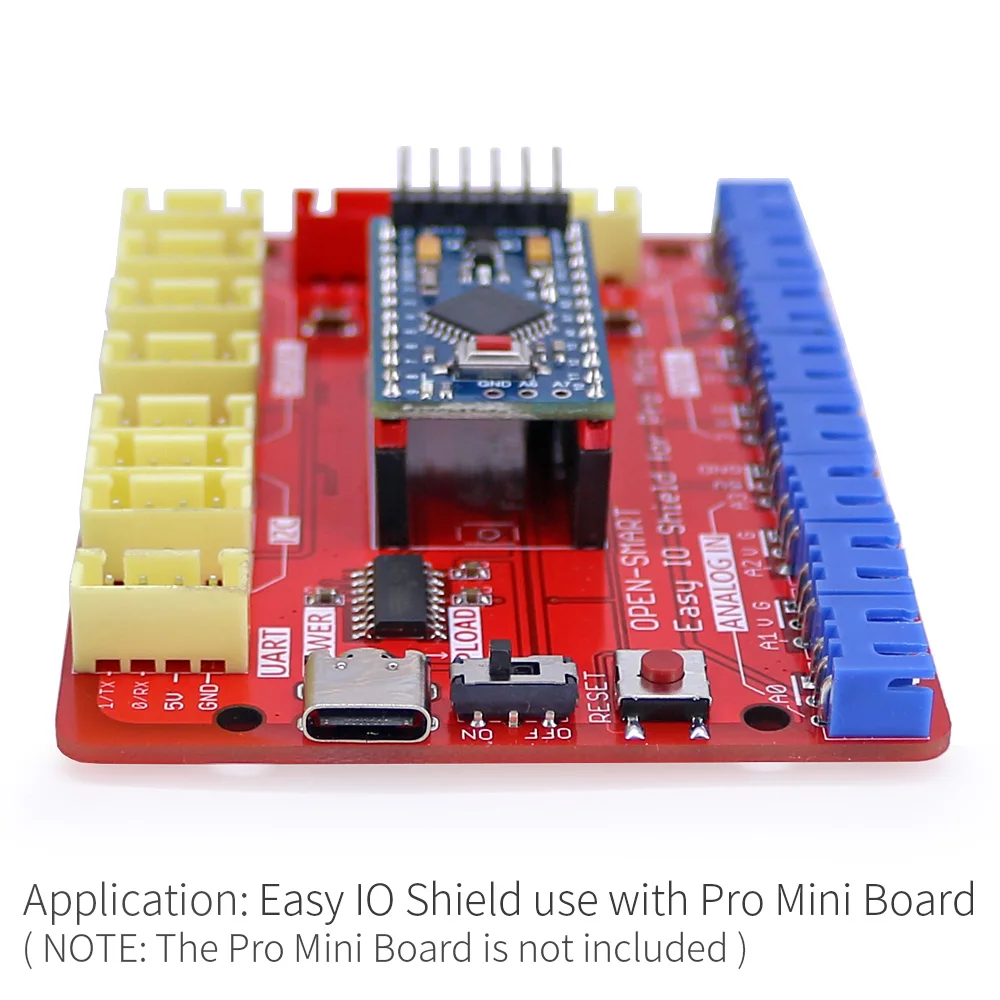

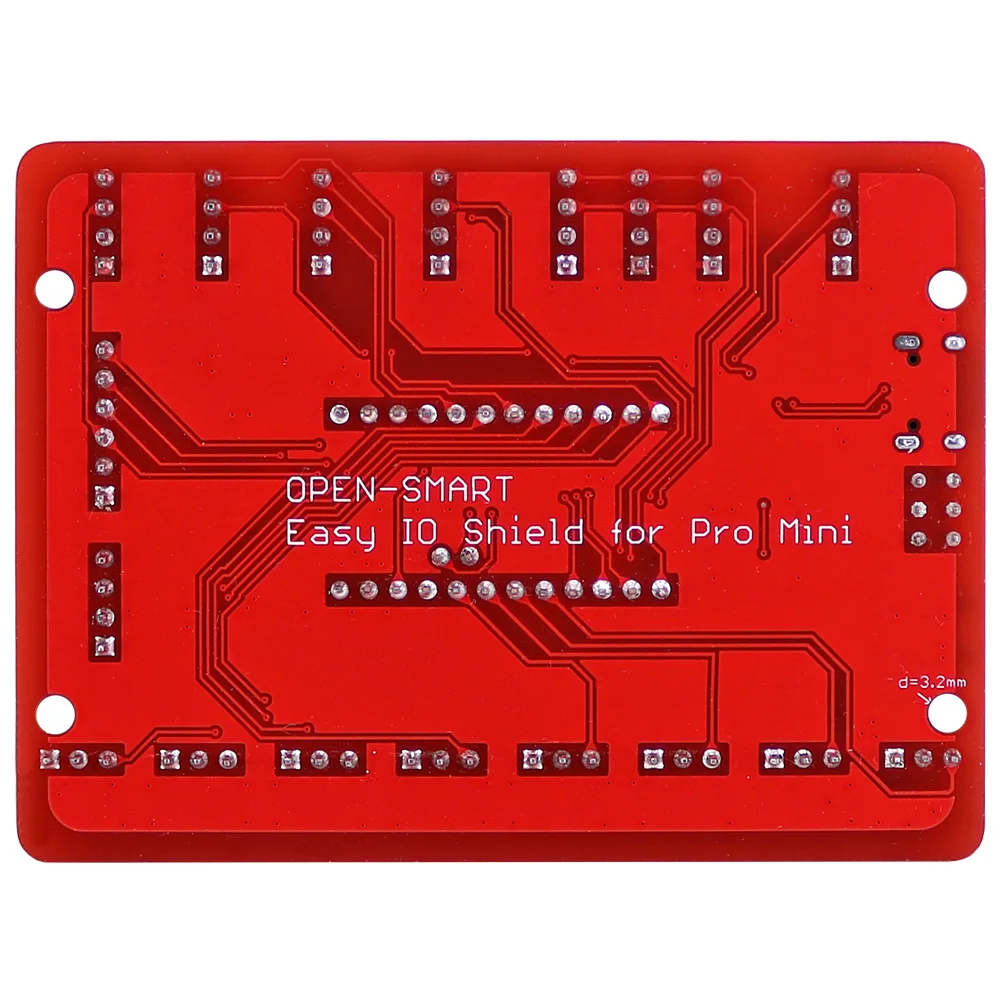

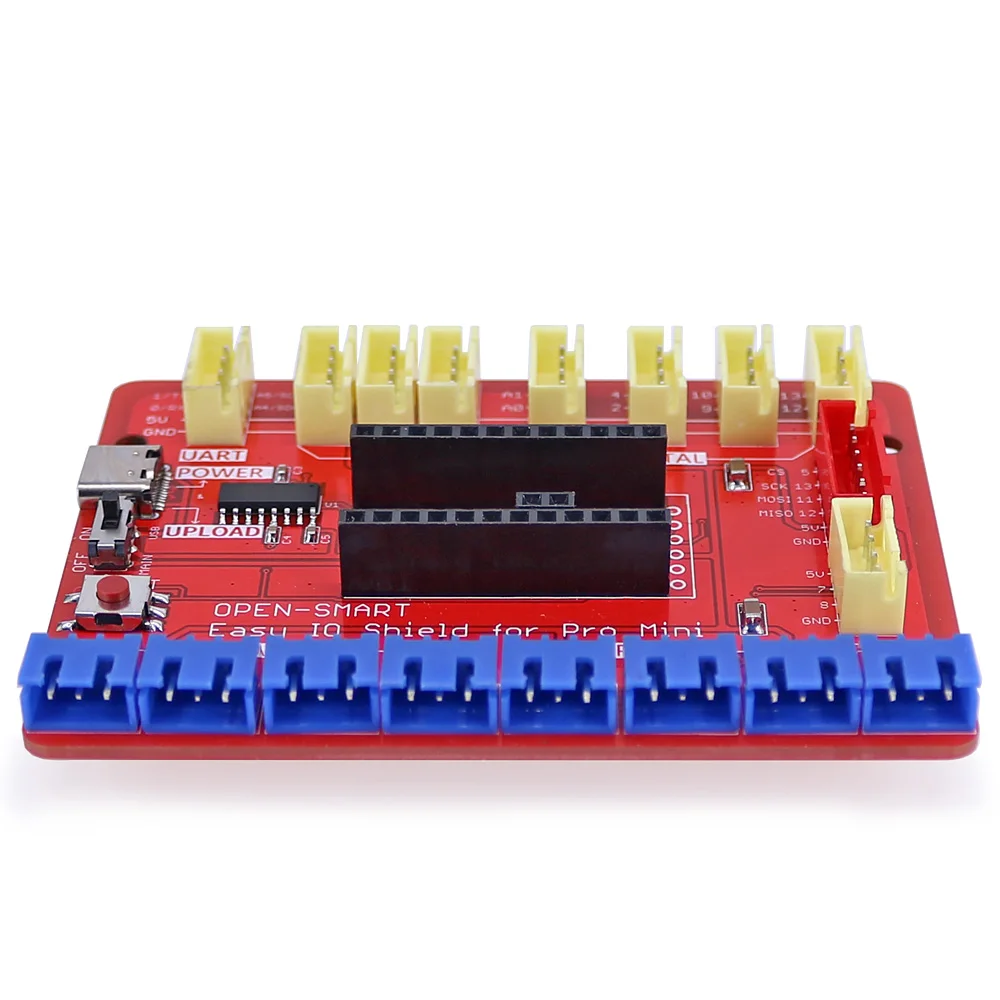

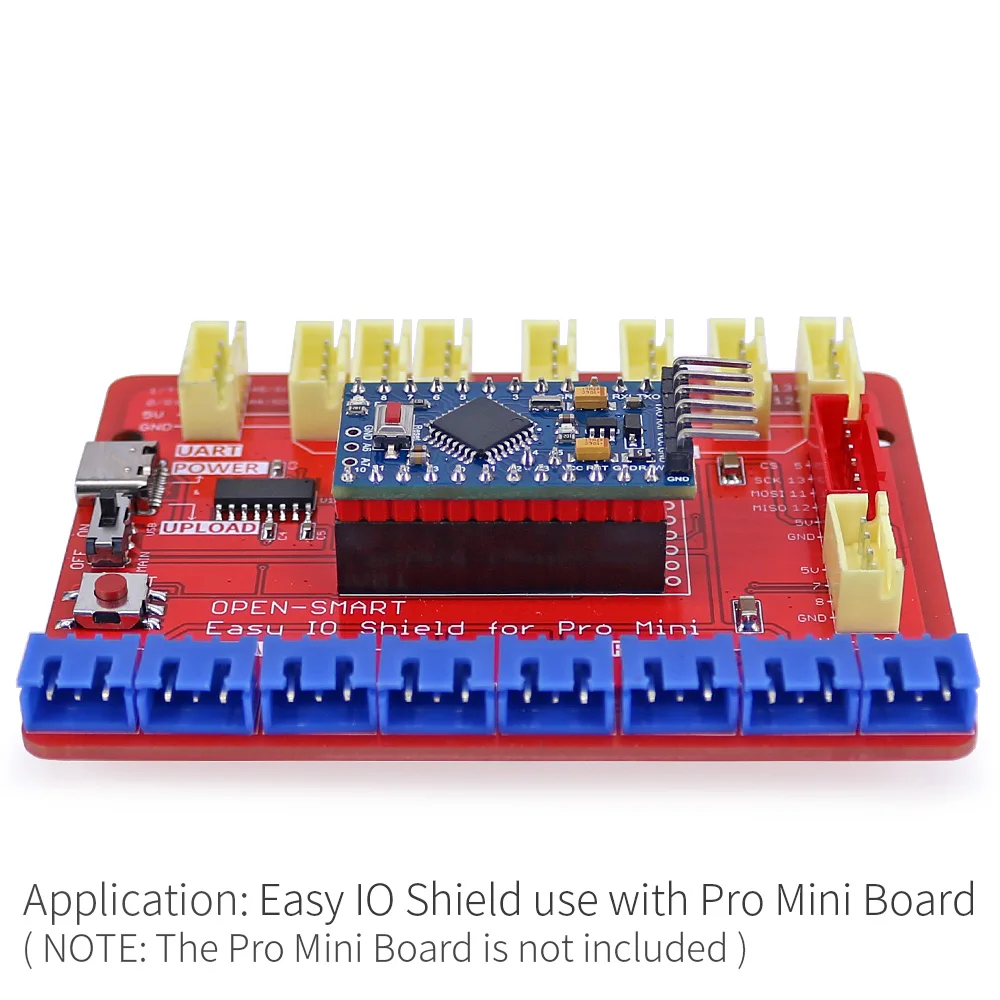

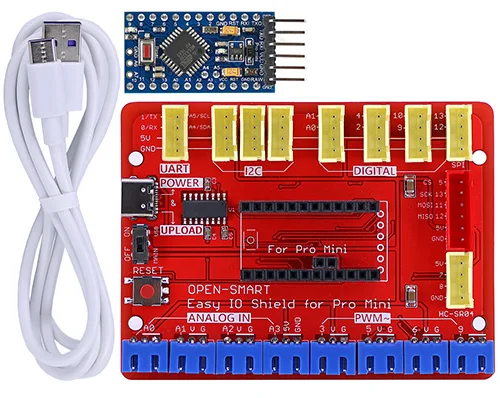

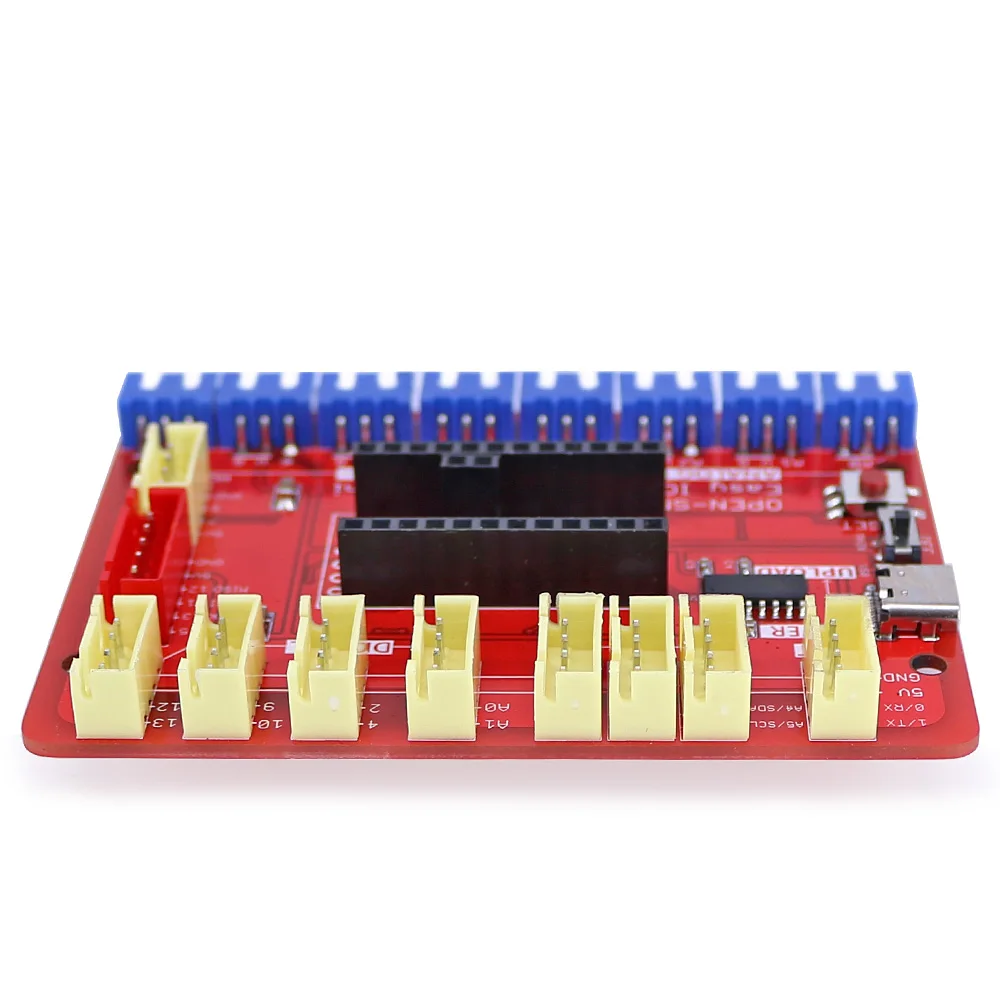

Photos

Part List (Schematics and program can be sent ,Please contact us)

1 x Board
