OPEN-SMART ATmega328P Programmer Development-Board DIY Soldering Parts with Tutorial Compatible for Arduino
US$ 7.06
US$ 10.86
: In stock
:
Wholesale electronics best price, bulk price,wholesale accessoriesDescriptionNote: If you want to place the bulk order that the stock is not enough, please contact with us.- The kit is very suitable...
Share:
Wholesale electronics best price, bulk price,wholesale accessories- The kit is very suitable for enthusiasts to make their own DIY board compatible for Arduino.
1 x ATmega328P-PU
We are a foreign trade technology company headquartered in Shenzhen, specialized in serving Southeast Asian customers, providing customers with one-stop services such as electronic materials, electronic products, computers and peripheral equipment, crafts, electronic watches, wearables, overall solutions, etc. We can also help Southeast Asian customers to purchase a variety of goods from China, providing high quality products.
Find the right supplier for customers in China, grow together with customers, create miracles and the future.
The founder of the company has served in the electronics industry for more than 20 years, has rich experience and technology, has its own professional electronics factory and rich supply chain.
Description
Note: If you want to place the bulk order that the stock is not enough, please contact with us.
- The kit is very suitable for enthusiasts to make their own DIY board compatible for Arduino.
- With the help of the soldering tutorial, the soldering is easy and convenient.
- You can use the official board to burn bootloader of this board.

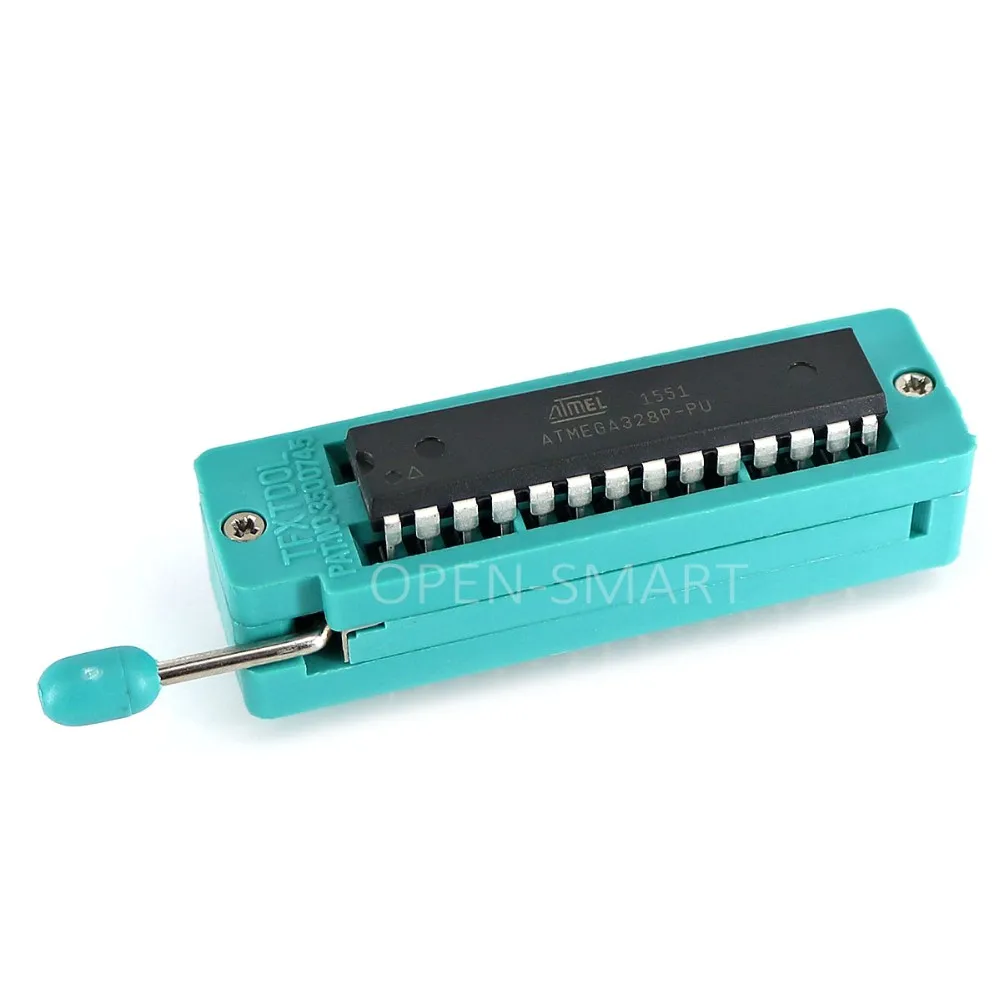

- It uses a locking seat, so it is easy to replace the chip.
- You can use FT232 USB to TTL module or CH340G module to burn the program.
- The program, expansion shields, development environment IDE is compatible for Arduino.
- Microcontrollers: ATmega328P-PU.
- Operating voltage: 5V.
- IO interface logic voltage: 5V.
- Operating Current: 500mA (max).
- Digital I / O pins: 14 (of which 6 can provide PWM output).
- Analog input pins: 6.
- Clock frequency: 16MHz.
- On-board test indicator LED, and the beginners can program to control it.
- Onboard power indicator.
- Bootloader burning Interface: ICSP.

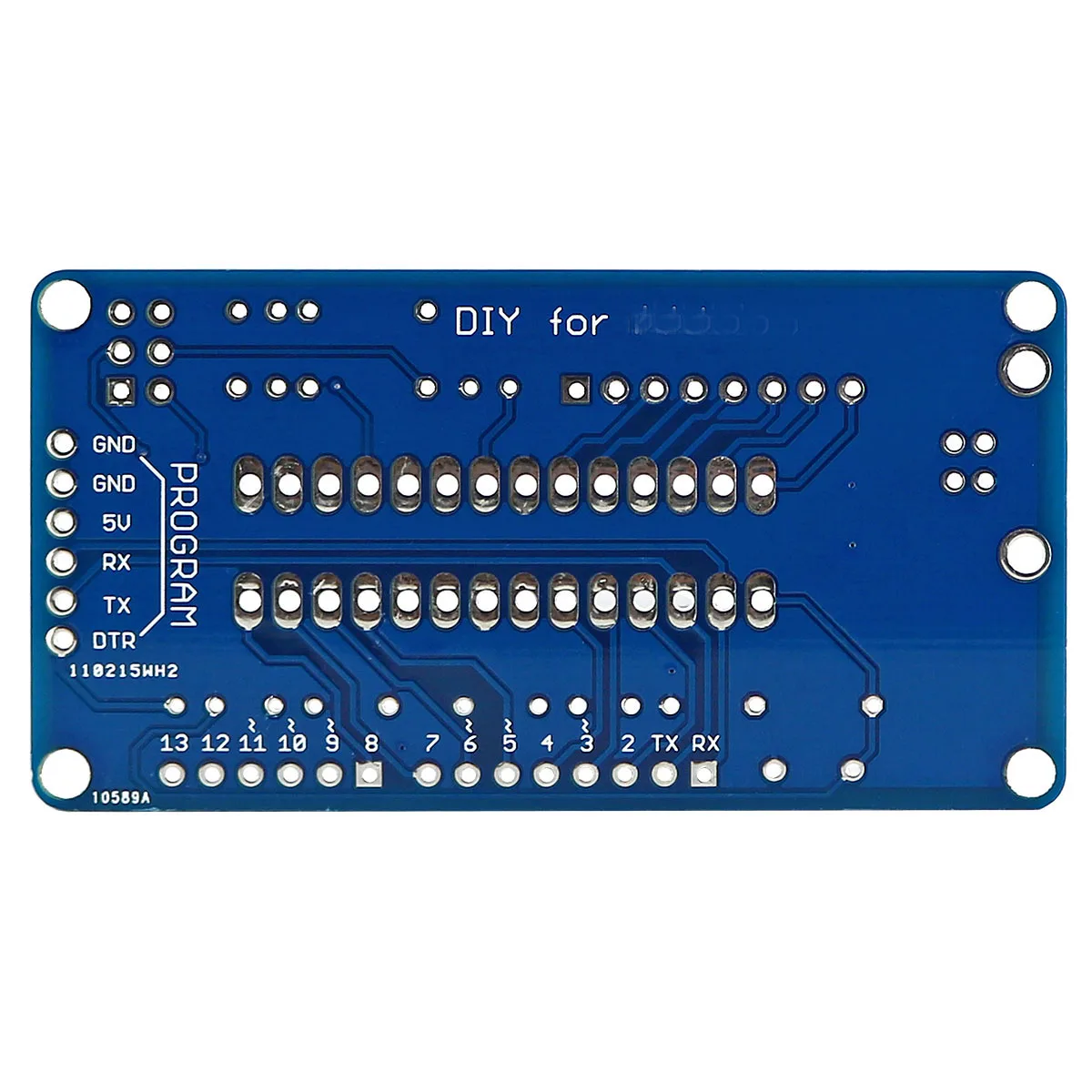

- Programming Interface: GND, 5V, RX, TX, DTR.

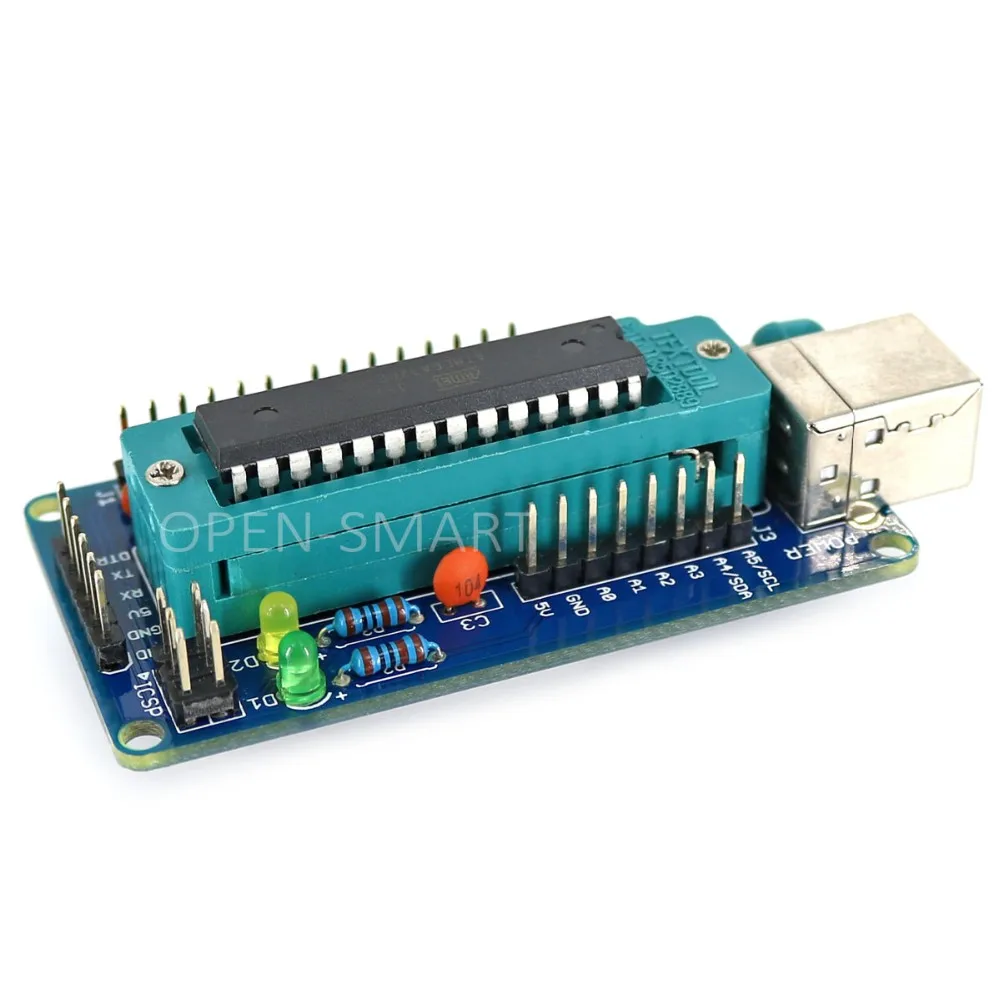

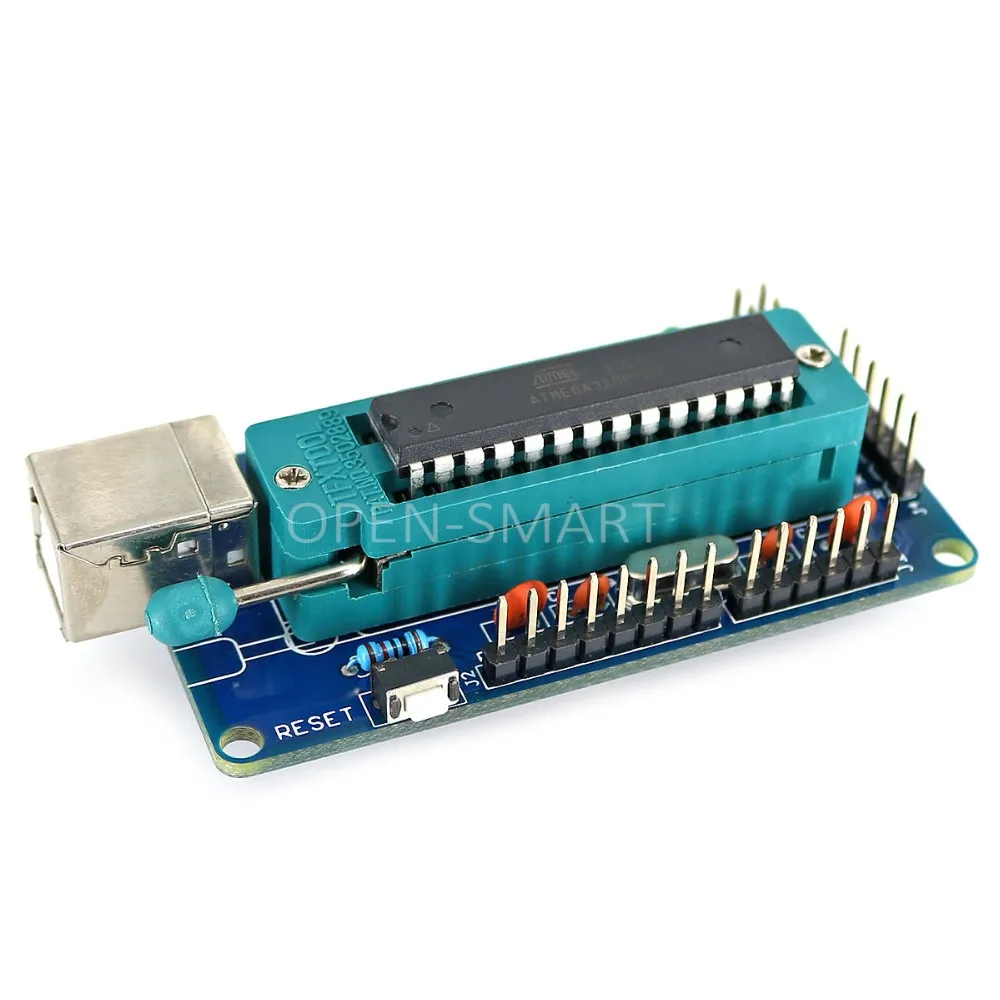

Photos

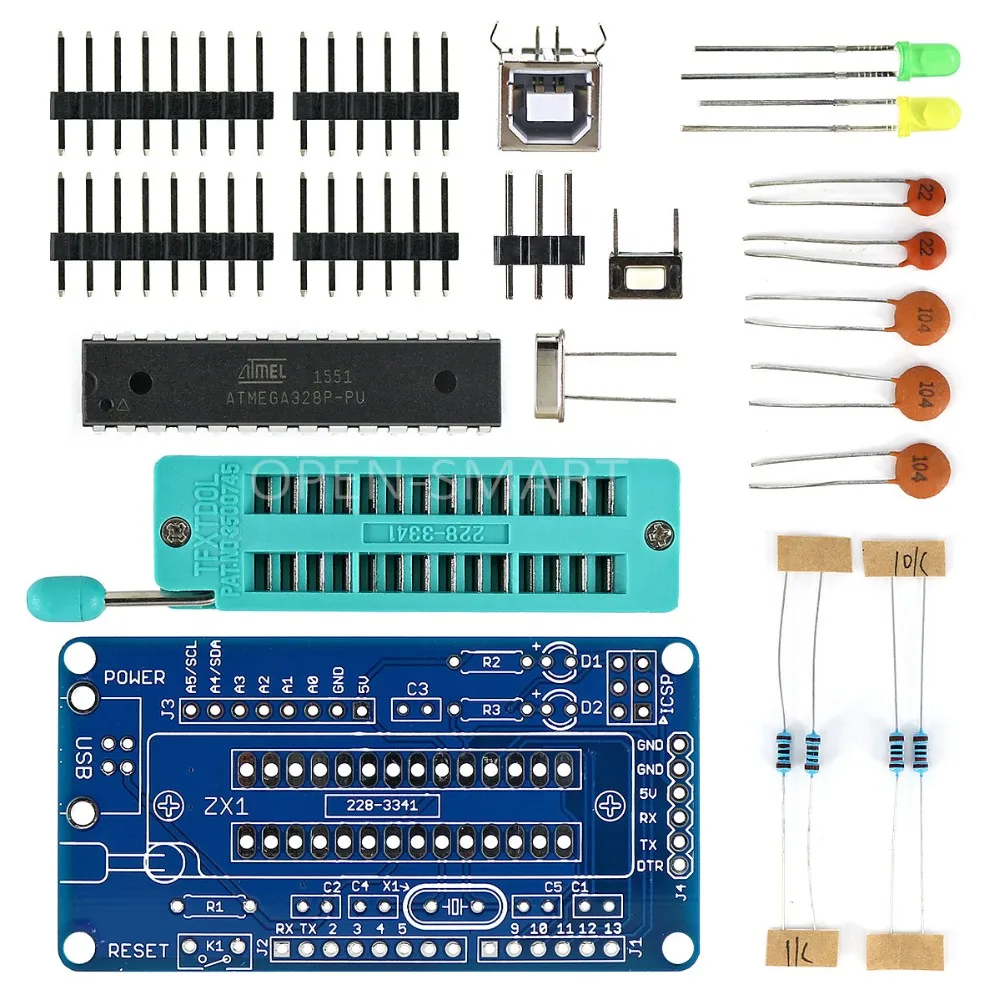

Part List (Schematics and program can be sent, Please contact us)
1 x ATmega328P-PU
3 x 100nF ceramic capacitors
2 x 22pF Ceramic capacitors
2 x 10Kohm metal film resistors
2 x 1Kohm metal film resistors
1 x 3mm green LED
1 x 3mm yellow LED
1 x 2X3P pin header
2 x 1X6P pin headers
2 x 1X8P pin headers
1 x Button
1 x USB socket
1 x HC-49S 16MHz crystal oscillator
1 x Chip locking seat 228-3341
