OPEN-SMART 5V / 3.3V Compatible Mega2560 Easy Development Board (CH340) on board Sensor IO + Type C USB Cable for Arduino DIY

Wholesale electronics best price, bulk price,wholesale accessories

Description

Note: If you want to place the bulk order that the stock is not enough, please contact with us.

This is a high quality OPEN-SMART Mega2560 Easy board with type-C USB interface and it is based on ATmega2560 chip.

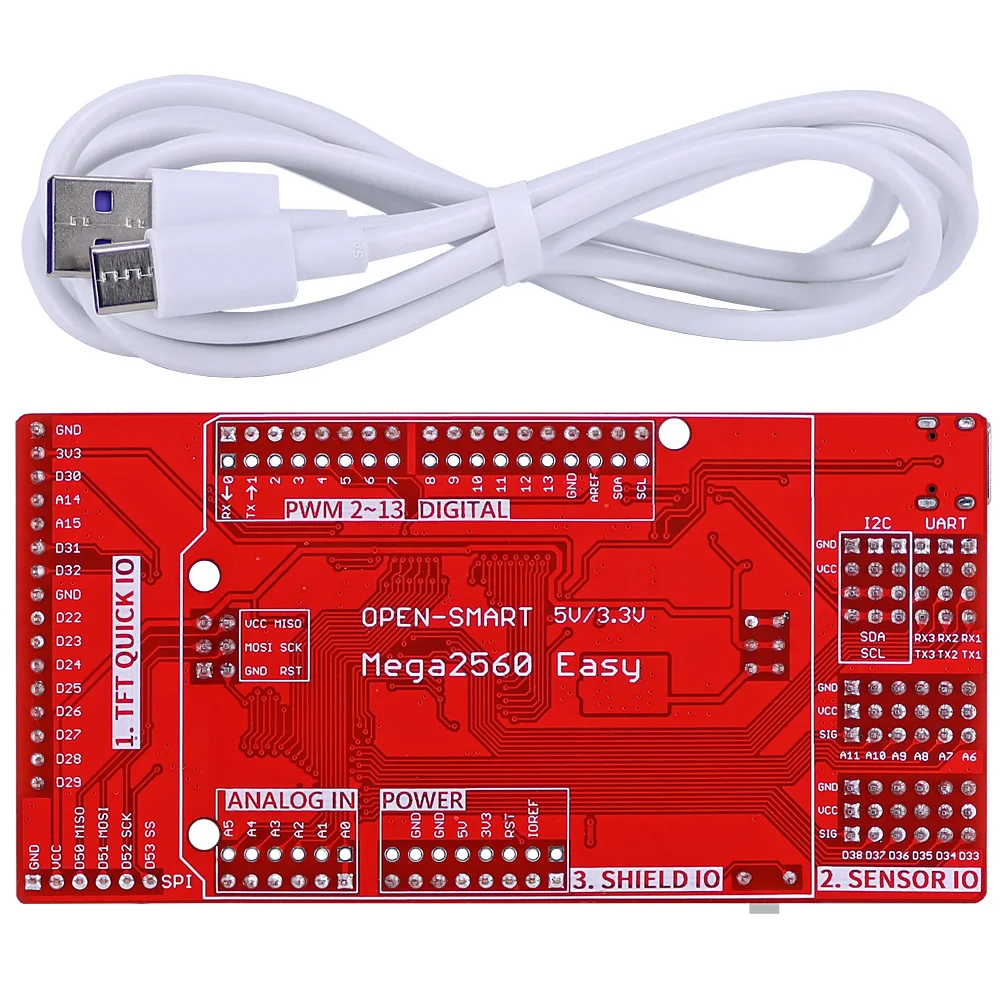

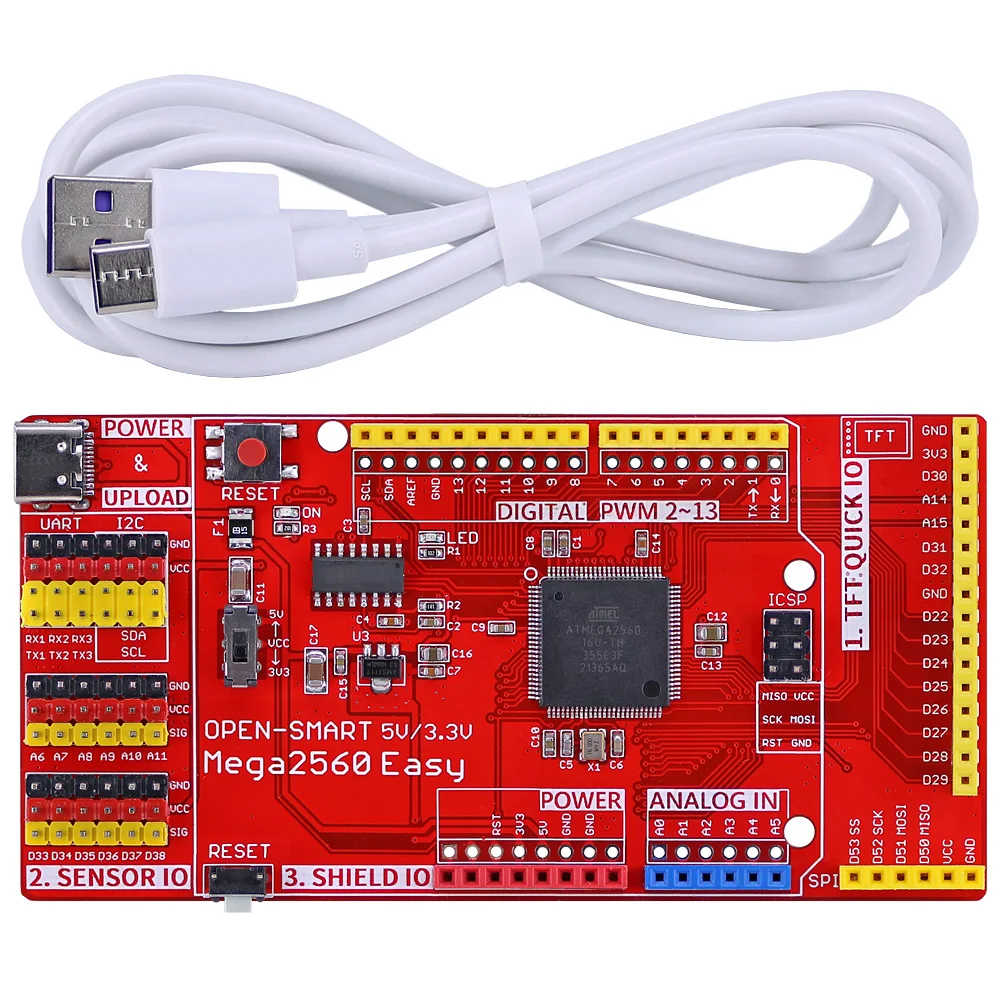

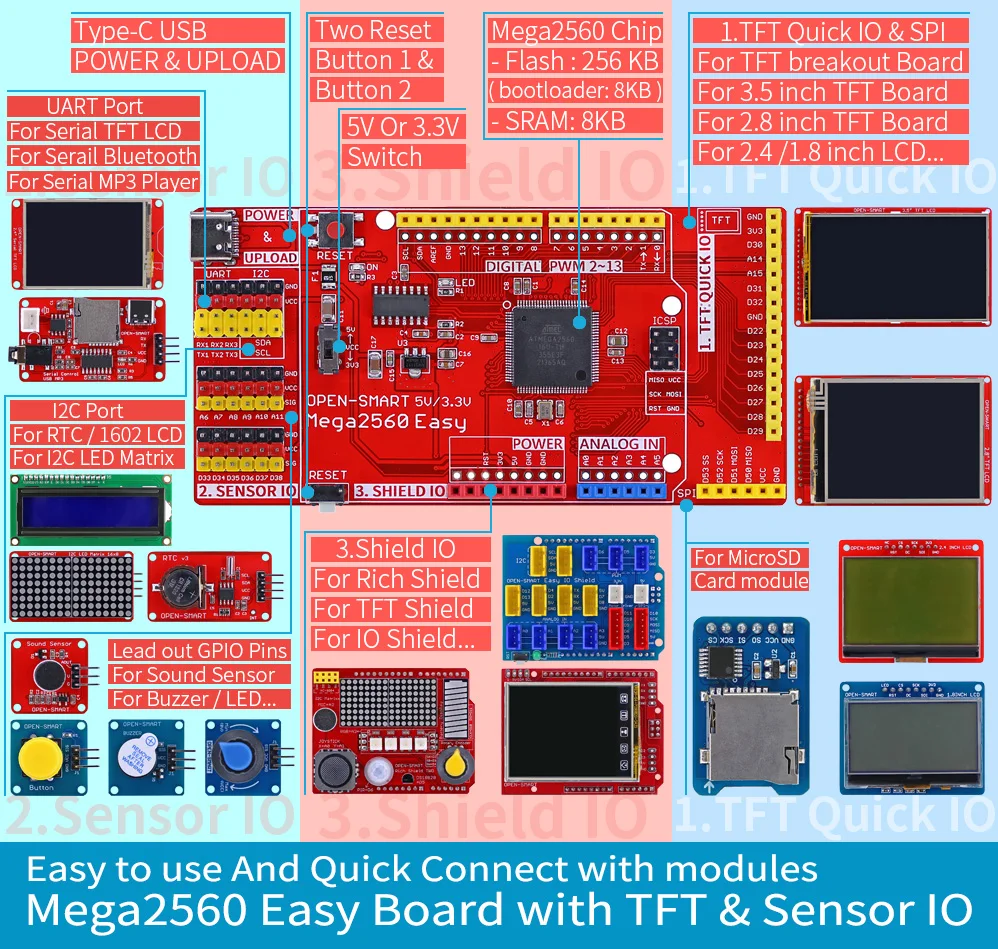

It leads out 3 Parts of pin header groups to help to use it with peripheral modules more easily.

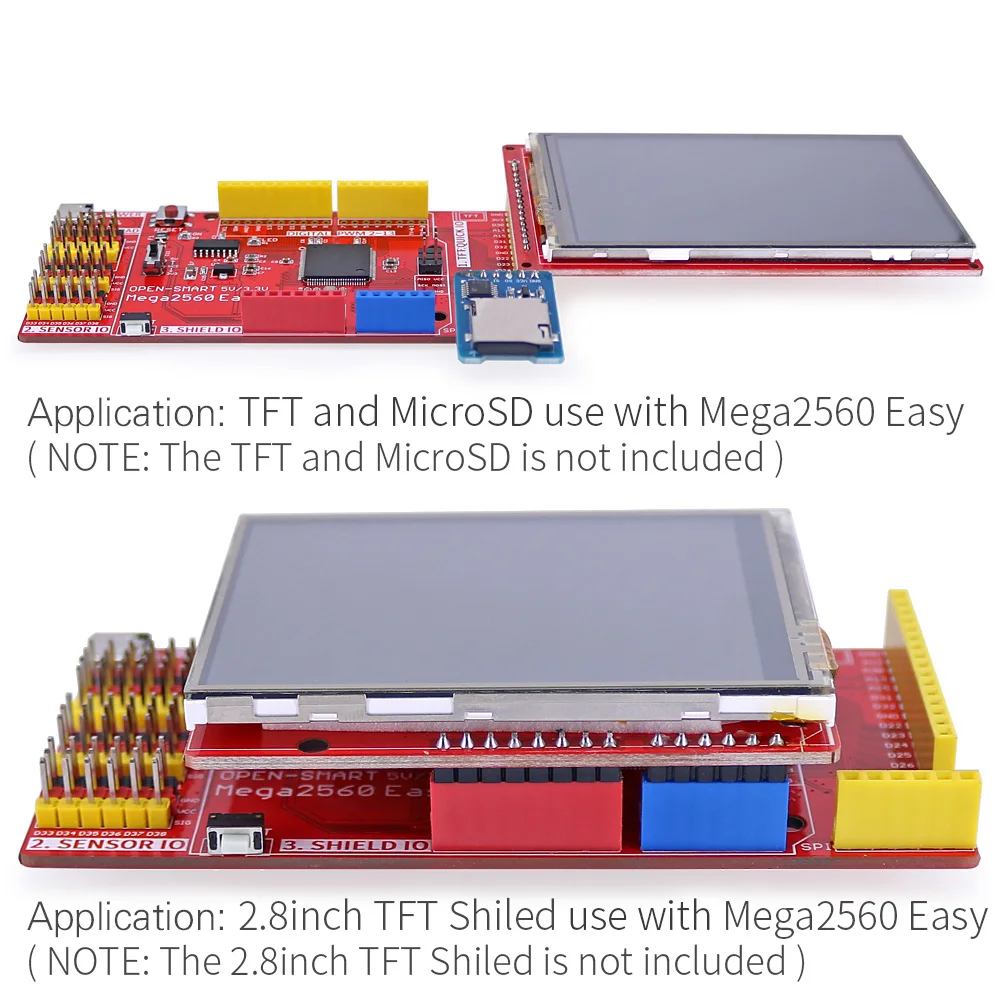

Part 1 is TFT Quick IO. You can plug the OPEN-SMART TFT LCD breakout board and microSD card module onto it directly. So it can display the .bmp picture from the TF card.
And you can usage from the product photos.

Part 2 is Sensor IO. It leads out GND, VCC and Signal Pin that you can connect it with peripheral modules via the 3pin or 4pin cables.

UART port: 3 independent hardware UART ports, support Serial TFT LCD / Serail Bluetooth / Serial MP3 Player.

I2C port: 3 identical ports, support RTC / I2C LED Matrix / 1602 LCD / OLED.

Other GPIO pins: A6~A11, D33~D38, total is 12 pins, support Sound Sensor / Analog Button / Button / Buzzer / LED / Vibration Motor modules.

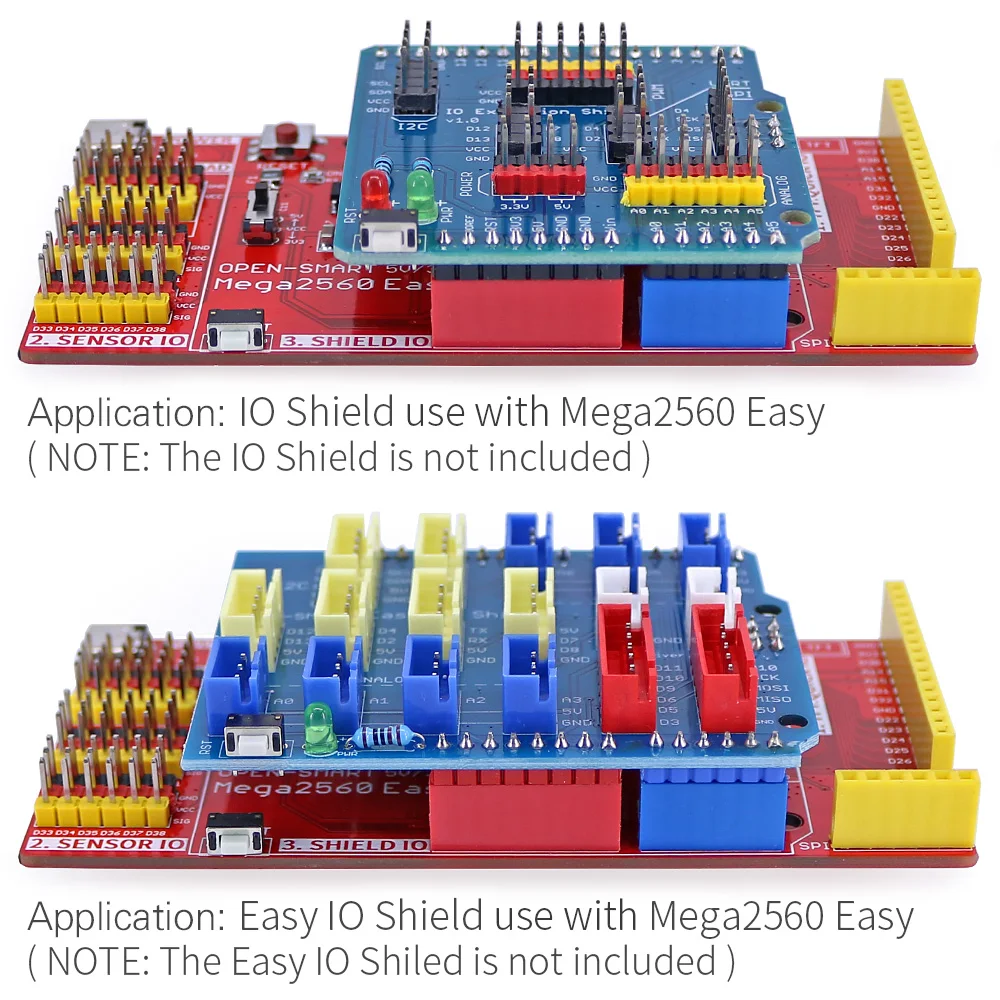

Part 3 is Shield IO. You can easily plug the OPEN-SMART Rich Shield / Rich Shield TWO / TFT LCD Shield / IO Expansion Shield / Easy IO Shield or other compatible shield onto the pin headers of the Shield IO part.

Red board and the colorful female pin headers make your project more impressive and unique. It is very popular for Arduino project production.

There's a switch to choose the system supply voltage, 3.3V or 5V, which is very useful if you want to set the system to 3.3V to save power.

For example, if you want to connect directly 3.3V TFT LCD / ESP8266 wifi / BME280 barometric sensor module for Arduino without level conversion module, you can set the board to be 3.3V level.

Features:

- Use for Arduino Mega2560 bootloader.

- Board type: compatible for Arduino/Genuino Mega or Mega2560.

- Onboard two Reset Buttons, easy to use and Double guarantee for Reset function.

- Leads out 3 kinds of IO expansion pin headers for peripheral modules.

- It is compatible for Arduino Mega2560 program, expansion shields, IDE.

- Use multi-color female header so that the interface is easy to identify and particularly noticeable.

- Use Type C USB connector, support positive and negative connection.

- Onboard 2000mA resettable fuse to protect power supply from the USB port.

- You can burn the program with the type A male to type C male cable.

- Onboard 5V and 3.3V voltage regulator circuit.

- This board is ideal for learners want to learn for Arduino and make creative projects.

- On-board test indicator LED, and you can program to control it.

- USB interface driver chip: CH340, compatible with win7, win8,win10, linux, MAC OS.

- Microcontroller: ATmega2560:

- Working voltage: 5V or 3.3V.

- IO logic voltage: 5V or 3.3V;

- Working current: 2000mA (Max).

- Digital I/O Pins: 58 (of which 14 provide PWM output, 16 provide analog input).

- I2C port: 1 (two groups of pin headers share the same I2C port).

- Serial UART port: 4 (Serial0 for programming, you can use Serial1 / Serial2 / Serial3).

- Flash Memory: 256 KB of which 8 KB used by bootloader.

- SRAM: 8KB.

- EEPROM: 4KB.

- Clock Speed: 16 MHz.

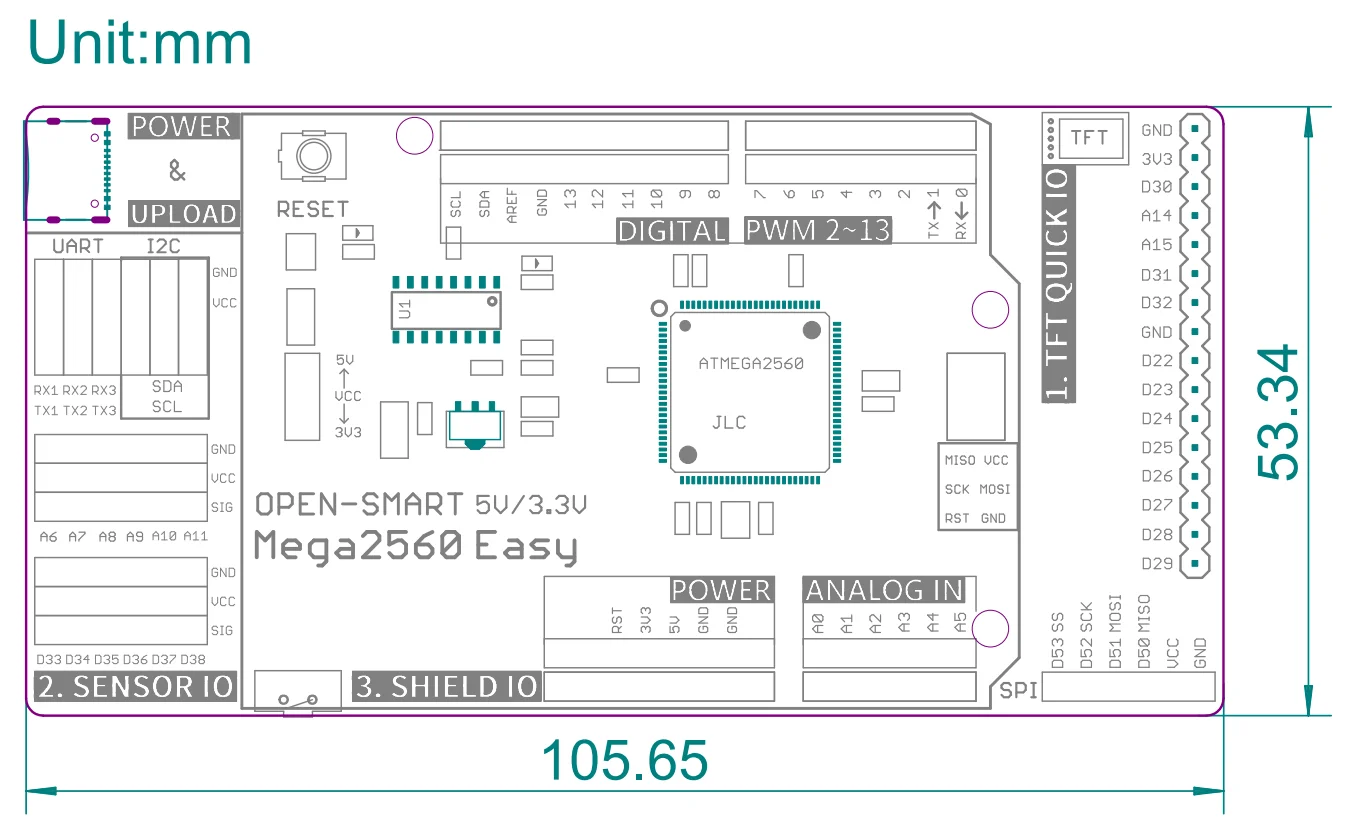

Dimensions: 105.65x56.34x12mm

Photos

Part List(Schematics and program can be sent via e-mail,Please contact us)

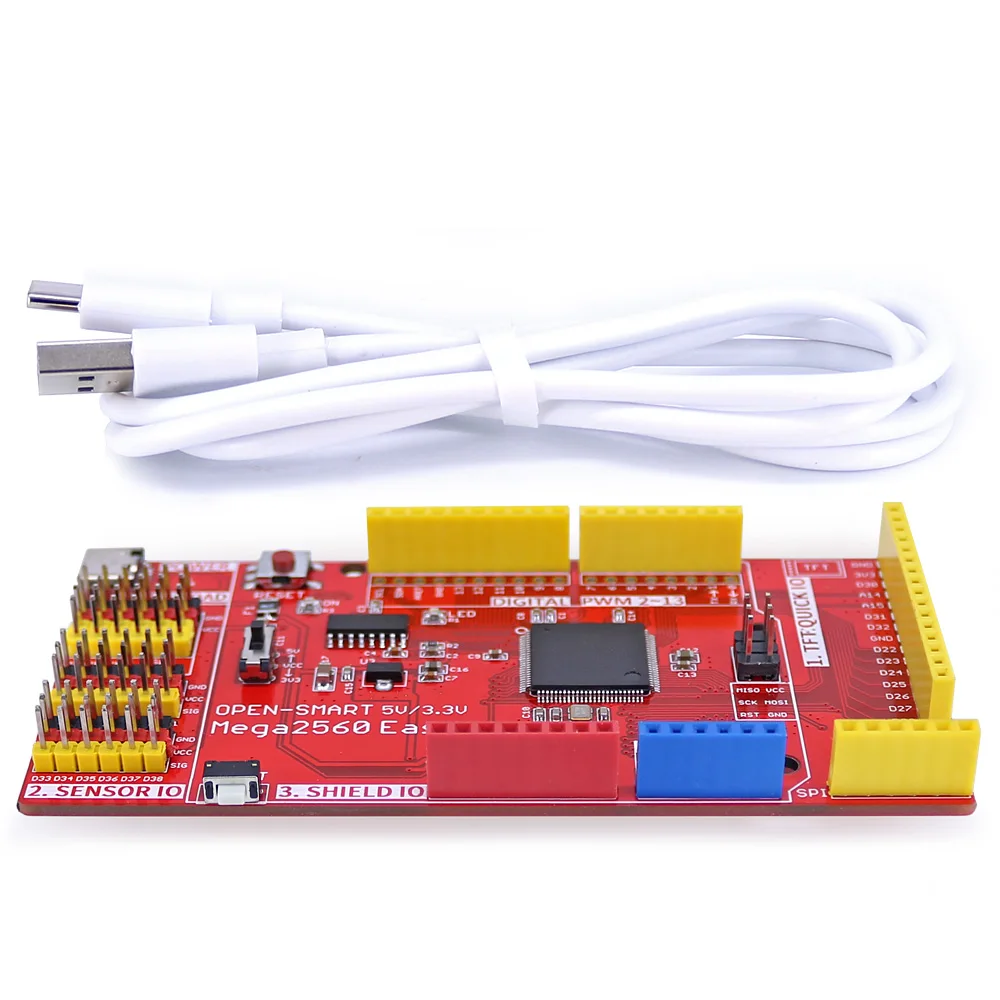

1 x Board

1 x USB cable (50cm)
