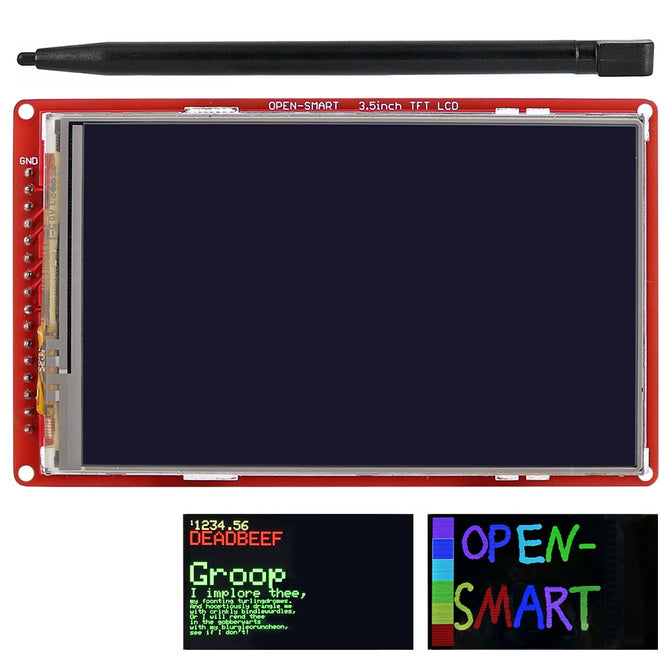

OPEN-SMART 3.5" Inch TFT LCD Display Shield Touch Screen Breakout Board Module with Touch Pen Compatible for Arduino

Wholesale electronics best price, bulk price,wholesale accessories

Features

If you want to place the bulk order that the stock is not enough, please contact with us.

This is a 3.5 inch TFT LCD expansion board. This display has a controller built into it with RAM buffer, so that almost all work is done by the TFT.

It leads out the pins of the TFT and breakout pins pitch is 2.54mm, so the secondary development is easy.

With GPRS module, you can design your DIY phone.

With NFC reader module, you can create access control systems with the photos show.

With voltage and current sensor, you can make oscilloscope.

- Can use it directly to display characters, graphics and BMP format images with the help of Micro SD card adapter module.

- Compatibility: Because the logic level is 3.3V, it is compatible for board 3.3V, you generally need to add a level conversion circuit if you use a 5V Board compatible for Arduino.

- Touch screen type: resistive touchscreen.

- Touch Pen: length is 9cm;

- Resolution: 400 x 240, 16-bit (262,000) color

- Display size: 3.5 inch;

- Operating voltage: 3.3V;

- Logic level: 3.3V;

- Operating current: the maximum is 135mA

- Bus interface: 8080-parallel interface (8 bit)

- IO Port Package: PAD is available, and the pin pitch is 2.54mm.

- LED pin can connect to external backlight control circuit to control the brightness of backlight. You can connect it to GND to turn on the backlight all day.

- Very suitable for digital photo frame, oscilloscope, function generator, detection system monitor

3.5inch TFT LCD Dimensions  and View area:

Part List(Schematics and program can be sent , Please contact us)

1 x Module

1 x Touch pen
