OPEN-SMART 3.3V 2.4 Inch LCD Display Breakout Board Module 128x64 Serial SPI Monochrome without Backlight Compatible for Arduino

Wholesale electronics best price, bulk price,wholesale accessories

Description

If you want to place the bulk order that the stock is not enough, please contact with us.

Note: This Module without backlight

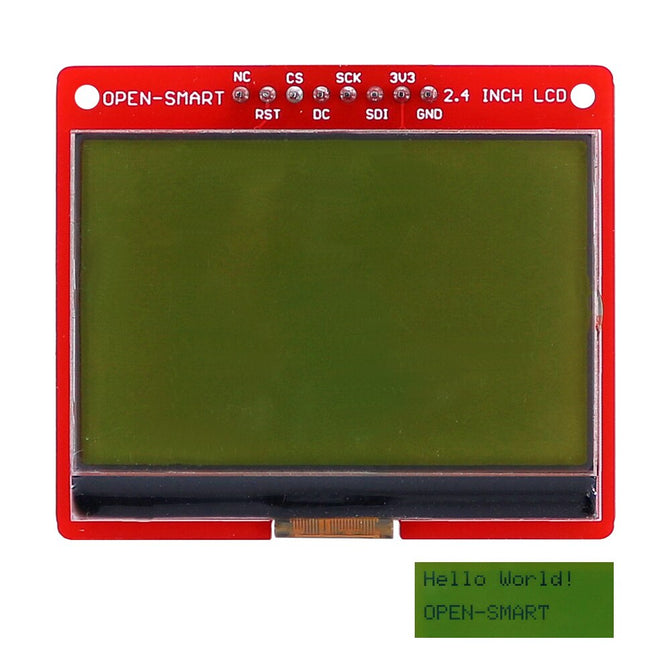

This is a 2.4 inch LCD expansion board with serial SPI interface. This display has a controller built into it with RAM buffering, so that it is easy to control by MCU.

It leads out the pins of the LCD and breakout pins pitch is 2.54mm, so the secondary development is easy.

It leads out PAD pins so that you can plug it onto the breadboard or use cable to connect it for Arduino.

- Can use it to display characters, graphics and BMP format images.

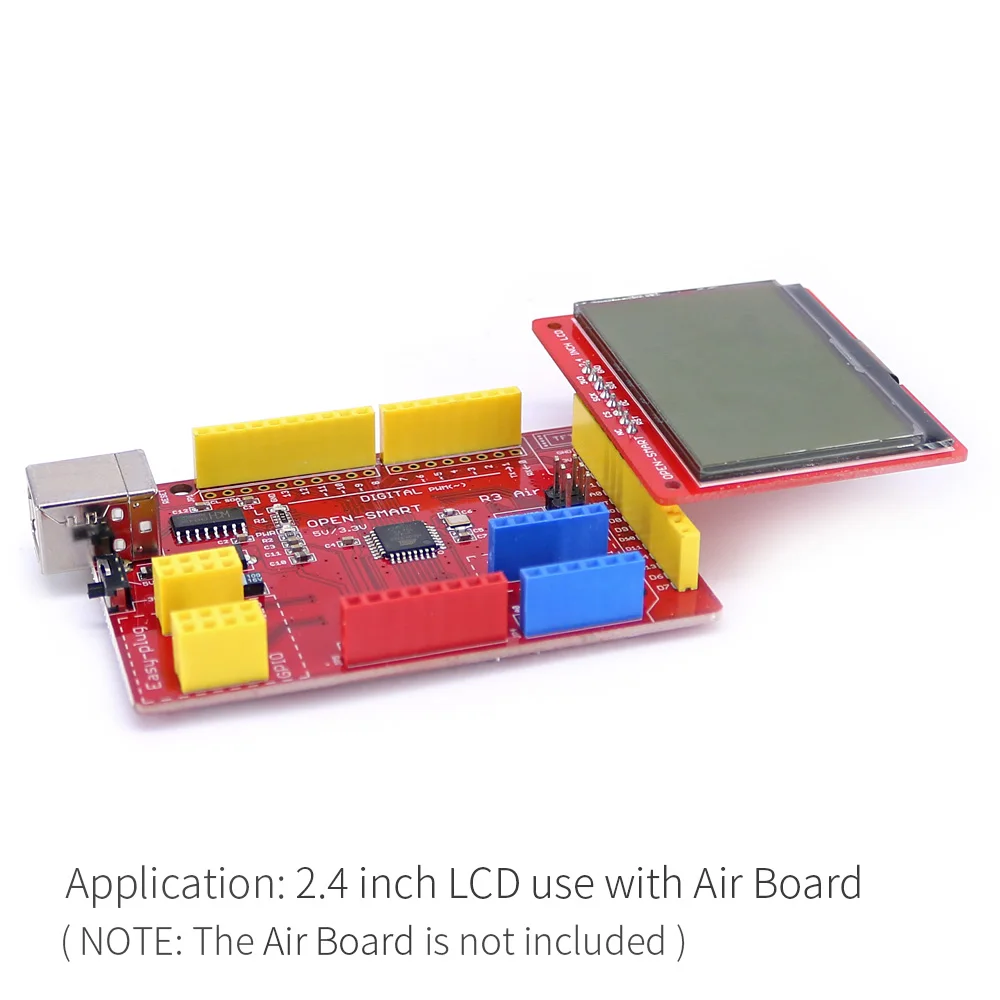

- Compatibility: Because the logic level is 3.3V, it is compatible for board 3.3V, you can connect it to OPEN-SMART Board with 5V/3.3V power switch.

You need to add a level conversion circuit if you use a 5V Board. You can also connect it to other 3.3V MCU directly.

- Resolution: 128x64, monochrome

- Display size: 2.4 inch;

- PCB size: 53x45mm

- Drive IC: ST7565

- Operating voltage: 3.3V;

- Logic level: 3.3V;

- Operating current: the maximum is 10mA

- IO Port Package: PAD is available, the pin pitch is 2.54mm.

- Great for DIY

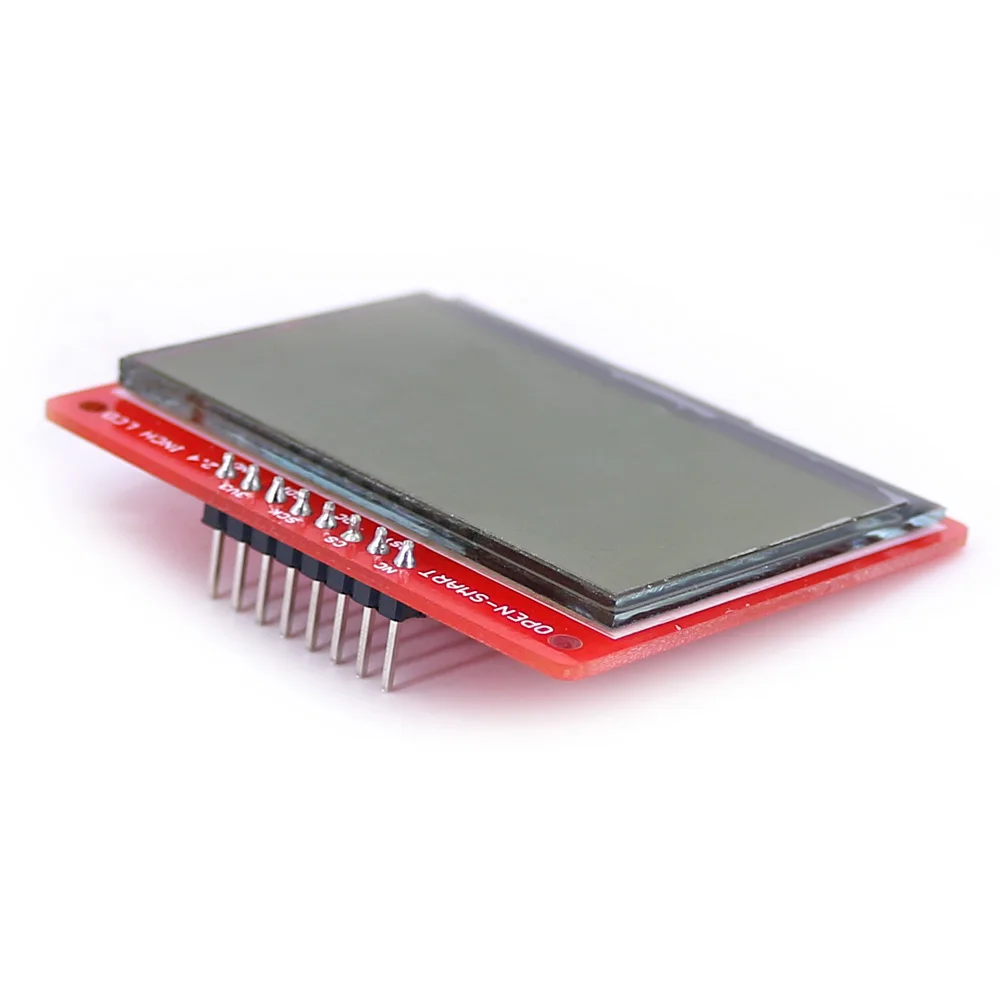

Photos

Part List(Schematics and program can be sent, Please contact us)

1 x module
