NF-8209 LCD Display Lan Cable POE Wire Checker Cat5 Cat6 Network Scan Test Tool for STP UTP cable Networking Tools Cat5 Cat6
US$ 52.97
US$ 70.62
: In stock
:
NF-8209 LCD Display Measure Length Lan Cable POE Wire Checker Lan Test Network Tool Cat5 Cat6 Scan Cable Wiremap Tester Tool Specifications: NF-8209 is a new generation to offer digital...
Share:
NF-8209 LCD Display Measure Length Lan Cable POE Wire Checker Lan Test Network Tool Cat5 Cat6 Scan Cable Wiremap Tester Tool
Specifications:
NF-8209 is a new generation to offer digital and analog signaling all in one network toner and probe.
It has three modes for options to track cable like digital mode, analog mode and PoE mode.
It’s equipped with the most powerful cable location technologies for any work environment.
It includes cable length measurement , cable faults testing, PoE testing, hub blinks and NCV function, all these makes it a must-tool for cabling engineers.
Product Operation:
1. CONT--Test open, short, cross, etc. for STP, UTP cable.
2. Length--Measure length of lan cable, range is 2.5m~200m.

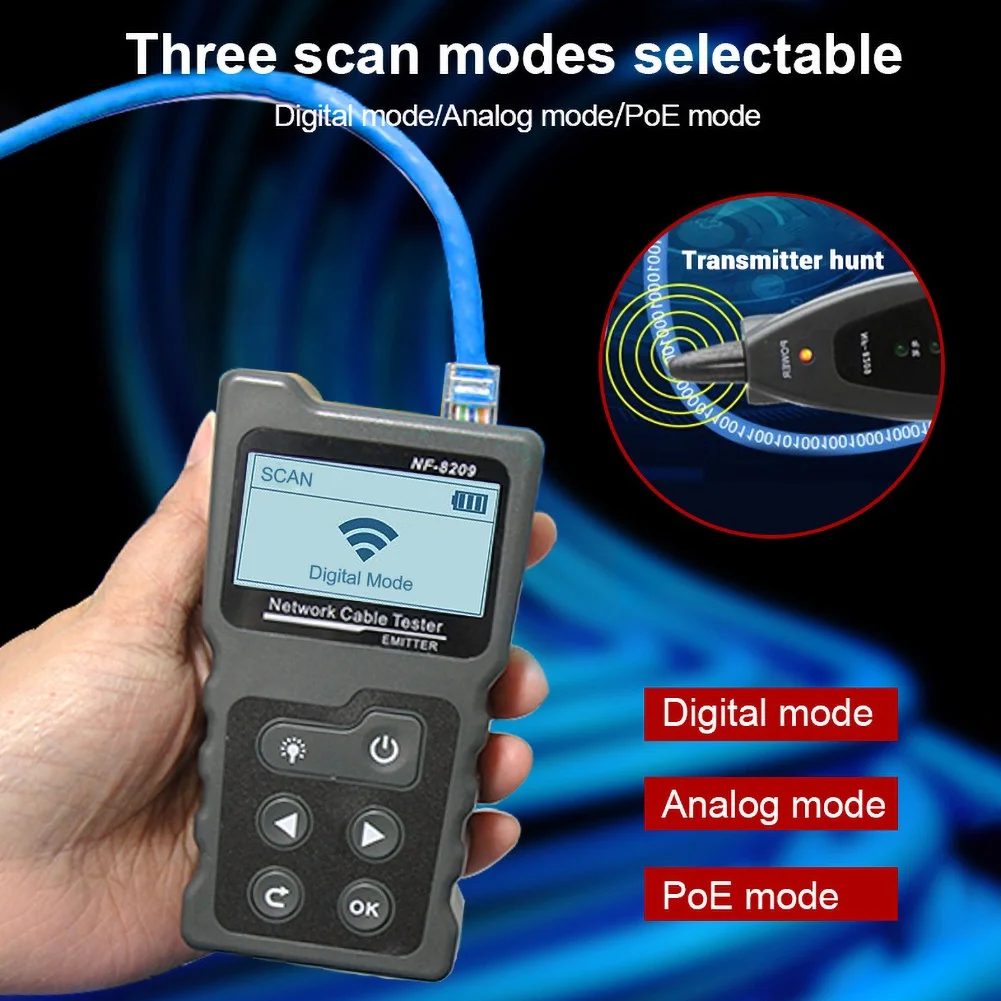

3. Scan--Analog/Digital/PoE mode to locate lan cables.
4. PoE--Available for standard or non-standard PoE switch (5~60V), identify AT or AF standard of PSE type.
5. Flash--Locate network port by the flashing port light on switch/ router.
Item Name: Cable Tester
Material: ABS
Application: Cat5, Cat6
Test Length: 600m
Battery: AAA 9V Battery (Not Included)
Notes: Due to the light and screen setting difference, the item's color may be slightly different from the pictures.

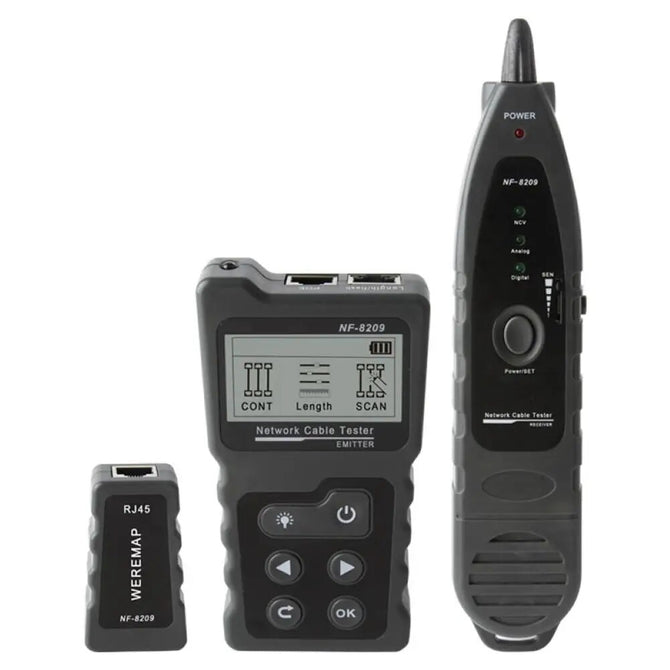

Package Includes:
1 x Transmitter
1 x Receiver
1 x Remote Adapter
1 x Earphone
1 Set of Cable Adapters
1 x Carry Bag
1 x User Manual
