NEW Bluetooth Master UART Board Host Wireless Transceiver Evaluation Development Board - Blue

NEW Bluetooth Master UART Board Host Wireless Transceiver Evaluation Development Board - Blue

US$ 11.74 US$ 15.67

: In stock

: 294401

Brand waveshare Model Bluetooth Master UART Quantity 1 DX.PCM.Model.AttributeModel.Unit Form Color Deep Blue Material CCL+PCB board Chipset BC417 English Manual / Spec Yes Download Link http://www.wvshare.com/downloads/accBoard/Bluetooth-UART-Board.7z Other Features Overview The...
Brand waveshare
Model Bluetooth Master UART
Quantity 1 DX.PCM.Model.AttributeModel.Unit
Form Color Deep Blue
Material CCL+PCB board
Chipset BC417
English Manual / Spec Yes
Download Link http://www.wvshare.com/downloads/accBoard/Bluetooth-UART-Board.7z

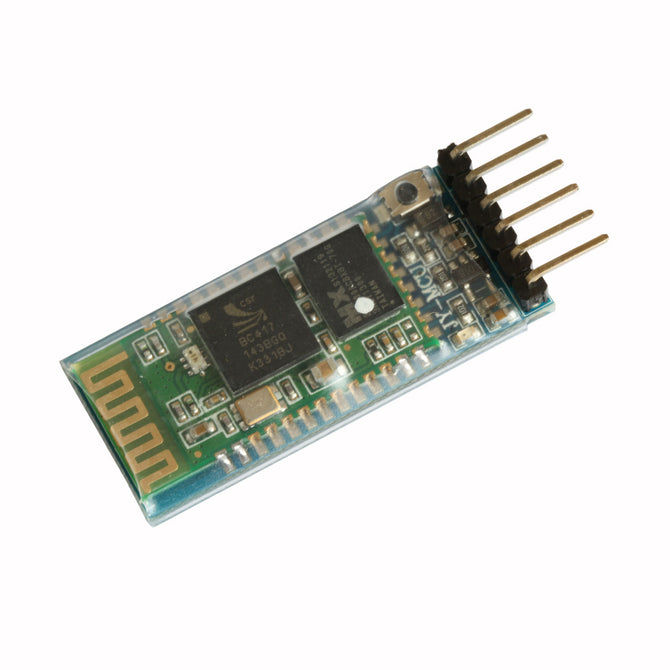

Other Features Overview The Bluetooth Master UART Board provides bluetooth solution for adding wireless capability to your development system. It is suitable for applications where wireless bluetooth data transmission is needed. The Bluetooth Master UART Board works in master/host mode. We provide both "Bluetooth Master UART Board (aka, the Master Module)" and "Bluetooth Slave UART Board (aka, the Slave Module)", each of them works in single mode only. It is impossible to switch working mode for the module. The white spot on the top indicates a Master Module. The Master Module embeds the same AT command set with the Slave Module, expect one - the AT+NAME command, which is not embedded in the Master Module. Both the Master Module and Slave Module are designed to use 3.3V power supply only. Be careful to use voltage translators (series connects a 1K resistor) on communication lines when connecting it to 5V systems. Features BC417, UART interface
Packing List 1 x Bluetooth Master UART Board
