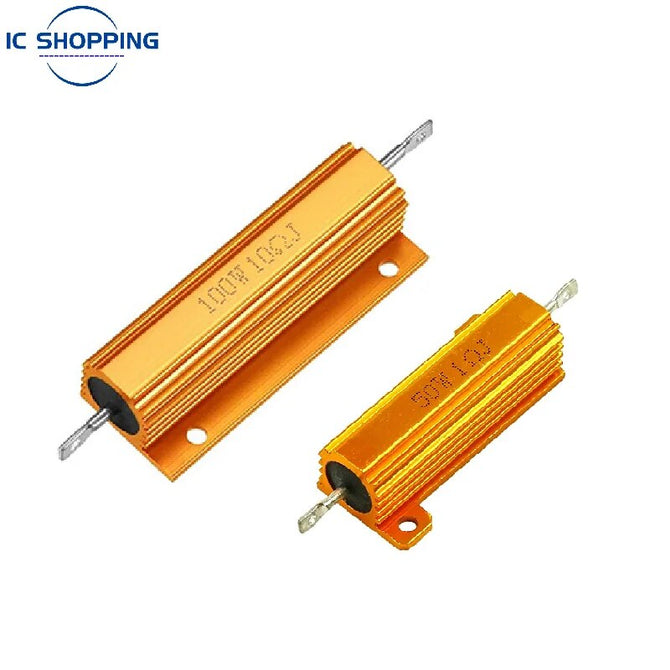

NEW 50W 100W Aluminum Power Metal Shell Case Wirewound Resistor 0.02 0.4 1.6 2.4 3.9 11 32 90 360 5.1K 5.6K 8.2K 33K 39K 47K Ohm
: In stock
:
Basic Parameters
Product Name : Aluminium Shell Resistors;
Power Rating : 100W;
Resistance accuracy : ± 5% (J);
Dimension : 60*21*15mm/2.36*0.83*0.6(L*W*H) (The size does not contain Pins and fixed parts);
Fixed part Siz: 60 * 6mm / 2.36*0.24in (L * W).The bottom of the resistor protrudes with a mounting hole.
Pins length : 12mm / 0.47 inch;
External Material : Aluminum;
Color : Gold ;
Net Weight : 55g / 0.12lb;
Suitable for inverter, LED lights, speakers, frequency divider, servo industry and other industrial control
This product using a professional process potting, with a solid, temperature, moisture resistance, high anti-vibration, explosion-proof and so on.
Specification:
Casing Material: Aluminum
Power Rating: 50W
Tolerance: 5%
Working voltage: 220V
Max. overload voltage: 220V
Body Size: 49.2x16x15/1.93"x0.63"x0.59"(L*W*H)
Lead Size: 10mm/0.39"
Mounted Hole Size : 1.8mm/ 0.07", 3.5mm/ 0.14"
ATips:
This product in the use of time, there will be heat phenomenon.
Do not touch the outside of the resistor directly by hand when the resistor is in operation for a long time to avoid injury.
If the resistor work for a long time, please do Heat dissipation.
