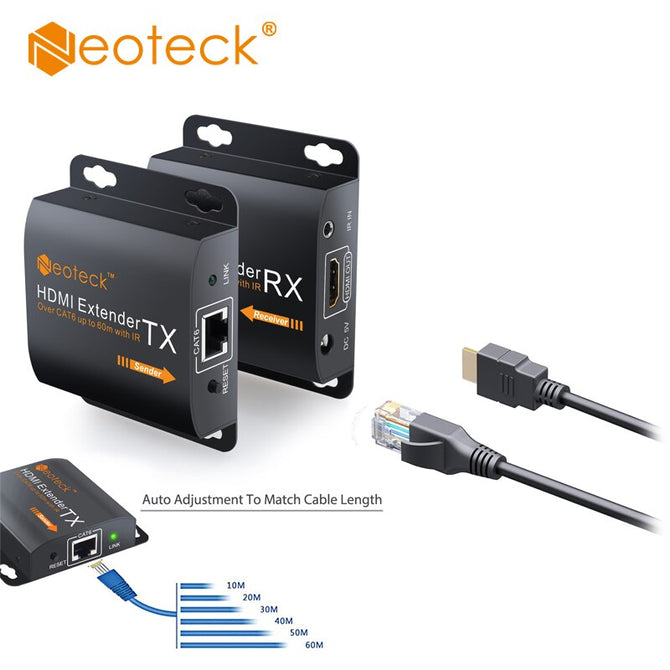

Neoteck HDMI Extender Adapter 1080P Up to 50M HDMI Transmitter Receiver RX/TX Over CAT6 Cable With IR Cable UK EU Power Supply
US$ 35.59
: In stock
:
Introduction： Long distance transmission of high definition signals is very difficult because HDMI cable is very expensive and infrequent. This HDMI extender solves the problem of expensive long-distance HDMI...
Share:
Introduction：
Long distance transmission of high definition signals is very difficult because HDMI cable is very expensive and infrequent. This HDMI extender solves the problem of expensive long-distance HDMI cable transmission, by simply using one cat6/cat6a/cat7 network cable instead of HDMI cable to extend the HDMI signal to 50m, which saves your money and space. It also supports EDID learning and is perfectly compatible with any display.
Features:
Supports HDMI 1.3 Version.
Follows standard IEEE-568B.
Can extend HDMI 1080p signal to 50m.
Supports Poe network cable power supply, only needs TX power supply
Supports EDID learning and can be perfectly compatible with any display.
Supports cable length up to 20m between the extender and the source device when using HDMI/AWG26 cable.
LED Indicator can indicate the working status.
Allows you to remotely control DVD players or other HDMI video sources via the included IR cables.
Automatic adjustment of cable length.
Installs in minutes. No need driver. Plug and play.
Specification：
Support HDCP Version: HDCP1.2
Support HDMI Resolution: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
Transmit Length: less than 50m by CAT6 Cable or higher level cable
Support Network Cable: CAT6, CAT6A, CAT7
Power Supply: DC 5V/1A
Support IR remote control: 20-60Khz
Power Consumption: TX: 1.5W; RX< 1W
Operating Temperature: 0～60℃
Dimension: 66.8x82.6x21.3mm*2pcs
Weight: 105g*2pcs
Material: Metal
Color: Black
Package Contents：
1 x HDMI to RJ45 Sender TX
1 x RJ45 to HDMI Receiver RX
1 x DC 5V/1A Power Adapter
1 x IR Blaster Extension Cable
1 x IR Receiver Extension Cable
Long distance transmission of high definition signals is very difficult because HDMI cable is very expensive and infrequent. This HDMI extender solves the problem of expensive long-distance HDMI cable transmission, by simply using one cat6/cat6a/cat7 network cable instead of HDMI cable to extend the HDMI signal to 50m, which saves your money and space. It also supports EDID learning and is perfectly compatible with any display.
Features:
Supports HDMI 1.3 Version.
Follows standard IEEE-568B.
Can extend HDMI 1080p signal to 50m.
Supports Poe network cable power supply, only needs TX power supply
Supports EDID learning and can be perfectly compatible with any display.
Supports cable length up to 20m between the extender and the source device when using HDMI/AWG26 cable.
LED Indicator can indicate the working status.
Allows you to remotely control DVD players or other HDMI video sources via the included IR cables.
Automatic adjustment of cable length.
Installs in minutes. No need driver. Plug and play.
Specification：
Support HDCP Version: HDCP1.2
Support HDMI Resolution: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
Transmit Length: less than 50m by CAT6 Cable or higher level cable
Support Network Cable: CAT6, CAT6A, CAT7
Power Supply: DC 5V/1A
Support IR remote control: 20-60Khz
Power Consumption: TX: 1.5W; RX< 1W
Operating Temperature: 0～60℃
Dimension: 66.8x82.6x21.3mm*2pcs
Weight: 105g*2pcs
Material: Metal
Color: Black
Package Contents：
1 x HDMI to RJ45 Sender TX
1 x RJ45 to HDMI Receiver RX
1 x DC 5V/1A Power Adapter
1 x IR Blaster Extension Cable
1 x IR Receiver Extension Cable
Please Note:
Extend AV Signal up to 60M Using TCP/ IP over a Single RJ45/ Cat6/ Cat7 Cable, Which is at Least 15 Meters Long (20 to 30 Meters Would be Perfect)
EU Type is with only one power supply, it has POE function. Other type is with two power supply. Not with POE function
