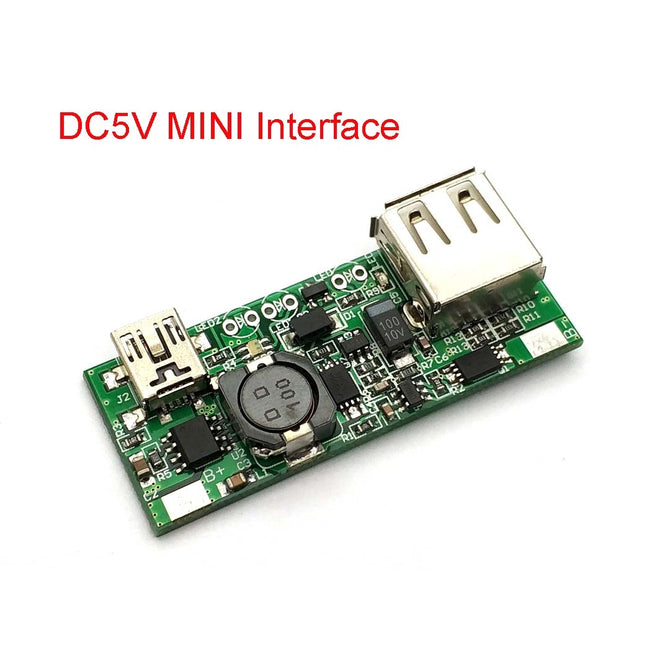

Mobile Power Supply Chip 5V Boost Board Belt Recognition Module Mobile Phone Charge MINI Interface

Mobile Power Supply Chip 5V Boost Board Belt Recognition Module Mobile Phone Charge MINI Interface

Description

performance:
1, charging input: 5V1A
2, chip output: 5V1A

interface:
1, input interface:MINI USB female Interface
2, output interface: Standard USB female Interface
measurements:
Long * wide * high 50*20*10mm
suitable for battery:
Polymer lithium batteries, 18650 lithium batteries, cell phone batteries, such as 3.7V standard lithium battery, can be a single (slice) power supply, can also be multi section (slice) parallel power supply. (parallel increase capacity)
Not available: dry batteries, batteries, 1.2V rechargeable batteries, nickel metal hydride batteries, lithium polymer lithium polymer lithium batteries, etc., can not be used in series!
indicator light:
Charge: red light.
Full: green light.
Load: blue light.
Note: the chip itself has been shown in the LED lamp, and the 6 expansion ports can also be used as a display for the LED.
Note: lithium battery anode is connected to the B +, B - connects to the cathode of the lithium battery, any time reverse connection of the battery are very possibly burn out circuit and burned circuit is not guaranteed.
recognition circuit:
At present, the chip directly supports IPHONE and other devices need to charge the identification of mobile phone charging
protection board:
With the lithium battery protection board, preventing overcharge and overdischarge.
standby loss:
The static current is extremely small, no need to install the switch.

Package Included

1 Pcs Charging module
