Micro SD Module TF Micro SD Storage Board TF Card Memory Shield SPI Interface Compatible for Arduino

Wholesale electronics best price, bulk price,wholesale accessories

Description

Note: If you want to place the bulk order that the stock is not enough, please contact with us.

The module (MicroSD Card Adapter) is a Micro SD card reader module, and the SPI interface via the file system driver,  microcontroller system to complete the Micro SD card read and write files. Users can directly use for IDE comes with an SD card to complete  the library card initialization and read-write.

Features

Support Micro SD Card, Micro SDHC card (high-speed card)

The level conversion circuit board that can interface level is 5V or 3.3V

Communication interface is a standard SPI interface

Control Interface: A total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground,

VCC is the power supply, MISO, MOSI, SCK is the SPI bus, CS is the chip select signal pin;

3.3V regulator circuit: LDO regulator output 3.3V as level converter chip, Micro SD card supply;

Level conversion circuit: Micro SD card into the direction of signals into 3.3V, MicroSD card toward the direction of the control interface MISO signal is also converted to 3.3V, general AVR microcontroller system can read the signal;

Micro SD card connector: yes since the bomb deck for easy card insertion and removal.

Positioning holes: 4 M2 screws positioning hole diameter of 2.2mm, easy to install positioning, to achieve inter-module combination;

Specificaton

Power supply:4.5V - 5.5V, 3.3V voltage regulator circuit board

Positioning holes: 4 M2 screws positioning hole diameter of 2.2mm

Control Interface: GND, VCC, MISO, MOSI, SCK, CS

Size:45 x 28mm

Net weight:6g

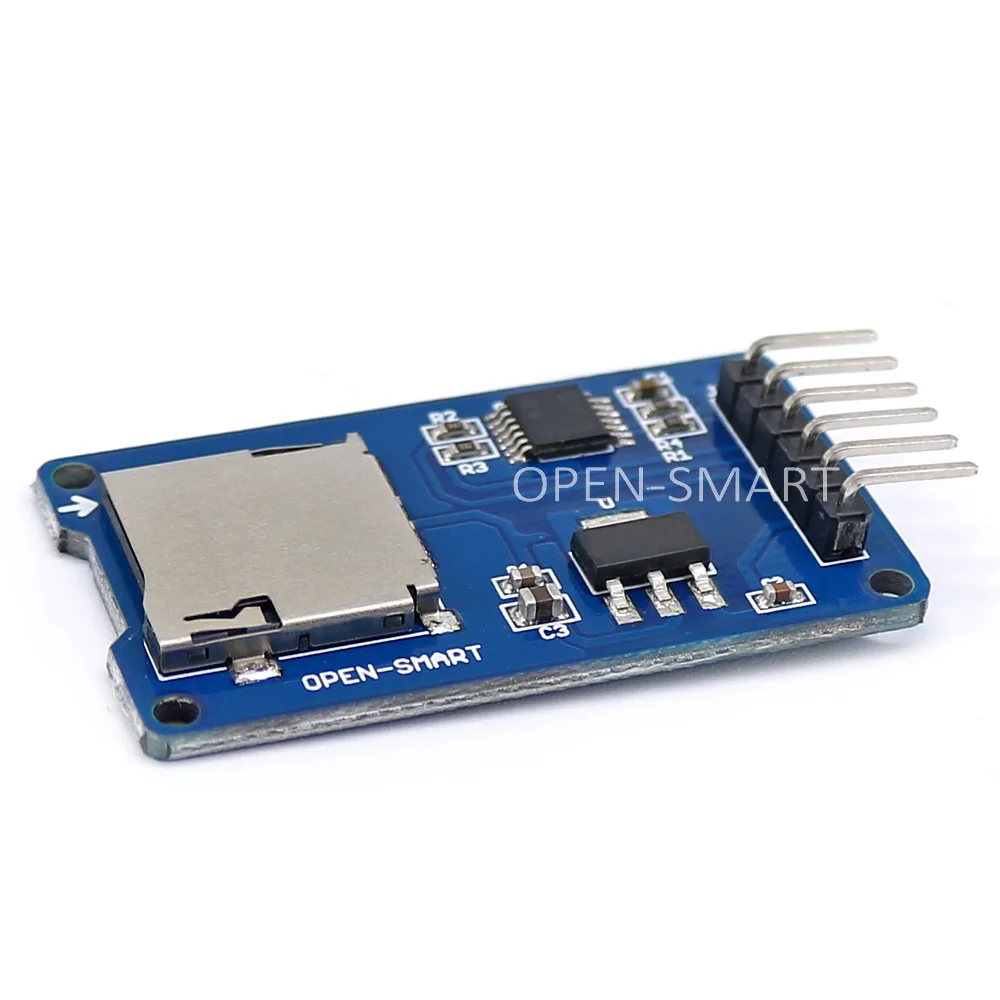

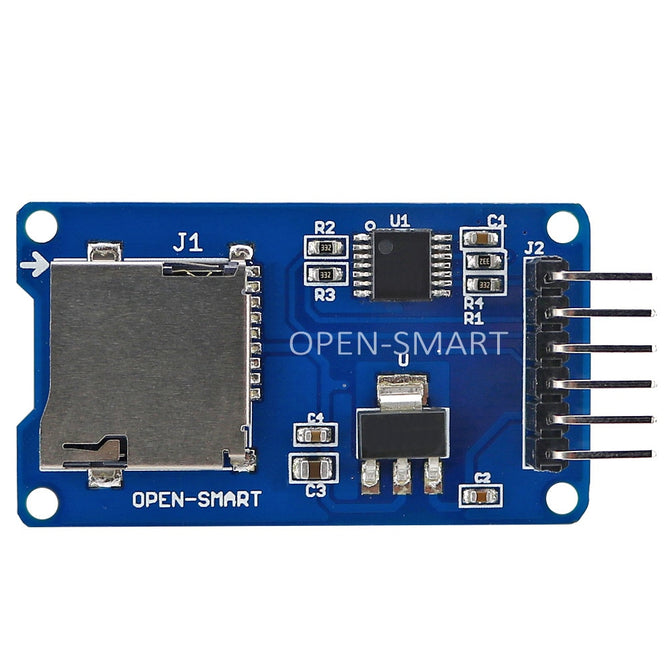

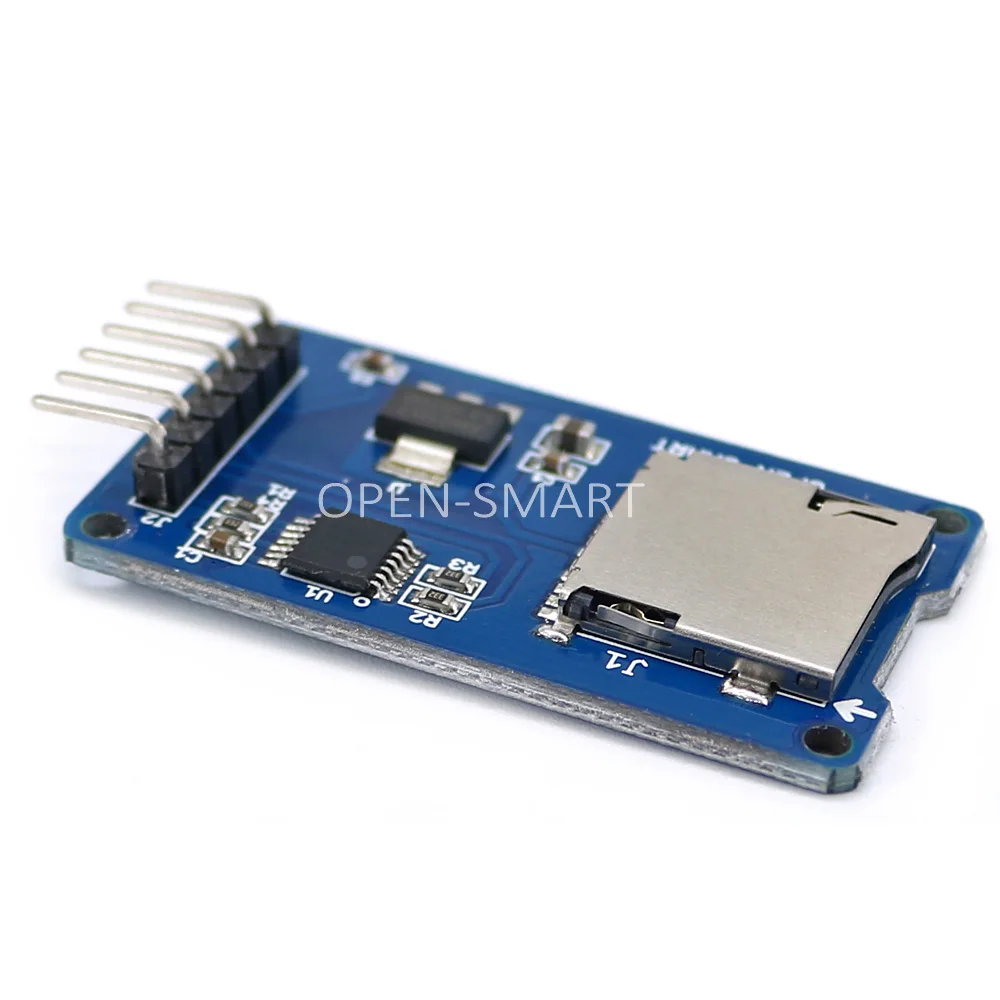

Photos

Part List (Schematics and program can be sent via e-mail,Please contact us)

1 x Module
