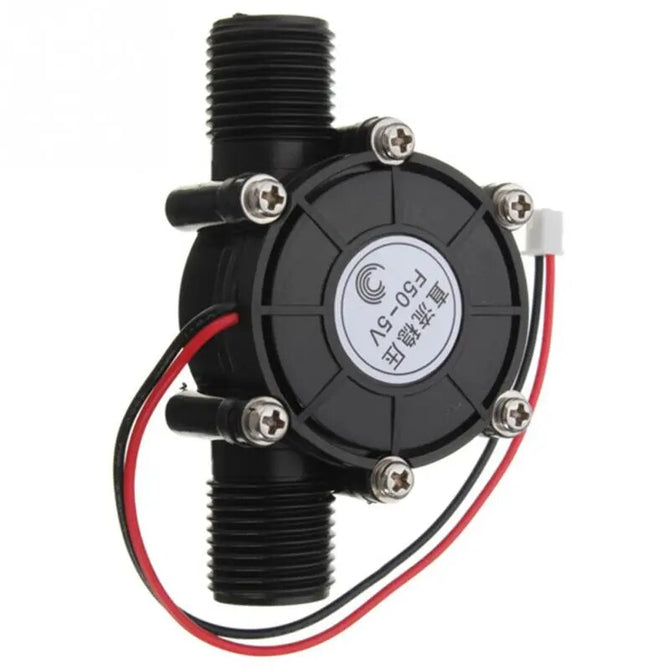

Micro Hydro Generator 80V/12V/5V10W DC water flow generator turbine generator hydroelectric Tap Water Flow Hydraulic DIY
: In stock
:
Micro hydro generator, the potential energy conversion of the water into electrical energy mechanical equipment.
We provide you with three kinds of generators, Can be directly to the small battery charge, Can charge mobile phone, Can give 12V radio power, charging, power supply for LED lights, etc
Specification:
Type: 80V/12V/5V Generator
Output high voltage: 80V (1.2Mpa)
The maximum output : ≥220mA (12V)
Line resistance: 10.5±0.5Ω
Insulation resistance: 10MΩ(DC100)
The outlet closed the maximum voltage: 0.6Mpa
The water outlet opens the maximum voltage: 1.2Mpa
Start water pressure: 0.05Mpa
The mechanical noise :≤55dB
Generator single volume: 90g
The life of generator:≥3000h
Appearance: generator surface cleaning, the structure is strong.
Output characteristics: the output voltage with no voltage regulator is proportional to the water pressure.
80V: DC 0-80V output, the generator does not have a voltage regulator circuit, the peak voltage reaches 80V, it can directly charge a 3-12V 10W LED light, and can directly charge a small battery, and the peak charging current is about 220mA.
5V: DC 5V regulated output, which can charge mobile phones and batteries with charge management chips.
12V: DC 12V regulated output, which can power and charge 12V radios, and power LED lights.
Wiring Note:
Connect according to the positive and negative poles, the red wire is the positive and the black wire is the negative. The positive and negative of the generator correspond to the positive and negative of the power supply, positive to positive, and negative to negative.
Package includes:
1 x Micro Hydro Generator (80v/12v /5V for option)
