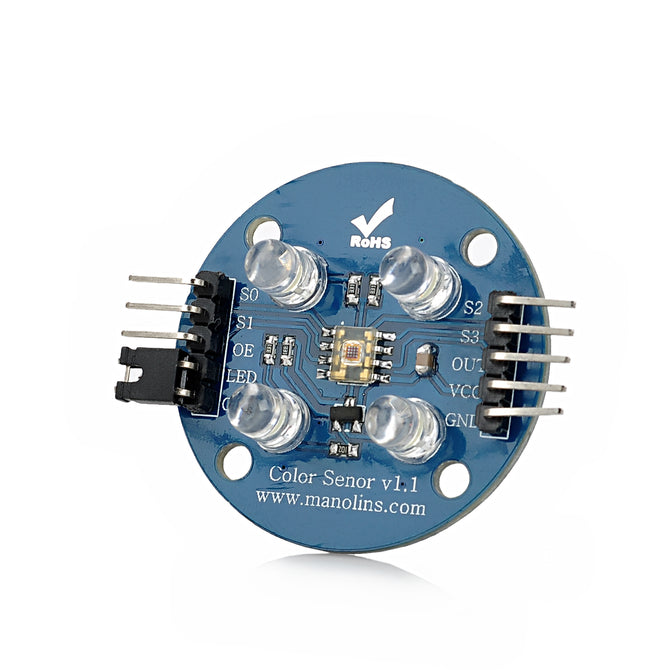

MANOLINS TCS3200D Color Recognition Sensor Detector Board RGB Module for Arduino

- Brand: MANOLINS
- Model: TCS3200D
- Quantity: 1
- Color: Blue + black
- Material: PCB
- The color sensor module base on TCS3200 which is a programmable color light-to-frequency converter, it could filter RGB data from source light and convert it to a square wave (50% duty cycle) with frequency directly proportional to light intensity (irradiance); The full-scale output frequency can be scaled by one of three preset values via two control input pins (SO, S1 selectable options 2%, 20%, 100% frequency), and pin S2, S3 control the filter of RGB; Digital input and digital output allow interface to a microcontroller or other logic circuitry directly; Output enable (OE) places the output in the high-impedance state for multiple-unit sharing of a microcontroller input line; At last, user can calculate the color of the light by RGB values
- High-resolution conversion of light intensity to frequency
- Programmable color and full-scale output frequency
- Communicates directly with a microcontroller
- Working voltage: 2.7V~5.5V
- Working current: 1.4mA
- Output frequency: 10KHz~12KHz
- Duty cycle: 50%
- Detection state: Static detecting
- The best detection distance: 10mm
- Working temperature: -40'C~85'C
- Programmable color light-to-frequency converter, suitable for colorimeter measurement range; Such as color printing, medical diagnosis, computer color monitor calibration and the process control and color match of the paint, textile, cosmetic and printing material
- A product for Arduino that works with official Arduino boards.
- Packing List:
- 1 x RGB module
