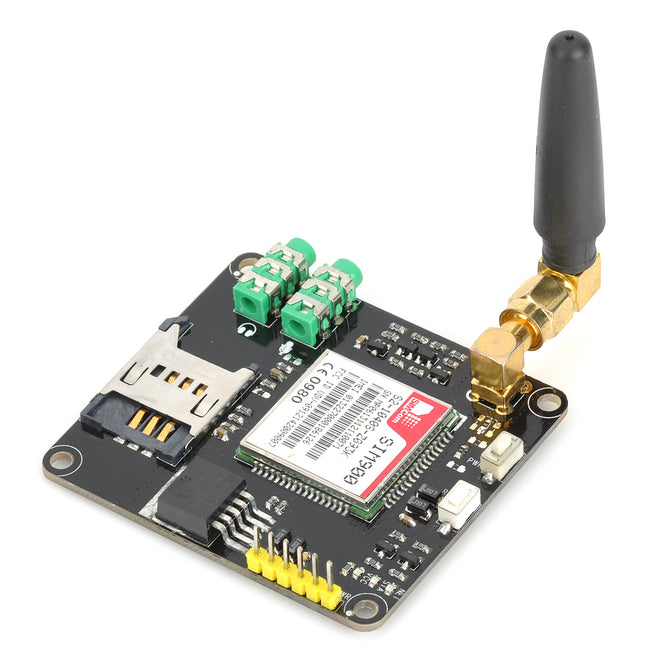

Manolins MINIGSM GSM / GPRS Expansion Wireless Module w/ Antenna (Works with Official Arduino Board)
US$ 51.01
US$ 56.01
: In stock
: 232449
Brand Manolins Model MINIGSM Quantity 1 Color Black Material PCB board Features 4-band GPRS / GSM Module ManCom Pro is an ultra compact and reliable wireless module; It is a...
Share:
| Brand | Manolins |
| Model | MINIGSM |
| Quantity | 1 |
| Color | Black |
| Material | PCB board |
| Features | 4-band GPRS / GSM Module ManCom Pro is an ultra compact and reliable wireless module; It is a breakout board and minimum system of SIM900 Quad-band GSM / GPRS module. It can communicate with controllers via AT commands (GSM 07.07, 07.05 and SIMCOM enhanced AT Commands); Supports software power on and reset. |
| Specification | ManCom Pro IO List: GND, +5V, TX, RX, RST, PWR; Power Supply: +5V; Fully compatible with AVR / Arduino / ARM / FPGA etc; Free serial port connecting, you can select Hardware / Software Serial port control; Super capacitor power supply for the RTC; ManCom not only can use the button for power on, but also can use the digital pin of Arduino to power on and reset the SIM900 module; Quad-Band 850 / 900 / 1800 / 1900 MHz; GPRS multi-slot class 10 / 8; GPRS mobile station class B; Compliant to GSM phase 2/2+; Class 4 (2 W at 850 / 900 MHz); Class 1 (1 W at 1800 / 1900MHz); Control via AT commands (GSM 07.07 ,07.05 and ManCOM enhanced AT Commands); Supply voltage range : 3.1~4.8V; Low power consumption: 1.5mA (sleep mode); Operation temperature: -40'C~85'C |
| Application | Great for DIY project |
| English Manual/Spec | Yes |
| Packing List | 1 x SIM900 Wireless module 1 x 4-band antenna |
