Led Strip Dimmer Controller 12V 24V RF Remote Wireless 4A 4 Channel Multi Function Dim ON Off Swith for 5050 3528 Single String

Summarization

2.4G wireless multi-channel dimmer is a kind of controller which aims at each channel dimming separately, through dimming separately to each channel of controller, can achieve matching of different colors, thus a different color can show up. This controller has high dimming precision, with effect common dimmer can’t achieve.

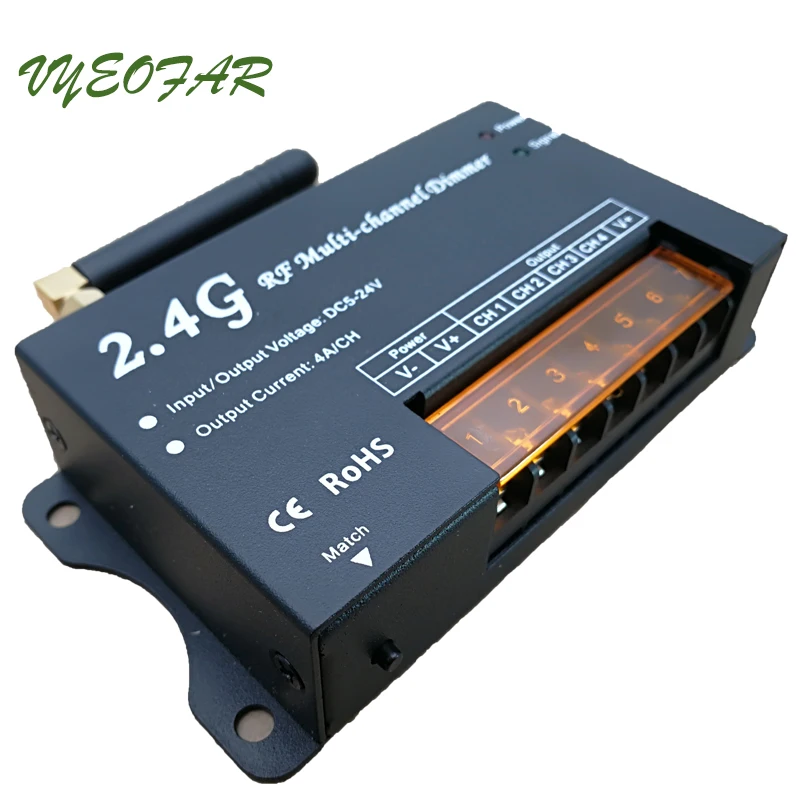

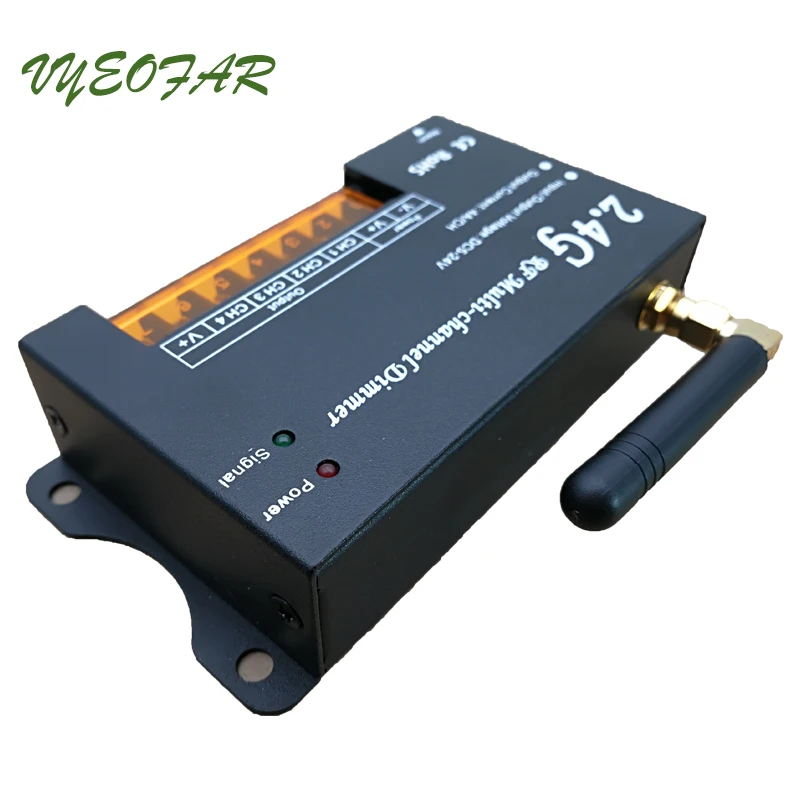

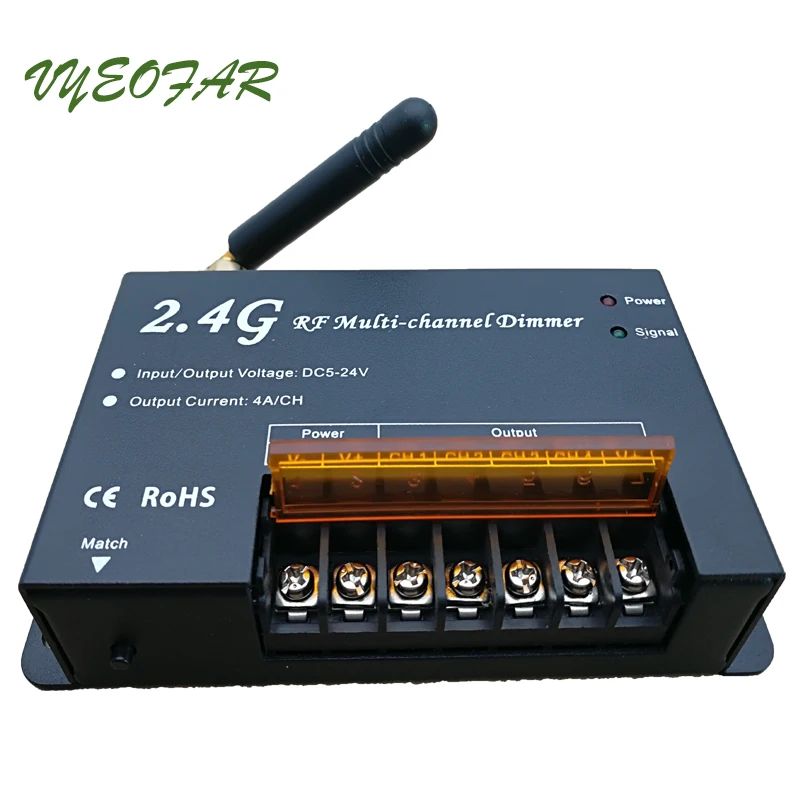

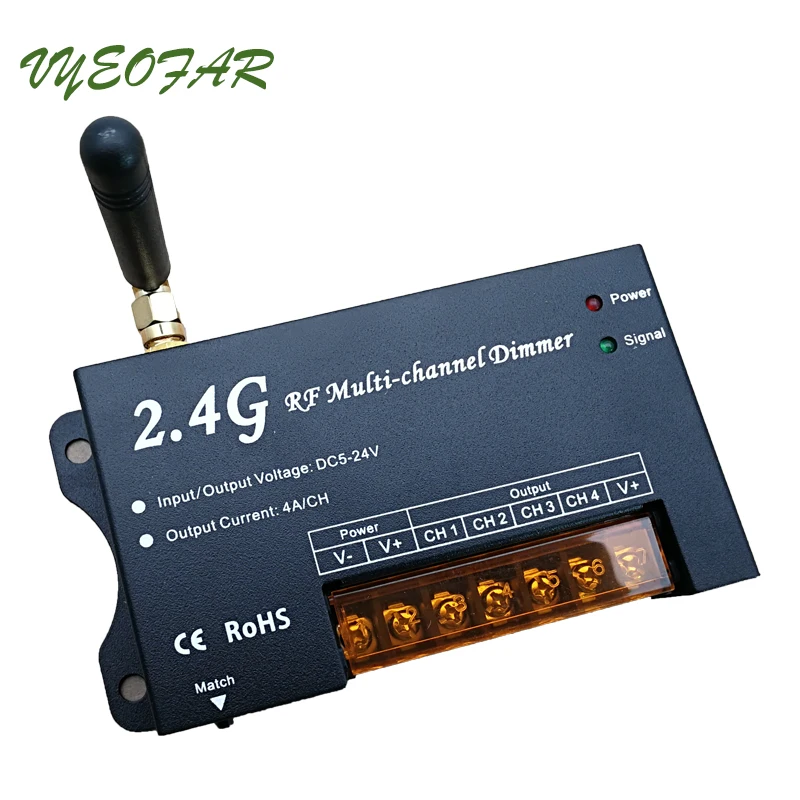

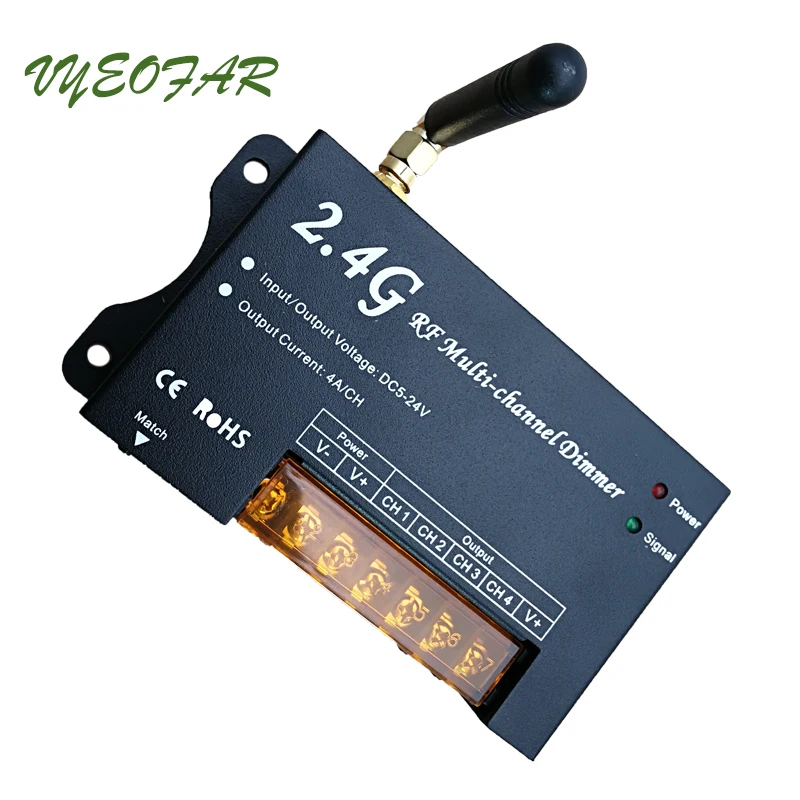

Photo Detail:

Technical parameters

Controller

Working temperature: -20-60℃

Power supply voltage: DC 12～24V

Output voltage: DC12-24V

Output: 4 channel

Connect way: common anode

External dimension: L120*W62*H25mm

Packing size: L185*W145*H55mm

Net weight: 293.3g

Gross weight: 376.7g

Static power consumption: <0.54W

Output current: < 4A(each channel)

Output power: 192W/12V  384W/24V

Working frequency: 880Hz

Dimming mode:PWM

Remote

Working temperature: -20-60℃

power supply mode: AAA * 2

supply voltage: 1.5V * 2

transmitting frequency:2.4Ghz

standby power consumption: 0.006mW

standby current: 20uA

working current: 200uA

emission current:10mA

remote distance: about 30m

standby time: 6 months

Package:

1 pc Led dimmer with RF Remote(Battery not included)
