LCD1602 1602 LCD Display Module Blue Yellow Green Screen 16x2 Character PCF8574T PCF8574 IIC I2C Interface 5V for Arduino UNO R3

Notice: There are two types of LCD Display Module,one with I2C Module,the other one without I2C Module(only comes with LCD Display Module)

1602 LCD:

LCD display module with blue blacklight.

Wide viewing angle and high contrast.

Built-in industry standard HD44780 equivalent LCD controller.

Commonly used in: copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices.

LCM type: Characters

Can display 2-lines X 16-characters.

Voltage: 5V DC.

Module dimension: 80mm x 35mm x 11mm.

Viewing area size: 64.5mm x 16mm

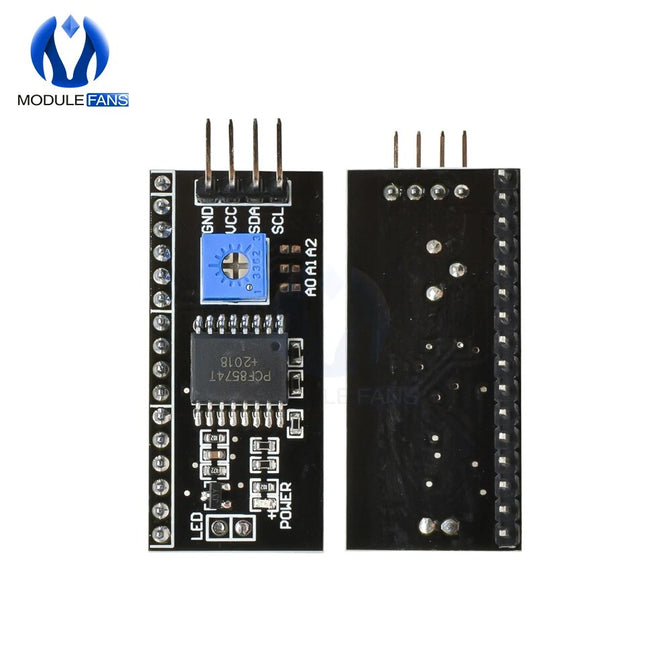

IIC/I2C :

for Arduino 1602 I2C interface 4-wire 1602 screen

IO port for Arduino control board is only 20,so IO ports is not enough for many sensor, SD card, relay modules.

The original 1602 screen need 7 IO ports to drive up, and this module can save 5 IO ports
