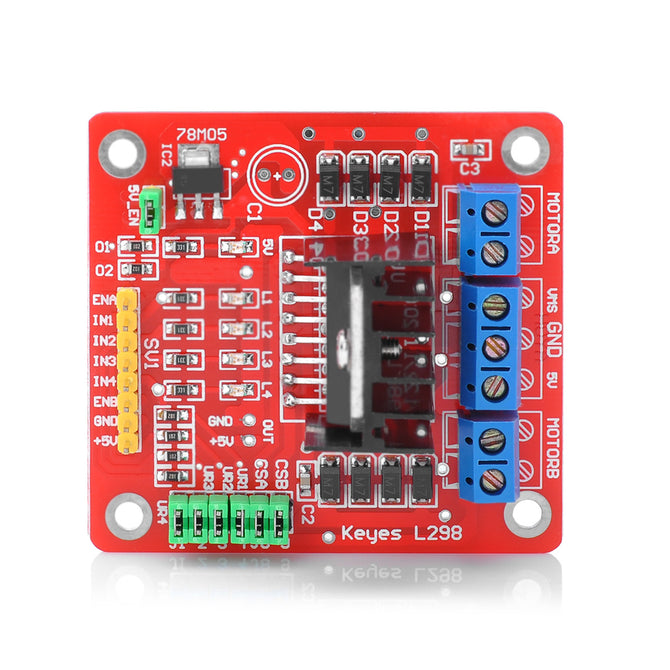

L298N Stepper Motor Driver Controller Board for Arduino

- Uses ST' L298N chip, can directly drive two 3-30V DC motor, and provide a 5V output interface, power for 5V single-chip circuitry, support 3.3VMCU control
- Can easily control the DC motor speed and direction, also control the 2-phase stepper motor
- Driver: L298N Dual H Bridge DC Motor Driver IC
- Driven part of the terminal supply voltage: VMS 5~35V
- Driven part of the peak current Io: 2A per bridge
- The logical part of the terminal supply voltage: 4.5~7V
- The logical part of the operating current range: 0 ~ 36mA
- Control signal input voltage range: 4.5~5.5V (high) / 0V (low)
- Maximum power consumption: 20W
