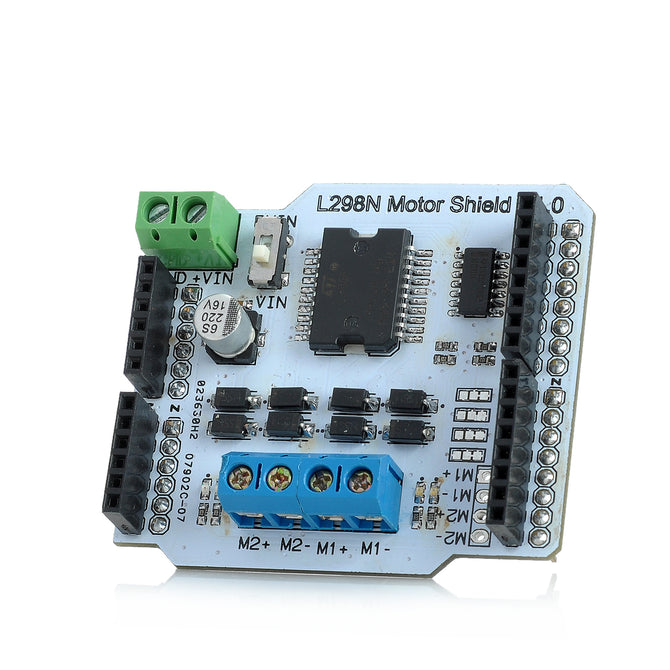

L298N Motor Shield V1.0 Expansion Board - White

L298N Motor Shield V1.0 Expansion Board - White

US$ 14.70 US$ 18.36

: In stock

: 189941

- Model: SHD-L298N- Quantity: 1 piece- Color: White- Material: Fibreboard glass panel + FR4- Function: Perfect for Arduino DIY project- Logic Control Voltage: 5V (From Arduino)- Motor Driven Voltage: 6.5~12V...
- Model: SHD-L298N
- Quantity: 1 piece
- Color: White
- Material: Fibreboard glass panel + FR4
- Function: Perfect for Arduino DIY project
- Logic Control Voltage: 5V (From Arduino)
- Motor Driven Voltage: 6.5~12V (VIN Power Supply), 4.8~35V (External Power Source)
- 2 way motor drive
- Logic supply current Iss: = 36mA
- Motor Driven current Io: = 2A
- Maximum power consumption 25W (T=75'C)
- Up to 2A current each way
- Pin 4,5,6,7 are used to drive two DC motor
- Supports PWM speed control
- Support PLL advance speed control
- This Freaduino Compatible Motor Shield (2A) uses L298P chip which allow to drive two 7~12V DC motors with maximum 2A current
- This shield can be directly mount onto standard Arduino Duemilanove and Arduino Mega
- The speed control is achieved through conventional PWM which can be obtained from Arduino's PWM output Pin 5 and 6
- The enable/disable function of the motor control is signaled by Arduino Digital Pin 4 and 7
- The Motor shield can be powered directly from Arduino or from external power source
- It is strongly encouraged to use external power supply to power the motor shield
- Packing list
- 1 x Motor shield V1.0 expansion board
