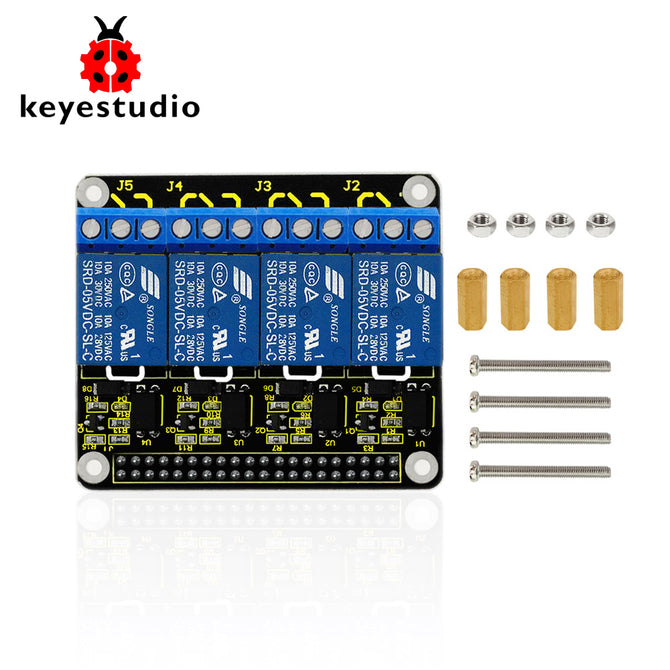

Keyestudio RPI 4-Channel 5V Relay Shield For Raspberry Pi 4B / CE Certification
US$ 11.02
US$ 14.18
: In stock
: 59543
This shield uses SONGLE relay, providing 4-channel input and output. The relays are isolated in the PCB. All the channels can control up to 24V DC or 250V AC on...
Share:
This shield uses SONGLE relay, providing 4-channel input and output. The relays are isolated in the PCB. All the channels can control up to 24V DC or 250V AC on 10 A. It allows you to control high power components like lights and motors via Raspberry Pi 3. Just plug it directly into your pi with 5 V. You will find a LED indicates the status of the relays. We will provide installation package, source code and quickstart guide PDF. We will teach you step by step, so don’t worry!
Specification
Control Signal: TTL Level
Rated Load：
10A 250VAC
10A 125VAC
10A 30VDC
10A 28VDC
Rated Current: 10A(NO) 5A(NC)
Max Switching Voltage: 250VAC 30VDC
Contact Time: under 10ms
