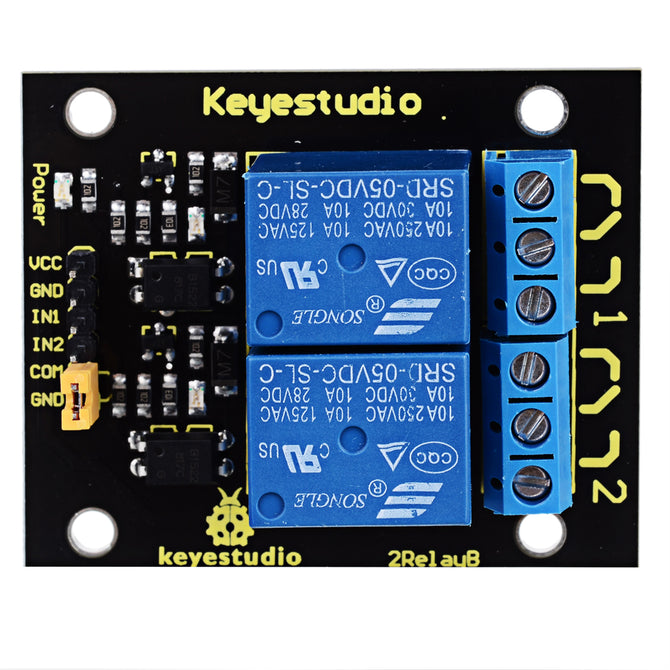

Keyestudio Dual Relay Module for Arduino - Black + Yellow

US$ 4.04 US$ 9.04

Availability: In stock

SKU: 430890

Form Color Black + Yellow + Multi-Colored Model - Quantity 1 DX.PCM.Model.AttributeModel.Unit Material FR4 Max. Load 250V/10A AC or 5V/10A DC English Manual / Spec Yes Download Link http://www.keyestudio.cc/h-nd-87-0_35.html?skeyword=KS0057 Other...

Add to wishlist

Tweet
Facebook
Google+
Linkedin
Pinterest

Form Color	Black + Yellow + Multi-Colored
Model	-
Quantity	1 DX.PCM.Model.AttributeModel.Unit
Material	FR4
Max. Load	250V/10A AC or 5V/10A DC
English Manual / Spec	Yes
Download Link	http://www.keyestudio.cc/h-nd-87-0_35.html?skeyword=KS0057
Other Features	Control signal: TTL voltage; Rated load: 10A 250V AC 10A 125V AC 10A 30 DC 10A 28V DC; Rated Through-current: 10A(NO) 5A(NC); Max Switching Voltage: 250V AC 30V DC; Contact actuation time: 10ms Definition of module pins: i) Pin 1- Pin 2----Controlling end ii); Power supply (VCC) iii) Ground (GND)
Packing List	1*Relay module
