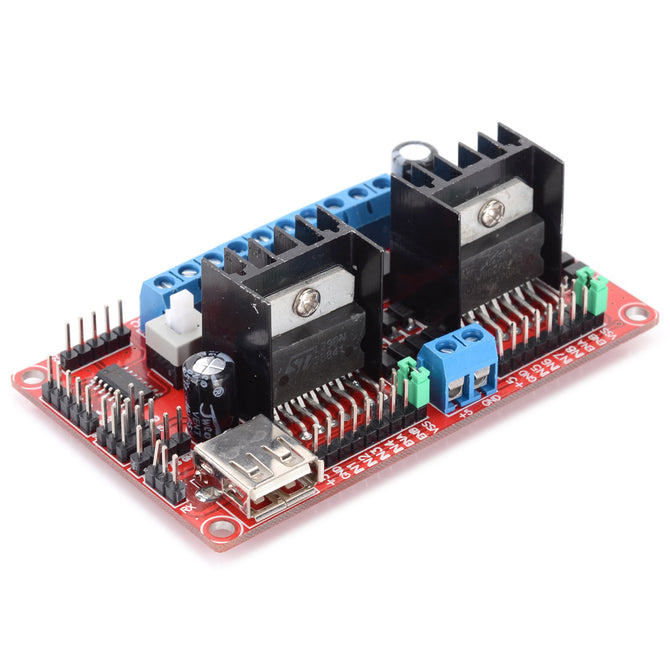

KEYES-L298N V3 Stepper Driver and Power-Supply Module / Wi-Fi Motor Drive Controller Module Board
US$ 12.09
US$ 17.09
: In stock
: 334677
Color Red Brand KEYES Model L298N V3 Quantity 1 Piece Material FR4 English Manual / Spec Yes Other Features - Driver chip: L298N double H bridges DC motor driver chip....
Share:
| Color | Red |
| Brand | KEYES |
| Model | L298N V3 |
| Quantity | 1 Piece |
| Material | FR4 |
| English Manual / Spec | Yes |
| Other Features | - Driver chip: L298N double H bridges DC motor driver chip. - Power supply range Vs: +5V~+30V; board power supply Vs: +6V~+30V. - Peak current Io: 2A. - Theoretical working current: ~36mA. - Signal control input voltage(IN1 IN2 IN3 IN4)low:0.3V=Vin=1.5V; highl: 0.3V=Vin=1.5V. - Enable signal input voltage(ENA ENB): low: 0.3V=Vin=1.5V(no effect on signal control); high: 0.3V=Vin=1.5V(effective on signal control). - Maxim power consumption: 20W(temperature T=75'C). - Storage temperature: -25'C~+130'C. - Drive board dimension: 55mm x 45mm x 33mm (including the height of fixed pillars and heat dissipation pad). - Controls the direction of LED indicator and part of board power supply interface. |
| Packing List | 1 x Module |
