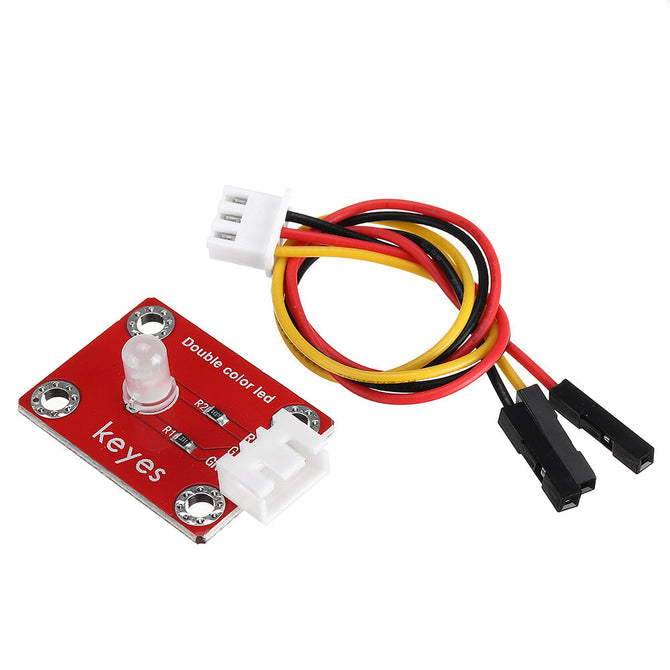

Keyes Brick Two Color LED Module (pad hole) Anti-reverse Plug White Terminal wholesale bulk price
US$ 5.99
: In stock
:
Compatibility To confirm that this part fits your vehicle, please enter your vehicle's details below. Year: Select Make: Select Model: Select Submodel: Select Trim: Select Engine: Select Clear All This...
Share:
Compatibility
To confirm that this part fits your vehicle, please enter your vehicle's details below.- Year:
Select
- Make:
Select
- Model:
Select
- Submodel:
Select
- Trim:
Select
- Engine:
Select
- Clear All
This part is compatible with 0 vehicle(s).
Show all compatible vehicles
This part is compatible with
1 vehicle(s) matching
This part is not compatible with
Recent searches
- Year
- Make
- Model
- Submodel
- Trim
- Engine
Description:
This is a commonly used LED module, which uses F5-red and green common cathode mist LED components. control
When controlling, we need to connect the module R G to the PWM port of the MCU and the GND ground wire. We pass
By adjusting the two PWM values, the ratio of red light to green light displayed by the LED element is controlled to control
Two-color LED displays different colors.
This module is compatible with various MCU control boards, such as MCU. Module contains 2
kind of interface, you choose. One is the anti-reverse insertion white terminal with a pitch of 2.54mm.
we can use the module's own wire to connect to the microcontroller. To facilitate wiring, we also s
pecially designed an extension that is fully compatible with this module and UNO R3 microcontroller
board. The other is a pin header with a pitch of 2.54mm, using male-to-female DuPont cable, which can be straight c
onnected to the microcontroller.
Specification:
Working voltage: DC 3.3-5V
Interface: Anti-reverse interface ,PIN interface
Hole size: 3mm in diameter
Wire length: 200mm
Control signal: digital signal
Light color: Warn
light
Size:34*22*12mm
Weight: 2.7g
Package included:
1 x LED Module
1 x 3P line
