Description:

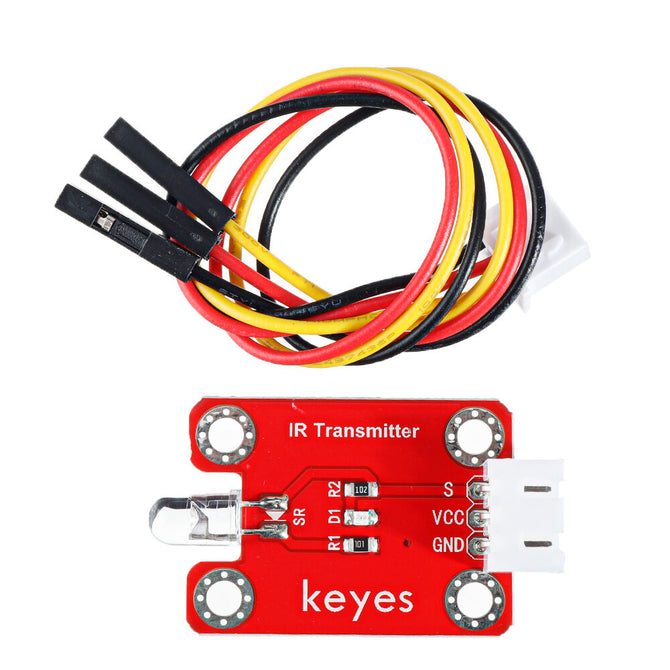

This is a commonly used infrared emission sensor, mainly using infrared emission tube. it is a
diode that emits infrared light of a specific wavelength. We can connect the sensor to
the single-chip computer, using programming, a 38KHZ modulation signal is transmitted to the sensor, which can adapt to the market v
arious infrared receiving heads on the surface so that the infrared receiving sensor can receive, so as to achieve i
nfrared wireless communication. The sensor comes with 4 positioning holes, which is convenient for you to fix the sensor on it o
ther equipment.
This module is compatible with various MCU control boards, such as MCU. Module contains 2 k
ind of
interface, you choose. One is the anti-reverse insertion white terminal with a pitch of 2.54mm,
we can use the module's own wire to connect to the microcontroller. To facilitate wiring, we also s
pecially designed an extension that is fully compatible with this module and UNO R3 microcontroller
board.
The other is a pin header with a pitch of 2.54mm, using male-to-female DuPont cable, which can be straight c
onnected to the microcontroller.
Specification:
Working voltage: DC 3.3V-5V
Interface: Anti-reverse interface
Hole size: 3mm in diameter
Wire length: 200mm
Control signal: digital signal
Wavelength: 940nm
Infrared emission distance: MAX. 5m
Size: 38*22*9mm
Weight: 2.5g
Package included:
1 x Infrared Emission Sensor
1 x 3P line
(the other items are not includes)
