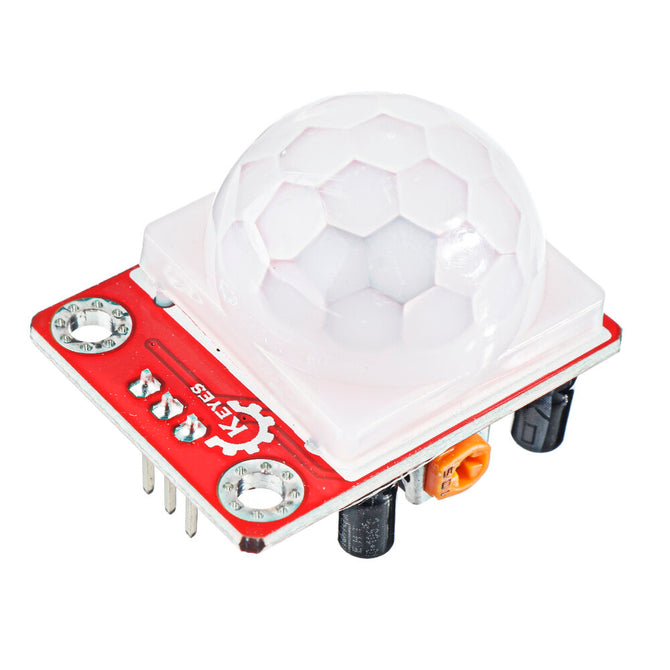

Keyes Brick Human Body Infrared Pyroelectric Sensor(Pad hole) with Pin Header Module Digital Signal wholesale bulk price
US$ 6.99
: In stock
:
Compatibility To confirm that this part fits your vehicle, please enter your vehicle's details below. Year: Select Make: Select Model: Select Submodel: Select Trim: Select Engine: Select Clear All This...
Share:
Compatibility
To confirm that this part fits your vehicle, please enter your vehicle's details below.- Year:
Select
- Make:
Select
- Model:
Select
- Submodel:
Select
- Trim:
Select
- Engine:
Select
- Clear All
This part is compatible with 0 vehicle(s).
Show all compatible vehicles
This part is compatible with
1 vehicle(s) matching
This part is not compatible with
Recent searches
- Year
- Make
- Model
- Submodel
- Trim
- Engine
Description:
This module is compatible with various MCU control boards, such as MCU. Module contains 2
kind of interface for you . One is the anti-reverse insertion white terminal with a pitch of 2.54mm,
we can use the module's own wire to connect to the microcontroller. To facilitate wiring, we also s
pecially designed an extension that is fully compatible with this module and UNO R3 microcontroller
board. The other is a pin header with a pitch of 2.54mm, using male-to-female DuPont cable, which can be straight c
onnected to the microcontroller.
Specification:
Working voltage: DC 5V-15V
Quiescent current: <20uA
Interface: Anti-reverse interface PIN interface
Hole size: 3mm in diameter
Trigger mode: L can not be triggered repeatedly / H can be triggered repeatedly
Maximum detection distance: 7m
Sensing angle: <100 degree cone angle
Wire length: 200mm
Control signal: digital signal
Light color: warn light
Size:37*26*25mm
Weight: 6.8g
Package included:
1 x Human Body Infrared Pyroelectric Sensor
(the other items are not includes)
