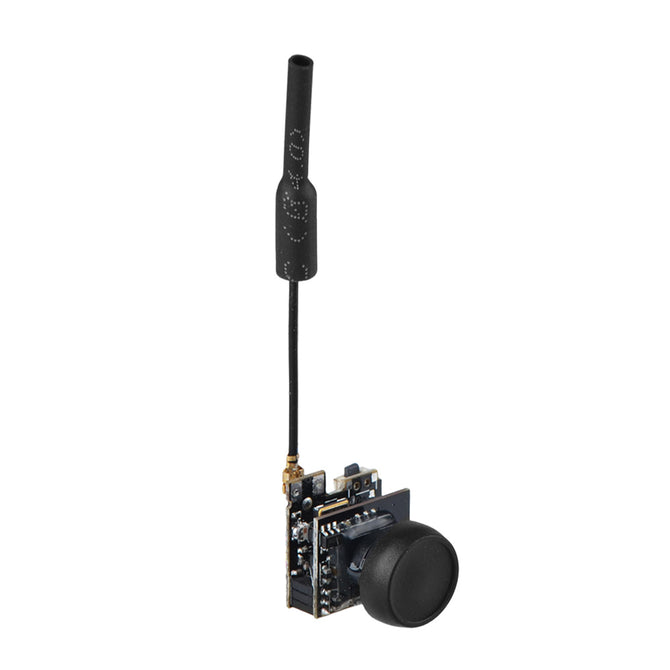

JMT 5.8G 25MW 40CH 800TVL Transmitter LST-S2 FPV Camera 3.6g FPV AIO Micro Camera Parts

JMT 5.8G 25MW 40CH 800TVL Transmitter LST-S2 FPV Camera 3.6g FPV AIO Micro Camera Parts

US$ 15.09 US$ 16.86

: In stock

: 617160

LST-S2 Product Description:FPV transmission and transmission machineSensor: 1/4" CMOSLens: M8 800 TVL lensAngle: 150° horizontal viewing angle and 170° viewing angleFormat: NTSC / PAL (switchable)Power consumption: 380mA@ 3.7 vVoltage: 3.6...
LST-S2 Product Description:
FPV transmission and transmission machine
Sensor: 1/4" CMOS
Lens: M8 800 TVL lens
Angle: 150° horizontal viewing angle and 170° viewing angle
Format: NTSC / PAL (switchable)
Power consumption: 380mA@ 3.7 v
Voltage: 3.6 - -5.5 v
Lens Mirror Diameter: 2.1mm FOV 150° (horizontal)
Video transmitter
Support video formats: NTSC / PAL
Output impedance: 75 ohms
Output signal strength: 23 ~ 24 dbm
Output power: 25 mw
Wireless channel: 40 ch
Operating voltage: 3.6 v ~ 5.5 v
Current: 100mA
Audio carrier: 6.5 mhz
The function of the button
Short press (1 second): Switch channels 1 - 8
Long press (1.5 seconds): Switching band A-B-E-F-R
Long press (3 seconds): Switch NTSC / PAL system
NTSC or PAL (Blue LED = NTSC; Blue LED = PAL)
main body
Weight: 3.6g
Size: 17 x13x14.5mm (without antenna)
Features:
Figure transmission one machine, ultra-small size, ultra-light weight.
Horizontal viewing angle is 150° Angle of inclination 170°
40 channels combined with 5 frequency bands and 8 frequency bands
Color black
Model 5.8G 25MW 40CH 800TVL Transmitter LST-S2 FPV
Material Compound material
Quantity 1 set
Compatible Model RC Racing Drone
Packing List 1 X LST-S2 FPV Camera
1 X Wire
1 X User Manual

Dimensions: 0.67 in x 0.51 in x 0.57 in (1.7 cm x 1.3 cm x 1.4 cm)
Weight: 0.13 oz (4 g)
