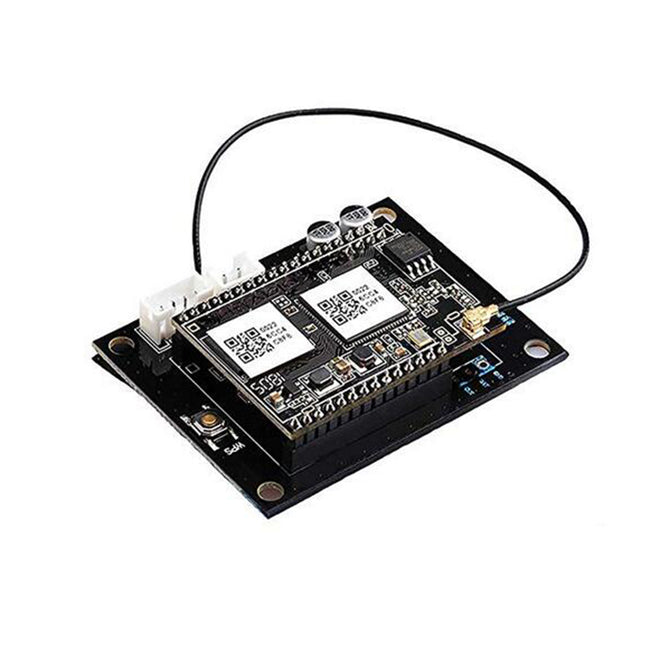

JEDX Wi-Fi Wireless Audio Music Receiver Moudle

Introduction:
Up2Stream kit is a multiroom audio receiver DIY module which you can integrate it easily into
your old active speakers or amplifiers,making them into WiFi speaker or WiFi amplifiers with
airplay ,dlna,spotify connect features . Besides that ,it also provide a lot of other nice features.
Here are some videos showing what is up2stream and how to use it making an old speaker into WiFi speaker .
Unboxing I Up2Stream Multi-Room Wireless Audio Receiver DIY Module
WiFi connectivity
Multiroom
IEEE 802.11 b/g/n
AirPlay and DLNA
Multiple sources: Spotify, Tidal, TuneIn, iHeartRadio, Napster and songs from local storage
24bit/192KHz
PIN connectors make easy installation
Streaming Protocols
IEEE 802.11 b/g/n WiFi standard allows it to achieve stable WiFi transmission to ensure stable audio signal reception.
Compatible with AirPlay, DLNA, Spotify Connect and Qplay. You can easily stream the music from your smartphone, Mac book, Pad or computer.
Applications
Download the "AllStream" application from Apple Store for iOS devices and Google Play for Android devices.
Easy configuaration, powerful playback
To use the UP2STREAM integrated system, please follow the steps in the manual to download the application and configure the system first.

On the application, you can choose the audio sources from online services or local storage in your smartphone,
Pad or home NAS. You can stream different music to different rooms or group all the UP2STREAM integrated devices
together to stream the same music to all devices to make multiroom mode.You can also create playlist and add songs to
your favorites.

Specifications:
Technical Parameters
Frequency: 20Hz-20KHz
THD: 0.009%
SNR: 89dB
Audio decoding: 24bit/192KHz
WiFi network: IEEE 8.2.11 b/g/n 2.4GHz
Speed(Max): 150Mbps
Audio output: Analog, 4 pins connectors(PIN spacing 2.0mm)
Streaming protocol: Airplay/DLNA/Spotify connect/ Qplay
Multi-room: Yes
Music Format: FLAC/AAC+/ALAC/MP3/APE/WAV
General
Dimensions: 55.21x41.37mm
Power supply: DC 5V-1A, 2 pins connector(PIN spacing 2.0mm)
