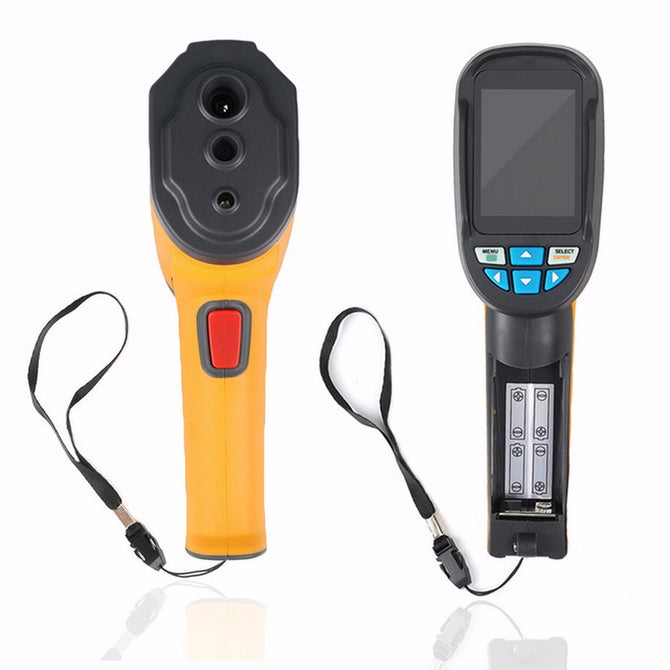

HT-02D Handheld IR Thermal Imaging Camera Digital Display Infrared Image Resolution Thermal Imager Termometro Infravermelho yellow
: In stock
|Max Measuring Temperature: 49¡ãC & Under||Brand Name: JAKEMY|
|Style: Handheld||Display Size: 2.0 - 3.9 Inches|
|Usage: Outdoor||Power Type: AA Battery|
|Display Type: Digital||Theory: Other|
Thermal imaging camera combines the functions of surface temperature and real-time thermal imaging.
Thermal imaging camera can turn thermal image into visional image, quickly find out the problem area.
The infrared imaging device is professional, precision and efficient.
Infrared thermal imager that can blend the visible and infrared images.
2.4 inches full angle high resolution color screen, easy to see the screen.
Resolution of infrared image/visible image is 32x32(1024 pixels)/0.3 mega pixels.
View options is 5 kinds of full infrared to the full visual, mixing visible and infrared.
Fits for car engine overhaul, transformer room line maintenance, air conditioner repair, etc.
Handheld thermal imaging camera is widely used in the electric power manufacturing industry, car industry, medical, transport, agriculture etc.
Product size: 212*95*62mm.
Display: 2.4 inches full angle high resolution color screen.
Infrared image resolution: 32x32(1024 pixels).
Visible image resolution: 0.3 mega pixels.
Field angle/minimum focal length: 33x33/0.5m.
Thermal sensitivity: 0.15¡ãC.
Temperature test Range: (-20¡ãC ~ +300¡ãC).
Test measurement accuracy: +/-2% or +/-2¡ãC(+/-2% or -4¡ãF).
Emissivity: adjustable 0.1-1.0.
Image capture frequency: 6Hz.
Wavelength Range: 8-11.5um.
Focal length: fixed focal length.
Palette: iron red, rainbow, rainbow high contrast, gray(white glow), gray(black glow).
View options: 5 kinds of full infrared to the full visual, mixing visible and infrared.
Memory card: small SD card.
File format: bmp.
Automatic shutdown time: 12 minutes.
Operating temperature: -5¡ãC to +40¡ãC.
Storage temperature: -20¡ãC to +50¡ãC.
Relative temperature: 10%RH to 80%RH.
Battery: 4xAA battery(not included).
Battery Life: 6 Hours.
Please take out the battery if the instrument is not used for a long time.
Do not use the instrument in explosive, flammable, damp or corrosive environment.
There might be a slight errors due to different hand measurement.
1 * thermal imaging camera(battery not included).
1 * hanging rope.
1 * packing bag.
1 * user manual.
|Dimensions & Weight|
|Dimensions||0.39 in x 0.39 in x 0.39 in (1 cm x 1 cm x 1 cm)|
|Weight||24.69 oz (700 g)|
