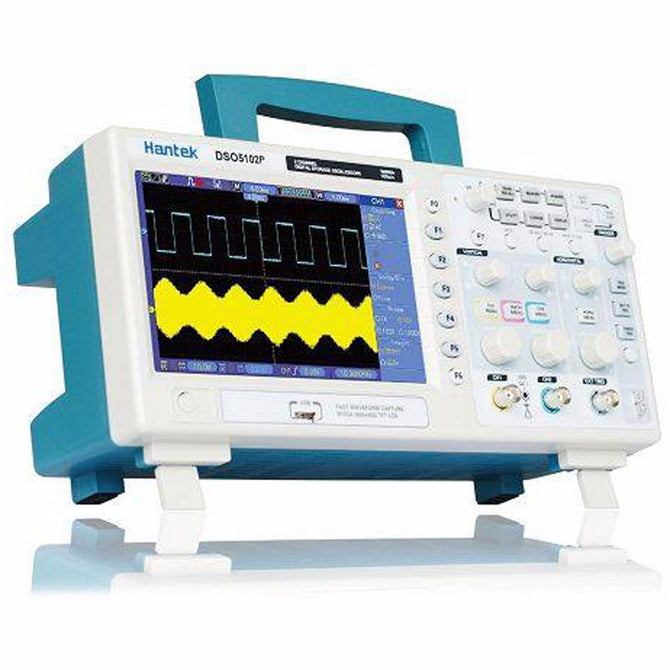

Hantek DSO5102P Digital Oscilloscope 100MHz 2 Channels 1GSa/s 7'' TFT LCD Record Length 40K USB AC110-220V DSO5102P

Hantek DSO5102P Specifications

• 100MHz bandwidth
• 1GSa/s Real Time sample rate
• Large (7.0-inch) color display, WVGA(800x480)
• Record length up to 40K
• Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
• USB host and device connectivity, standard (note: USB port is NOT intended to be used to recharge cell phones & other usb charged devices. )
• Multiple automatic measurements
• Four math functions, including FFTs standard
• Provides software for PC real-time analysis
• Acquisition modes: normal, peak detect, average
• Inputs coupling: AC, DC, GND
• Inputs impedance: 1M¦¸¡À2% ¡¬ 20pF¡À3pF
• Probe attenuation: 1X, 10X
• Supported Probe Attenuation Factor: 1X, 10X, 100X, 1000X
• Maximum input voltage: CAT I and CAT II: 300VRMS (10¡Á), Installation Category CAT III: 150VRMS (1¡Á) Installation Category II: derate at 20dB/decade above 100kHz to 13V peak AC at 3MHz* and above. For non-sinusoidal waveforms, peak value must be less than 450V. Excursion above 300V should be of less than 100ms duration. RMS signal level including all DC components removed through AC coupling must be limited to 300V. If these values are exceeded, damage to the oscilloscope may occur.
• Sample rate range: 500MS/s--1GS/s
• Waveform interpolation: (sin x)/x
• Sample rate and delay time accuracy: ¡À50ppm(at over any ¡Ý1ms time interval)
• Position range: 20ns/div to 80us/div; (-8div x s/div) to 40ms; 200us/div to 40s/div; (-8div x s/div) to 400s
• Rise time at BNC: 3.5ns
• Math: +, -, *, /, FFT
• FFT windows: Hanning, Flatop, Rectamgular, Bartlett, Blackman, 1024 sample point
• Bandwidth limit: 20MHz
• Low frequency response: (-3db) >¡Ü10Hz at BNC
• DC gain accuracy: ¡À3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ¡À4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
• DC measurement accuracy: When vertical displacement is zero, and N ¡Ý16:¡À (3% ¡Á reading + 0.1div + 1mV) only 10mV/div or greater is selected. When vertical displacement is not zero, and N¡Ý16: ¡À [3% ¡Á (reading + vertical position) + 1% of vertical position + 0.2div]; Add 2mV for settings from 2mV/div to 200mV/div; add 50mV for settings from 200mV/div to 5V/div
• Trigger types: Edge, Video, Pulse, Slope, Over time, Alternative
• Trigger source: CH1, CH2, EXT, EXT/5, AC Line
• Trigger modes: Auto, Normal, Single
• Coupling type: DC, AC, Noise Reject, HF Reject, LF Reject
• Holdoff range: 100ns ~ 10s
• Readout resolution: 6 digits
• Accuracy (typical):¡À30ppm (including all frequency reference errors and ¡À1 count errors)
• Frequency range: AC coupled, from 4Hz minimum to rated bandwidth
• Output voltage: About 5Vpp into ¡Ý1M¦¸ load
• Size: 385mm x 200mm x 245mm
• Weight: 2.08kg, 4.5 lbs
