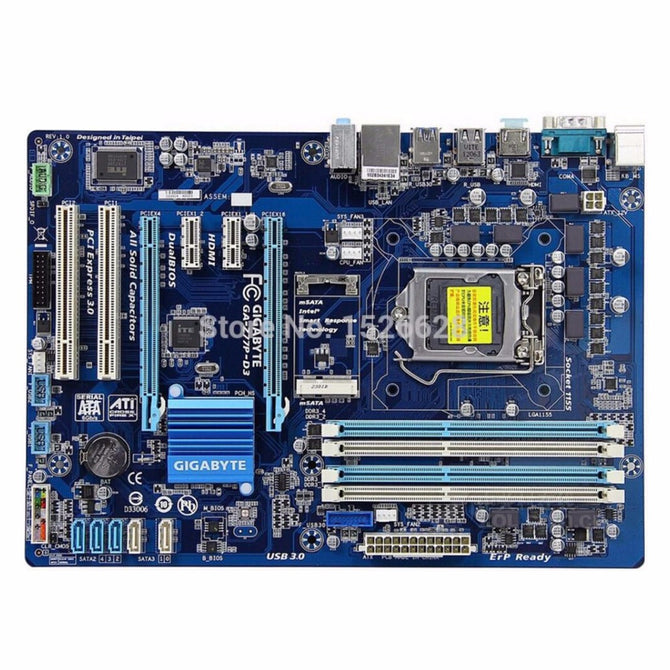

Gigabyte Original Computer Motherboard for GA-Z77P-D3 DDR3 LGA1155 Boards Z77P-D3 32GB Z77 Desktop Motherboard BLUE

Motherboard chipset
    Integrated chip card / card
    Chip maker Intel
    Main Chipset Intel Z77
    Chipset description using Intel Z77 chipset
    Audio chip integrated Realtek ALC887 8-channel audio chip
    NIC chip onboard Atheros AR8151 Gigabit Ethernet

Processor Specifications
    CPU platform Intel
    CPU type Core i7 / Core i5 / Core i3 / Pentium / Celeron
    CPU socket LGA 1155
    CPU description support Intel 22nm processors
    CPU Support Number 1

Memory Specifications
    Memory type DDR3
    4 ¡Á DDR3 DIMM memory slots
    The maximum memory capacity of 32GB
    Memory description supports dual channel DDR3 2400 (OC) / 1600/1333 / 1066MHz memory

Expansion Slots
    Graphics slot PCI-E 3.0 standard
    PCI-E slot 1 ¡Á PCI-E X16 slot
    1 ¡Á PCI-E X4 slot
    2 ¡Á PCI-E X1 slot
    PCI slot 2 ¡Á PCI slots
    Interface SATA 3 ¡Á SATA II Interface; 2 ¡Á SATA III interfaces

I / O Interface
    8 ¡Á USB2.0 Interface USB interface (built-in 4 +4 backplane); 3 ¡Á USB3.0 interfaces (1 + 2 built-in back)
    HDMI Interface 1 ¡Á HDMI Interface
    PS / 2 interface PS / 2 mouse, PS / 2 keyboard interface
    Parallel port 1 serial port
    Other interfaces 1 ¡Á RJ45 network interface
    audio port

Plate
    Mainboard ATX form factor
    Dimensions 30.5 ¡Á 21.5cm
