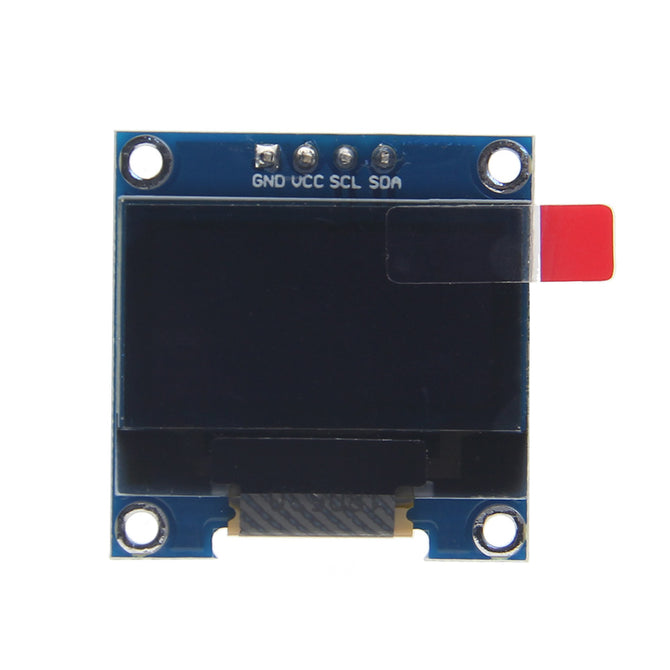

Geekworm 0.96 Inch 128x64 Pixel OLED Shield Display Module for Arduino SMT32 C51 Raspberry PI

Geekworm 0.96 Inch 128x64 Pixel OLED Shield Display Module for Arduino SMT32 C51 Raspberry PI

US$ 4.91 US$ 5.38

: In stock

: 549079

Overview:High resolution: 128x64, high PPILarge viewing angle: more than 160¡ãUltra-low power consumption: normal display 0.06w (far lower than TFT display)Wide voltage supply (3V~5V), compatible with 3.3V and 5V level logic,...
Overview:
High resolution: 128x64, high PPI
Large viewing angle: more than 160¡ã
Ultra-low power consumption: normal display 0.06w (far lower than TFT display)
Wide voltage supply (3V~5V), compatible with 3.3V and 5V level logic, no level conversion chip required
The IIC interface only needs 2 IOs to light up easily
Operating temperature range is industrial grade (-20 ¡ãC ~ 70 ¡ãC)
Provide rich multi-platform sample code
The color of the light is white
Driver chip: SSD1306
Module interface: I2C£¬¢Ù-VCC,¢Ú-GND,¢Û-SCL,¢Ü-SDA
Module size: 27.3x27.8(mm)

Specification:
Screen Size0.96 Inch Scren TypeOLED Control ChipsetSSD1306 Resolution128*64 (Pixel) InterfaceIIC, ¢Ù-GND, ¢Ú-VCC, ¢Û-SCL, ¢Ü-SDA(note as below) Effective display area21.744x10.864(mm) View angle>160¡ã Operating temperature-20¡æ~70¡æ Operating Voltage3.3V / 5V
Note:
¢Ù-GND: OLED power GND¢Ú-VCC: OLED power (3.3V~5V)¢Û-SCL: OLED IIC bus clock signal¢Ü-SDA: OLED IIC bus data signal



General
Brand Geekworm
Model 0.96 inch
Quantity 1 piece
Material PCB+electronic components
Specification
English Manual / Spec No
Download Link http://www.raspberrypiwiki.com/index.php/0.96_inch_OLED_Shield
Dimensions & Weight
Dimensions 1.09 in x 1.09 in x 0.08 in (2.78 cm x 2.78 cm x 0.2 cm)
Weight 0.18 oz (5 g)
Packing List
1 x 0.96" OLED Shield
