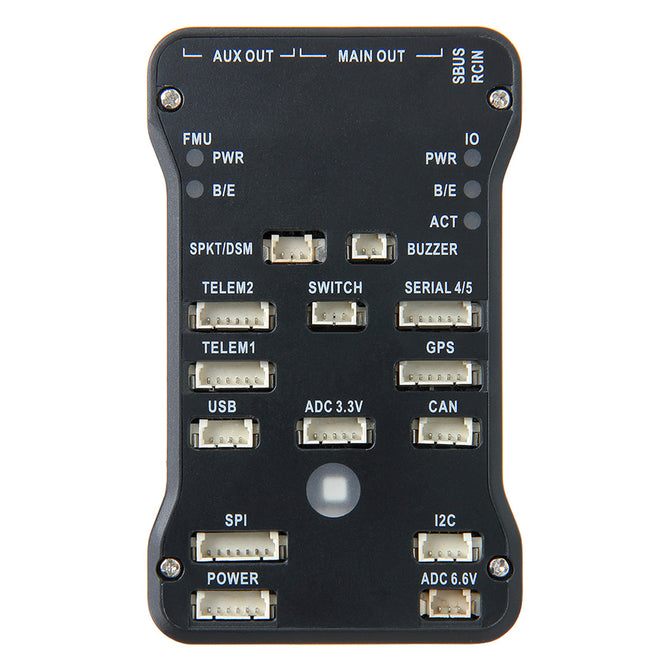

Geeetech Pixhawk V2.4.5 32Bit Flight Controller Board for R/C Airplane

Geeetech Pixhawk V2.4.5 32Bit Flight Controller Board for R/C Airplane

US$ 89.43 US$ 92.63

: In stock

: 382484

Form Color Black Model V2.4.5 Quantity 1 DX.PCM.Model.AttributeModel.Unit Material Plastic + PCB Chipset STM32F427 English Manual / Spec Yes Download Link http://www.geeetech.com/Documents/Pixhawk%20%20user%20maual%20.pdf Other Features 1. Advanced 32 bit ARM Cortex?...
Form Color Black
Model V2.4.5
Quantity 1 DX.PCM.Model.AttributeModel.Unit
Material Plastic + PCB
Chipset STM32F427
English Manual / Spec Yes
Download Link http://www.geeetech.com/Documents/Pixhawk%20%20user%20maual%20.pdf
Other Features 1. Advanced 32 bit ARM Cortex? M4 Processor running NuttX RTOS (68 MHz / 252 MIPS Cortex-M4F) real-time operating system. 2. 14 PWM / servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible) 3. Abundant connectivity options for additional peripherals (UART, I2C, CAN) 4. Integrated backup system for in-flight recovery and manual override with dedicated processor and stand-alone power supply 5. Backup system integrates mixing, providing consistent autopilot and manual override mixing modes 6. Redundant power supply inputs and automatic failover 7. External safety button for easy motor activation 8. Multicolor LED indicator 9. High-power, multi-tone piezo audio indicator 10. Micro-SD card for long-time high-rate logging
Packing List 1 x PIXHAWK
1 x Enclosure for PIXHAWK
