Full Color RGB LED Lattice Screen for Arduino

Overview:

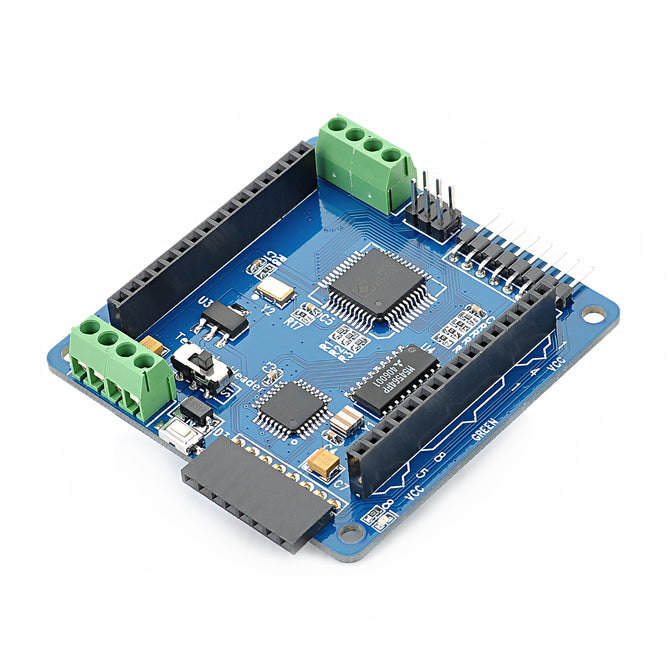

Colorsduino is a magic RGB LED dot-matrix driver compatible with Arduino . Colorsduino pairs the M54564 with a single DM163 constant current driver. By using the DM163, Colorduino gains three 8+6-bit channels of hardware PWM control of the LEDs freeing up the MCU from having to implement it in software. This gives the ATmega328 more CPU bandwidth for performing other tasks. Colorduino is easy to cascade by IIC and Power interface.

Features
8bits colors support with 6bits correction for each color in every dots
Hardware 16MHz PWM support
Without any external circuits, play and shine
Dedicated GPIO and ADC interface
Hardware UART and IIC communication with easy cascading
24 constant current channels of 100mA each
8 super source driver channels of 500mA each

Microcontroller:ATMega328P
Max Frequency :16M
RAM Capacity :2K
FLASH Capacity :32K
External Resources :No
Power Supply: 5V-7V DC(7.5V Max)
I/O Operation Level: 5V
