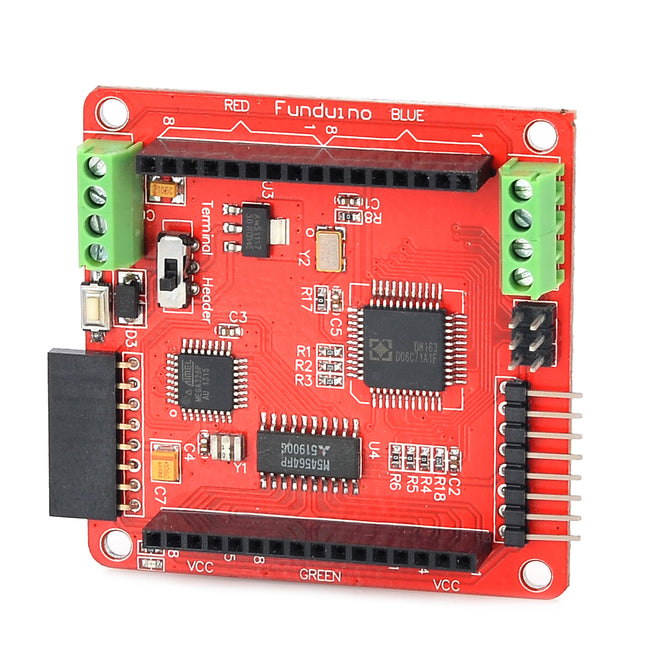

Full Color 8 x 8 LED RGB Matrix Screen Driver Board

US$ 13.98 US$ 18.98

Availability: In stock

SKU: 296126

Brand N/A Model N/A Quantity 1 DX.PCM.Model.AttributeModel.Unit Form Color Red Material FR4 English Manual / Spec No Other Features Full-color RGB Dot matrix driver board is a Arduino Dashboard module...

Add to wishlist

Brand	N/A
Model	N/A
Quantity	1 DX.PCM.Model.AttributeModel.Unit
Form Color	Red
Material	FR4
English Manual / Spec	No
Other Features	Full-color RGB Dot matrix driver board is a Arduino Dashboard module which specialized designed for RGB full-color dot matrix, This module not only can drive the RGB Dot matrix independently but also can be used as Arduino Control panel. It is very convenient and practical, on-board chip is ATmega 328Chips, the board also raise above ISP Interface, you can programmer bootloader to 328 Chip free. Drawback unlike other Arduino Uno, there is no corresponding leads I / 0 Out of the mouth, but leads to a number of IIC Interface and power supply interface; 6Bit color supported; Support hardware 16MHz PWM; Without any additional circuitry; Dedicated GPIO and ADC interface; Support hardware URAT and IIC communication; 24 Channel constant current channel current up to each channel 1100mA; 8 channel constant current source drive current up to each channel 500mA; Power supply: +5 V to +5.3 V; Operating current: 300mA; Operating temperature range: -10'C~+50'C
Packing List	1 x Module
